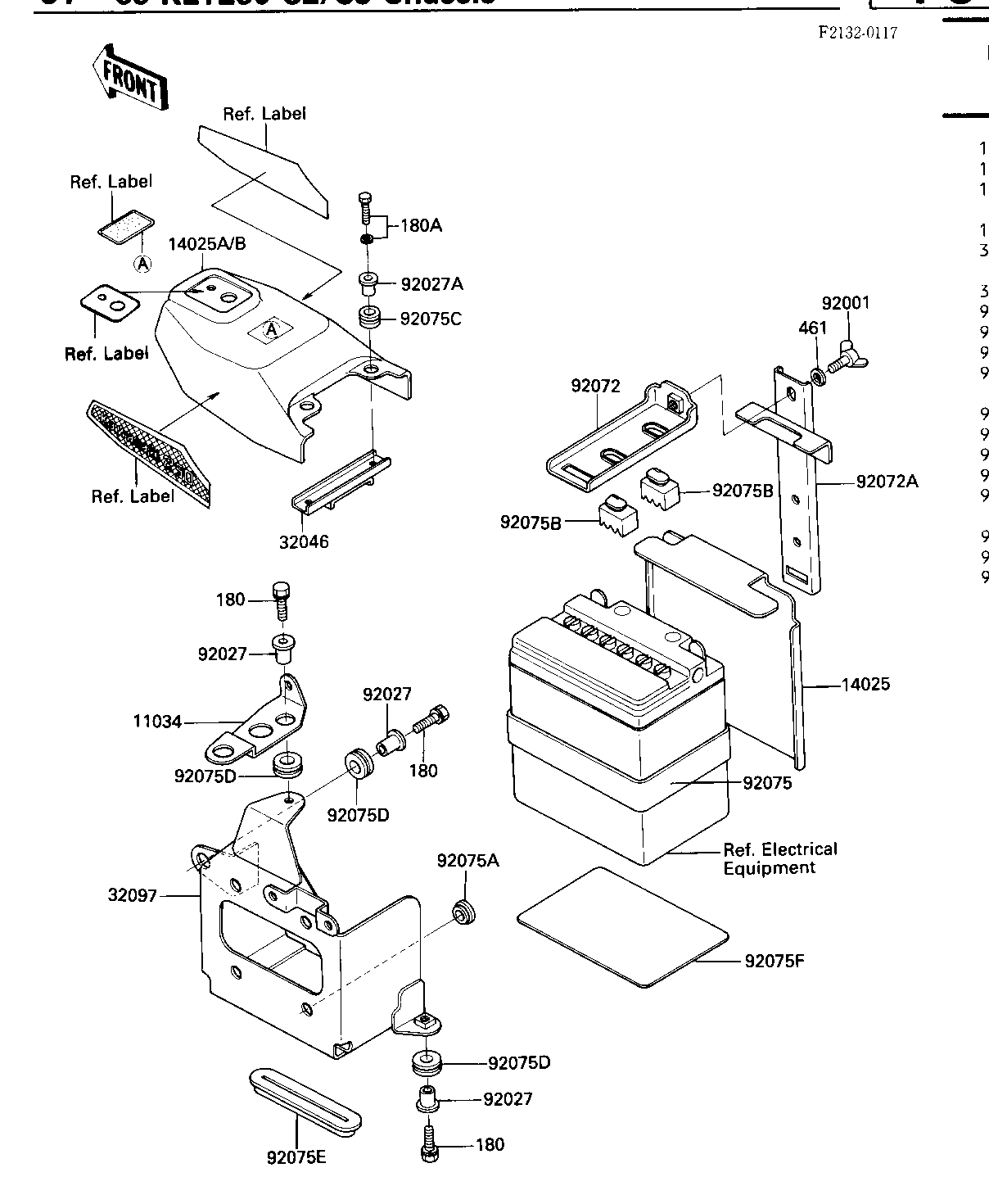

1984 Prairie - BATTERY CASE ('84-'85 C2/C3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,BATTERY CASE | 11034 | 11034-4213 | 1 | ||
| COVER | 14025 | 14025-4007 | 1 | ||
| COVER,FR,BLACK | 14025A | 14025-4015-6D | 1 | US | |
| COVER,FR,RED | 14025B | 14025-4015-8S | 1 | ||
| BRACKET-SEAT | 32046 | 32046-4012 | 1 | ||
| CASE-BATTERY | 32097 | 32097-1104 | 1 | ||
| BOLT,CLNR ELEMENT | 92001 | 92003-199 | 1 | ||
| COLLAR | 92027 | 92027-1045 | 3 | ||
| COLLAR | 92027A | 92027-194 | 2 | ||
| BAND | 92072 | 92072-1159 | 1 | ||
| BAND,BATTERY | 92072A | 92072-1165 | 1 | ||
| MAT-BATTERY SIDE | 92075 | 32103-023 | 1 | ||
| DAMPER RUBBER | 92075A | 92075-078 | 6 | ||
| DAMPER,SEAT | 92075B | 92075-1007 | 2 | ||
| DAMPER RUBBER | 92075C | 92075-112 | 2 | ||
| DAMPER RUBBER | 92075D | 92075-277 | 3 | ||
| DAMPER RUBBER | 92075E | 92075-280 | 1 | ||
| DAMPER,BATTRY CASE | 92075F | 92075-4019 | 1 | ||
| BOLT-UPSET-WS | 180 | 180B0620 | 3 | ||
| BOLT-UPSET-WS,6X25 | 180A | 180B0625 | 2 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 1 |
