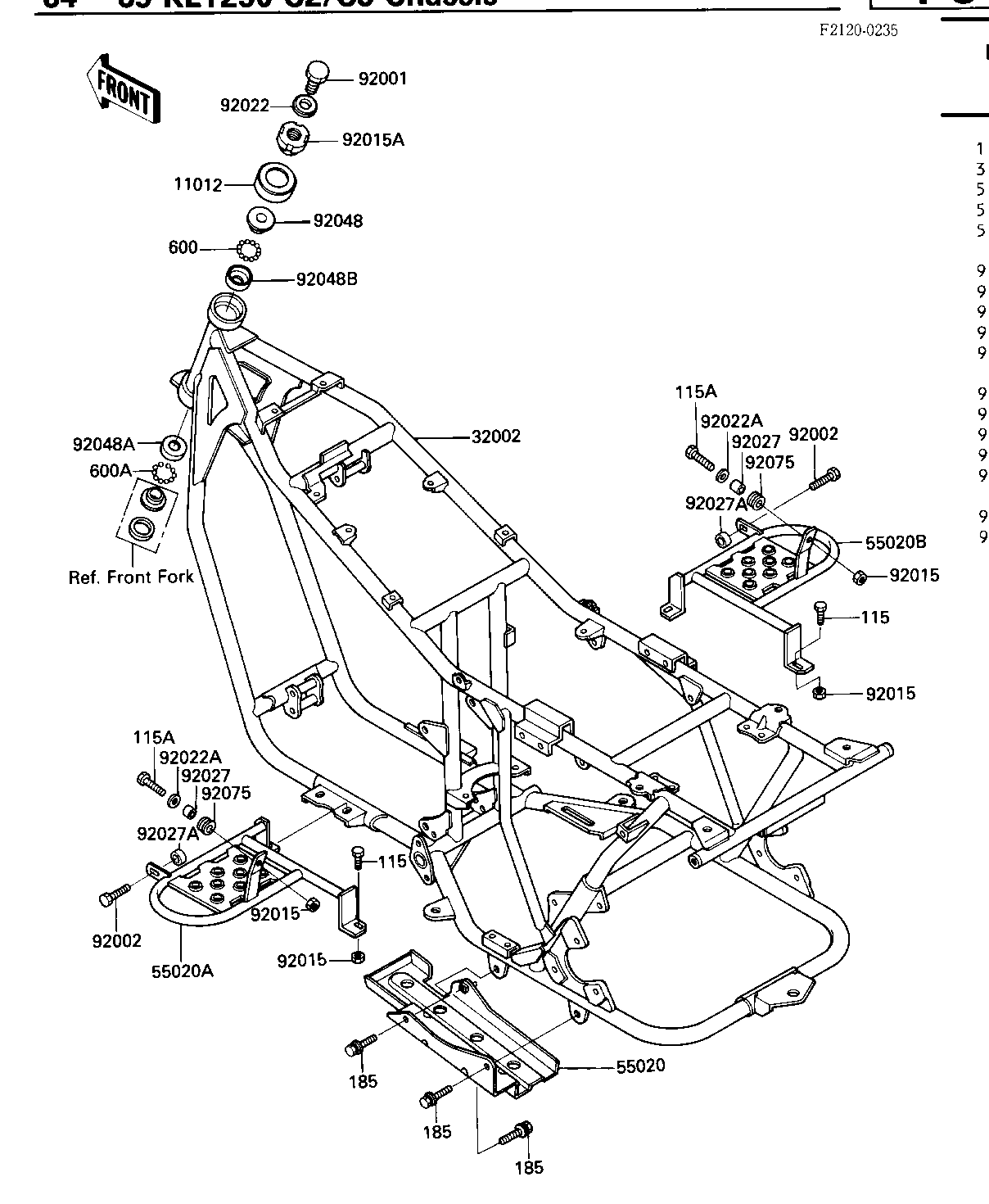

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,STEERING STEM | 11012 | 46098-012 | 1 | ||
| FRAME | 32002 | 32002-4018 | 1 | ||
| GUARD,CHAIN CASE | 55020 | 55020-1161 | 1 | ||
| GUARD,FOOTREST,LH | 55020A | 55020-4039 | 1 | ||
| GUARD,FOOTREST,RH | 55020B | 55020-4040 | 1 | ||
| BOLT,STEERING STEM | 92001 | 44041-072 | 1 | ||
| BOLT,10X25 | 92002 | 92002-1191 | 2 | ||
| NUT,LOCK,8MM | 92015 | 92015-1124 | 4 | ||
| NUT,STEERING STEM | 92015A | 92015-4007 | 1 | ||
| WASHER,STEERING STEM | 92022 | 44043-056 | 1 | ||
| WASHER,8.5X20X1.6 | 92022A | 92022-1561 | 2 | ||
| COLLAR | 92027 | 92027-280 | 2 | ||
| COLLAR,STEP-HOLDER | 92027A | 92027-4036 | 2 | ||
| CONE,STRG STM BRG,UP | 92048 | 92047-014 | 1 | ||
| RACE STEERING BEARING | 92048A | 92048-005 | 1 | ||
| RACE,STRG STM BEARING | 92048B | 92048-009 | 1 | ||
| DAMPER,SADDLEBAG | 92075 | 92075-303 | 2 | ||
| BOLT-SMALL-UPSET,8X16 | 115 | 115G0816 | 2 | ||
| BOLT-SMALL-UPSET 8X25 | 115A | 115G0825 | 2 | ||
| BOLT-UPSET-WSP-SMALL | 185 | 185B0820 | 3 | ||
| BALL STEEL 3/16' | 600 | 600A0600 | 23 | ||
| BALL STEEL 1/4' | 600A | 600A0800 | 19 |
| CAP,STEERING STEM | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME | |
| REF # | 32002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,CHAIN CASE | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,FOOTREST,LH | |
| REF # | 55020A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,FOOTREST,RH | |
| REF # | 55020B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,STEERING STEM | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X25 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,STEERING STEM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,STEERING STEM | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.5X20X1.6 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,STEP-HOLDER | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CONE,STRG STM BRG,UP | |
| REF # | 92048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RACE STEERING BEARING | |
| REF # | 92048A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RACE,STRG STM BEARING | |
| REF # | 92048B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,SADDLEBAG | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-SMALL-UPSET,8X16 | |
| REF # | 115 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-SMALL-UPSET 8X25 | |
| REF # | 115A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WSP-SMALL | |
| REF # | 185 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BALL STEEL 3/16' | |
| REF # | 600 |
|---|---|
| PART NUMBER | |
| QUANTITY | 23 |
| DESTINATION | |
| REMARKS | |
| BALL STEEL 1/4' | |
| REF # | 600A |
|---|---|
| PART NUMBER | |
| QUANTITY | 19 |
| DESTINATION | |
| REMARKS | |
