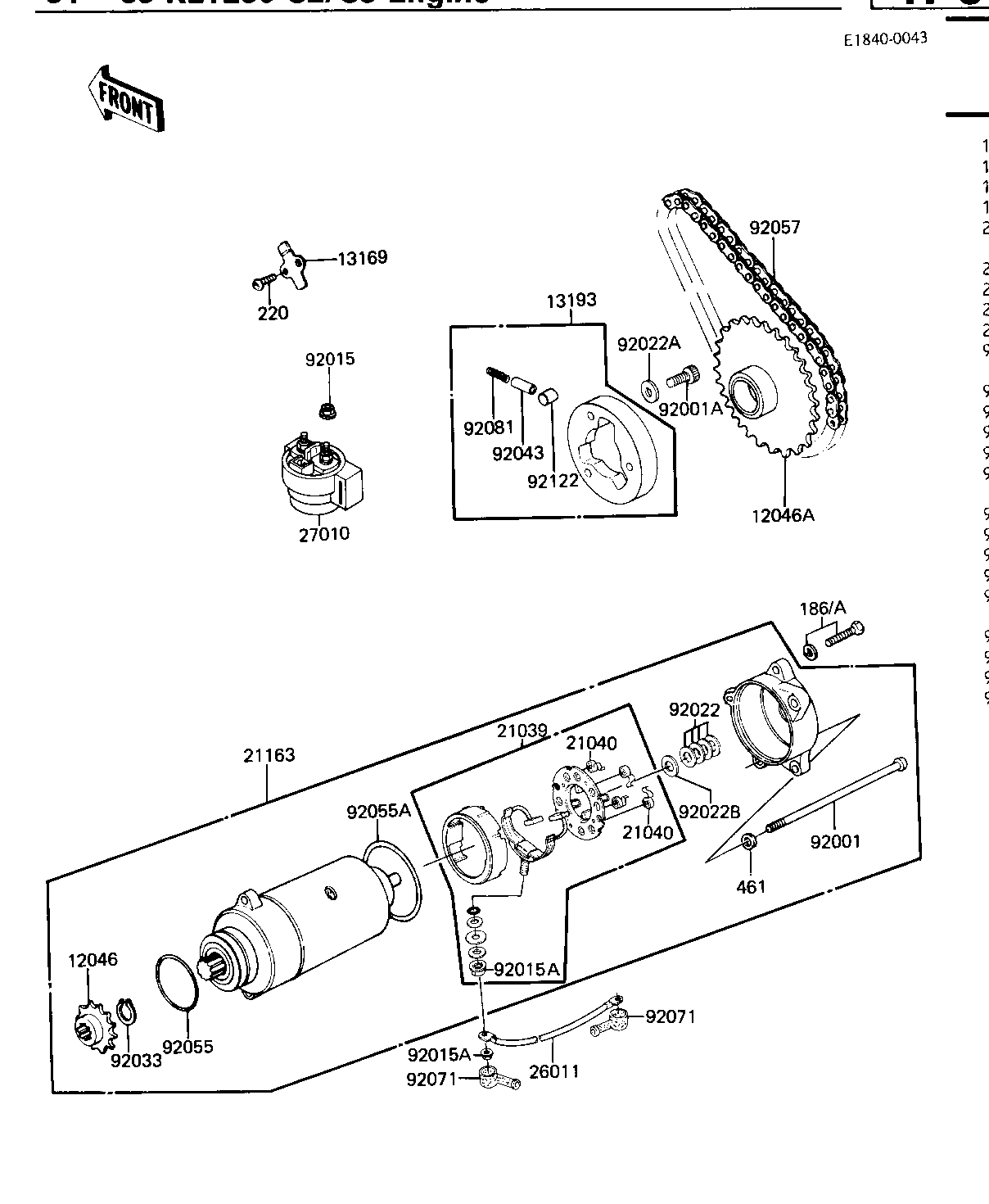

1984 Prairie - STARTER MOTOR STARTER CLUTCH ('84-'85 C2
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPROCKET,STARTER MOTO | 12046 | 12046-1004 | 1 | ||
| SPROCKET,STARTER | 12046A | 12046-1023 | 1 | ||
| PLATE | 13169 | 13169-1010 | 1 | ||
| CLUTCH ASSY,STARTING | 13193 | 13193-1006 | 1 | ||
| BRUSH,CARBON | 21039 | 21039-1053 | 1 | ||
| SPRING-BRUSH | 21040 | 21040-1003 | 4 | ||
| STARTER-ELECTRIC | 21163 | 21163-1036 | 1 | ||
| WIRE-LEAD,STARTER MOT | 26011 | 26011-1201 | 1 | ||
| SWITCH,STARTER | 27010 | 27010-1314 | 1 | ||
| SCREW,PAN HEAD,6X130 | 92001 | 92001-1046 | 2 | ||
| BOLT | 92001A | 120P0816 | 3 | ||
| NUT-6MM | 92015 | 92015-1078 | 2 | ||
| NUT-6MM | 92015A | 92015-1078 | 2 | ||
| WASHER,THRUST,0.2T | 92022 | 21025-011 | AR | ||
| WASHER,PLAIN | 92022A | 92022-1108 | 3 | ||
| WASHER,THRUST,0.8T | 92022B | 92022-1132 | 1 | ||
| CIRCLIP,13M/M | 92033 | 92033-037 | 1 | ||
| PIN | 92043 | 92043-087 | 3 | ||
| "0" RING,42.8MM | 92055 | 21027-005 | 1 | ||
| "0" RING,STARTER MOTR | 92055A | 92055-1086 | 1 | ||
| CHAIN,DYNAMO | 92057 | 92057-1009 | 1 | ||
| GROMMET,CORD | 92071 | 21017-017 | 2 | ||
| SPRING | 92081 | 92081-110 | 3 | ||
| PIN | 92122 | 92122-001 | 3 | ||
| BOLT-UPSET-WP | 186 | 186G0625 | 2 | ||
| SCREW PAN HEAD 6X14 | 220 | 220B0614 | 1 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 2 |
| SPROCKET,STARTER MOTO | |
| REF # | 12046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET,STARTER | |
| REF # | 12046A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 13169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLUTCH ASSY,STARTING | |
| REF # | 13193 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRUSH,CARBON | |
| REF # | 21039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING-BRUSH | |
| REF # | 21040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| STARTER-ELECTRIC | |
| REF # | 21163 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,STARTER MOT | |
| REF # | 26011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,STARTER | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,PAN HEAD,6X130 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NUT-6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-6MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,THRUST,0.2T | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER,THRUST,0.8T | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,13M/M | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| "0" RING,42.8MM | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,STARTER MOTR | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAIN,DYNAMO | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET,CORD | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 92122 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WP | |
| REF # | 186 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X14 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
