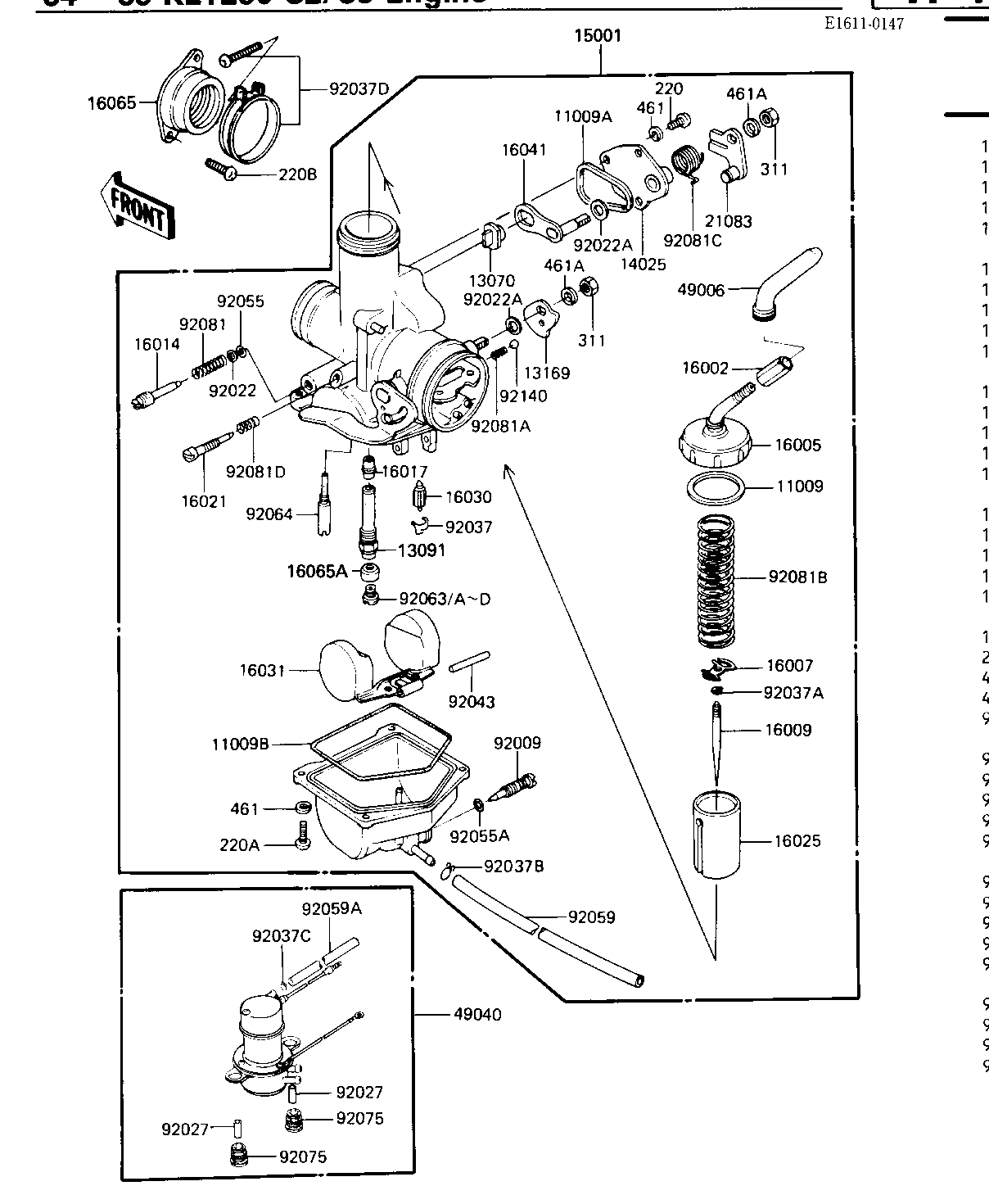

1984 Prairie - CARBURETOR/FUEL PUMP ('84-'85 C2/C3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-MIXING CHAMBER 11009 11009-1278 1
GASKET-FAST IDLE 11009A 11009-1279 1
"O" RING,FLOAT BALL 11009B 16019-024 1
GUIDE-THROTTLE 13070 13070-1060 1
HOLDER,NEEDLE JET 13091 13091-1299 1
PLATE,CHOKE CAM 13169 13169-1811 1
COVER-FAST IDLE 14025 14025-1452 1
CARBURETOR-ASSY 15001 15001-1061 1
ADJUSTER,CABLE 16002 16002-1002 1
CHAMBER-MIXING,TOP 16005 16005-1014 1
SEAT-SPRING,THROTTLE 16007 16007-1049 1
NEEDLE-JET 16009 16009-1104 1
SCREW,PILOT ADJUST 16014 16014-1029 1
NEEDLE JET 16017 16017-1001 1
SCREW-THROTTLE STOP 16021 16021-1037 1
VALVE-THROTTLE,#2 16025 16025-1064 1
FLOAT VALVE 16030 16030-1007 1
FLOAT 16031 16031-1001 1
SHAFT-CARB,FAST IDLE 16041 16041-1026 1
HOLDER-CARBURETOR 16065 16065-1064 1
HOLDER-CARBURETOR 16065A 16065-1075 1
ARM-IDLE PLATE 21083 21083-1013 1
CAP,CABLE ADJUSTER 49006 49006-1007 1
PUMP-FUEL 49040 49040-1006 1
SCREW,DRAIN 92009 92009-1095 1
WASHER,PLAIN 92022 92022-1003 1
WASHER-CHOKE CAM 92022A 92022-1308 2
COLLAR,6X22 92027 92027-1581 2
CLIP,FLOAT VALVE 92037 16044-007 1
CIRCLIP,JET NEEDLE 92037A 92037-1039 1
CLAMP,TUBE,OVERFLOW 92037B 92037-1142 1
CLAMP,FUEL HOSE 92037C 92037-1395 2
CLAMP,CARBURETOR HLDR 92037D 92037-178 1
FLOAT PIN 92043 92043-1002 1
O RING,PILOT ADJ 92055 92055-1002 1
"O" RING,DRAIN SCREW 92055A 92055-1053 1
HOSE,FUEL OVERFLOW 92059 92059-1046 1
TUBE,4.5X8.5X700 92059A 92059-1283 1
MAIN JET,#105 92063 92063-1009 1 (RACING USE ONLY)
JET-MAIN #110 92063A 92063-1114 1
JET-MAIN #108 92063B 92063-1116 1 (RACING USE ONLY)
JET-MAIN #112 92063C 92063-1117 1 (RACING USE ONLY)
JET-MAIN #115 92063D 92063-1118 1 (RACING USE ONLY)
JET-PILOT #42 92064 92064-1048 1
DAMPER,FUEL PUMP 92075 92075-1481 2
SPRING,PIROT ADJ SCRW 92081 92081-1002 1
SPRING 92081A 92081-1249 1
SPRING-THROTTLE VALVE 92081B 92081-1435 1
SPRING-FAST IDLE 92081C 92081-1436 1
SPRING-THROTTLE STOP 92081D 92081-1437 1
BALL-CHOKE CAM 92140 92140-1007 1
SCREW PAN HEAD 4X8 220 220B0408 3
SCREW-PAN-CROS 220A 220B0414 4
SCREW-PAN-CROS 220B 220X0614 2
NUT,5MM 311 311B0500 2
WASHER SPRING 4MM 461 461F0400 7
WASHER SPRING 5MM 461A 461F0500 2
