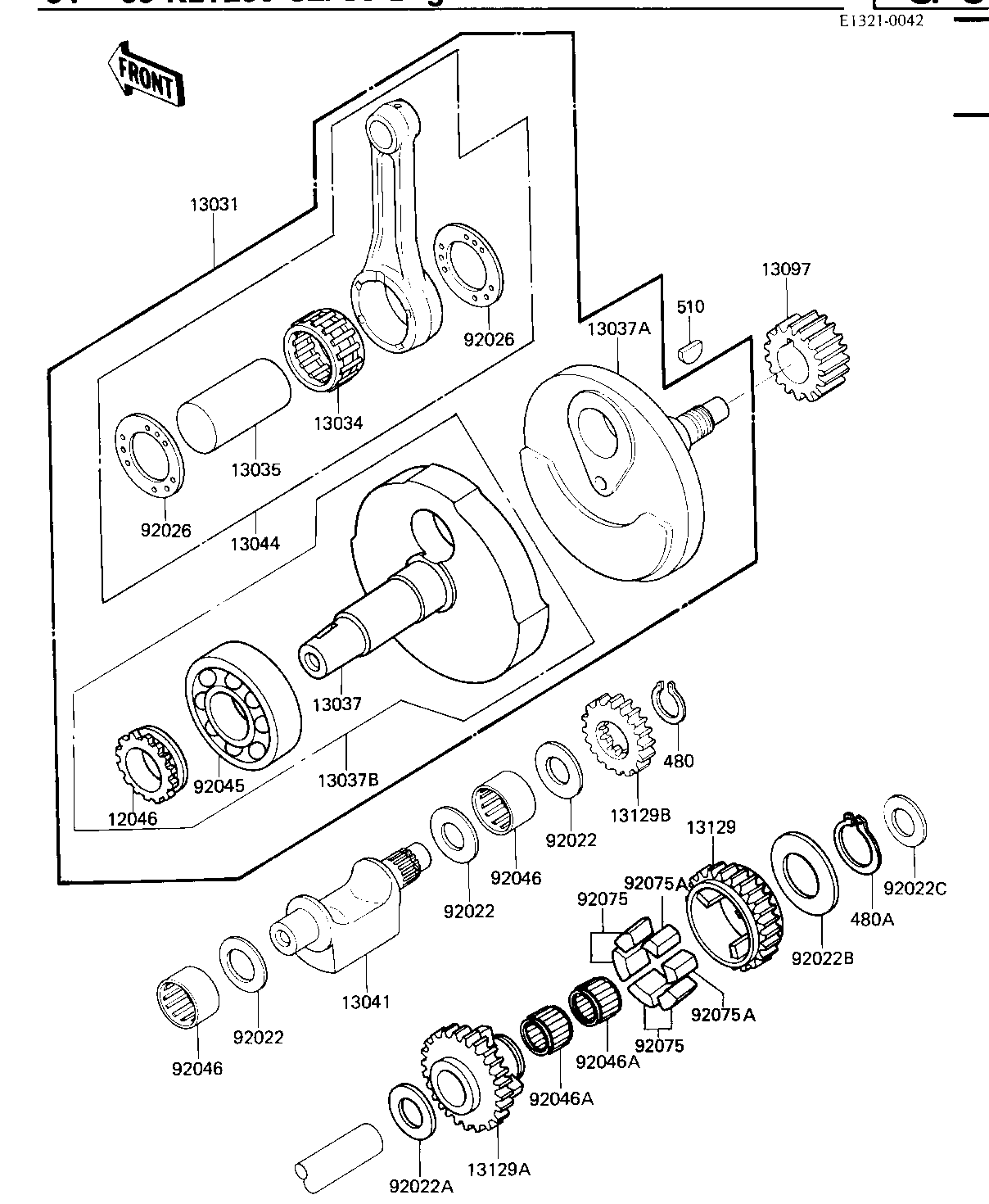

1984 Prairie - CRANKSHAFT/BALANCER ('84-'85 C2/C3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPROCKET,16T | 12046 | 12046-1038 | 1 | ||
| CRANKSHAFT-COMP | 13031 | 13031-1080 | 1 | ||
| BEARING-BIG END | 13034 | 13034-1013 | 1 | ||
| PIN-CRANK | 13035 | 13035-1009 | 1 | ||
| CRANKSHAFT,LH | 13037 | 13037-1150 | 1 | ||
| CRANKSHAFT,RH | 13037A | 13037-1151 | 1 | ||
| CRANKSHAFT,LH | 13037B | 13037-5005 | 1 | ||
| BALANCER | 13041 | 13041-1003 | 1 | ||
| SET-CONNECTING ROD | 13044 | 13044-5026 | 1 | ||
| GEAR-PRIMARY SPUR,21T | 13097 | 13097-1067 | 1 | ||
| GEAR-TRANSMISSION SPU | 13129 | 13129-1364 | 1 | ||
| GEAR-TRANSMISSION SPU | 13139A | 13129-1365 | 1 | ||
| GEAR-TRANSMISSION SPU | 13129B | 13129-1366 | 1 | ||
| WASHER,20X36X1 | 92022 | 92022-1366 | 3 | ||
| WASHER,16X34X1 | 92022A | 92022-1367 | 1 | ||
| WASHER,25.3X44X1 | 92022B | 92022-1390 | 1 | ||
| WASHER,16.3X25X1 | 92022C | 92022-1391 | 1 | ||
| SPACER | 92026 | 92026-1070 | 2 | ||
| BEARING,BALL,#6306 | 92045 | 92045-037 | 1 | ||
| BEARING-NEEDLE,NK20/1 | 92046 | 92046-1183 | 2 | ||
| BEARING-NEEDLE,K16X20 | 92046A | 92046-1053 | 2 | ||
| DAMPER,IDLER GEAR | 92075 | 92075-1595 | 4 | ||
| DAMPER,IDLER GEAR | 92075A | 92075-1596 | 2 | ||
| CIRCLIP, 20MM | 480 | 480J2000 | 1 | ||
| CIRCLIP,25M/M | 480A | 480J2500 | 1 | ||
| WOODRUFF KEY | 510 | 510A5100 | 1 |
| SPROCKET,16T | |
| REF # | 12046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT-COMP | |
| REF # | 13031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BIG END | |
| REF # | 13034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-CRANK | |
| REF # | 13035 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT,LH | |
| REF # | 13037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT,RH | |
| REF # | 13037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT,LH | |
| REF # | 13037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BALANCER | |
| REF # | 13041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SET-CONNECTING ROD | |
| REF # | 13044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-PRIMARY SPUR,21T | |
| REF # | 13097 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-TRANSMISSION SPU | |
| REF # | 13129 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-TRANSMISSION SPU | |
| REF # | 13139A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-TRANSMISSION SPU | |
| REF # | 13129B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,20X36X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER,16X34X1 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,25.3X44X1 | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,16.3X25X1 | |
| REF # | 92022C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING,BALL,#6306 | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,NK20/1 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,K16X20 | |
| REF # | 92046A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,IDLER GEAR | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,IDLER GEAR | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP, 20MM | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,25M/M | |
| REF # | 480A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WOODRUFF KEY | |
| REF # | 510 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
