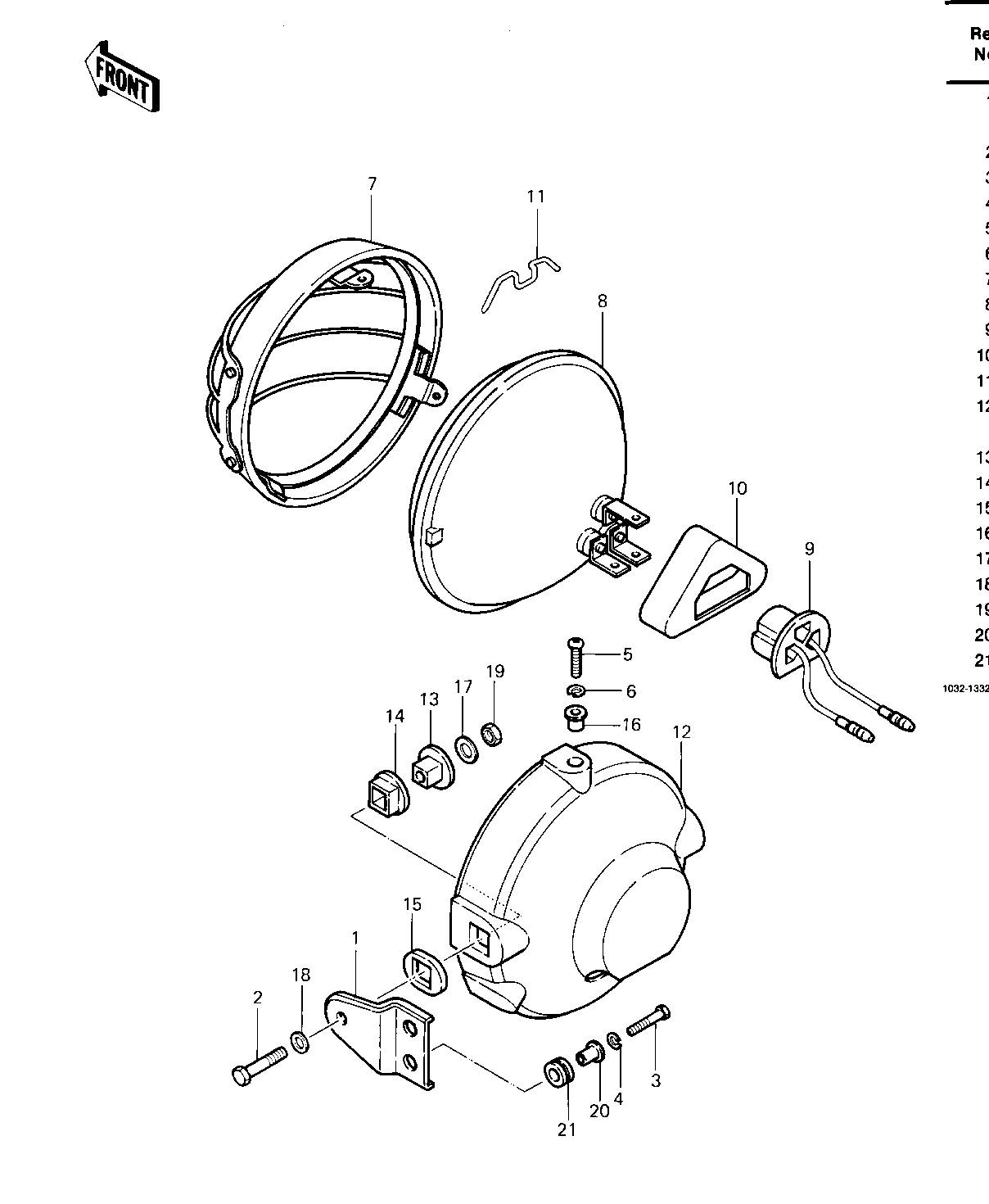

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,HEADLAMP,EBNY | 1 | 11034-4123-8G | 2 | ||
| BRACKET,HEADLAMP,RED | 1 | 11034-4123-8R | 2 | ||
| BOLT-SMALL,8X32 | 2 | 114N0832 | 2 | ||
| BOLT-UPSET,6X20 | 3 | 112G0620 | 4 | ||
| WASHER SPRING 6MM | 4 | 461F0600 | 4 | ||
| SCREW PAN HEAD 5X12 | 5 | 220B0512 | 3 | ||
| WASHER SPRING 5MM | 6 | 461F0500 | 3 | ||
| RIM-LAMP | 7 | 23006-4003 | 1 | ||
| LENS-COMP | 8 | 23007-4002 | 1 | ||
| SOCKET-ASSY | 9 | 23008-1125 | 1 | ||
| COVER,HD LAMP SOCKET | 10 | 23081-001 | 1 | ||
| SPRING,HEAD LAMP LENS | 11 | 92081-4025 | 3 | ||
| BODY-HEADLAMP,EBONY | 12 | 23005-4004-8G | 1 | ||
| BODY-COMP HEADLAMP RD | 12 | 23005-4004-8R | 1 | ||
| COLLAR,HEAD LAMP | 13 | 92027-1105 | 2 | ||
| DAMPER RUBBER,HD LAMP | 14 | 92075-1077 | 2 | ||
| DAMPER RUBBER,HD LAMP | 15 | 92075-1078 | 2 | ||
| WASHER | 16 | 23021-010 | 3 | ||
| WASHER PLAIN 6MM | 17 | 411B0600 | 2 | ||
| WASHER,PLAIN,8MM | 18 | 411D0800 | 2 | ||
| NUT,LOCK,8MM | 19 | 92015-1124 | 2 | ||
| COLLAR | 20 | 92027-1045 | 4 | ||
| DAMPER RUBBER | 21 | 92075-277 | 4 |
