Parts Diagrams |

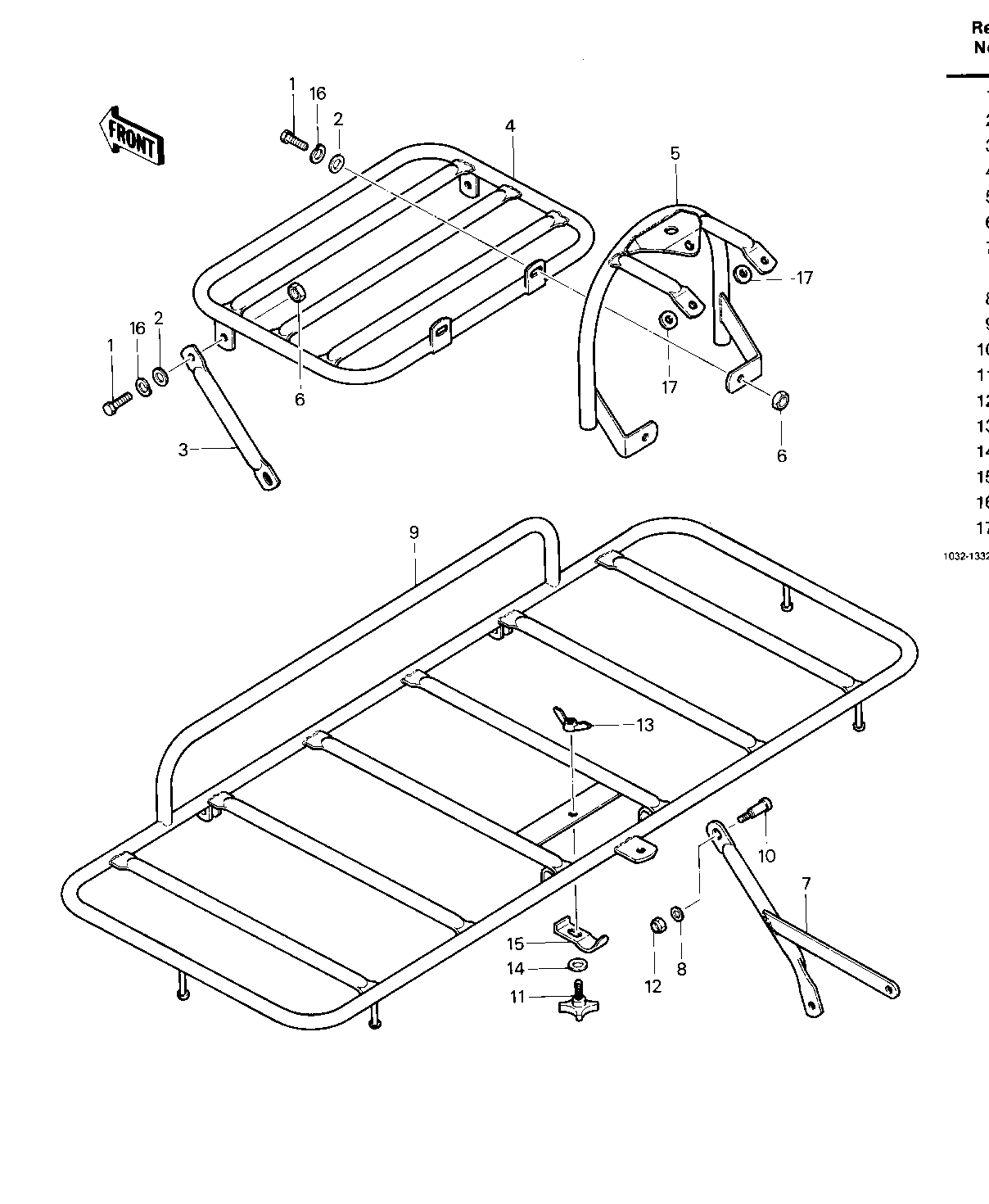

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SMALL-UPSET 8X25 | 1 | 115G0825 | 4 | ||
| WASHER PLAIN 8MM | 2 | 410B0800 | 4 | ||
| ARM | 3 | 21083-4008-8G | 2 | ||
| FRONT CARRIER,BLACK | 4 | 53029-4005-8G | 1 | ||
| GUARD,HEAD LAMP,BLACK | 5 | 55020-4022-8G | 1 | ||
| NUT,LOCK,8MM | 6 | 92015-1124 | 4 | ||
| ARM,LEFT | 7 | 21083-4009-8G | 1 | ||
| ARM,RIGHT | 7 | 21083-4010-8G | 1 | ||
| WASHER PLAIN 8MM | 8 | 411B0800 | 2 | ||
| REAR CARRIER,BLACK | 9 | 53029-4006-8G | 1 | ||
| BOLT | 10 | 92001-4026 | 2 | ||
| BOLT,CARRIER | 11 | 92001-4027 | 1 | ||
| NUT,LOCK,8MM | 12 | 92015-1124 | 2 | ||
| NUT-WING | 13 | 92015-4021 | 1 | ||
| WASHER | 14 | 92022-4032 | 1 | ||
| CLAMP,BLACK | 15 | 92037-4011-8G | 1 | ||
| WASHER SPRING 8MM | 16 | 461F0800 | 4 | ||
| WASHER PLAIN 8MM | 17 | 411B0800 | 2 |
| BOLT-SMALL-UPSET 8X25 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 8MM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| ARM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FRONT CARRIER,BLACK | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,HEAD LAMP,BLACK | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,8MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| ARM,LEFT | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM,RIGHT | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 8MM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| REAR CARRIER,BLACK | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,CARRIER | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,8MM | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-WING | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,BLACK | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 8MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
