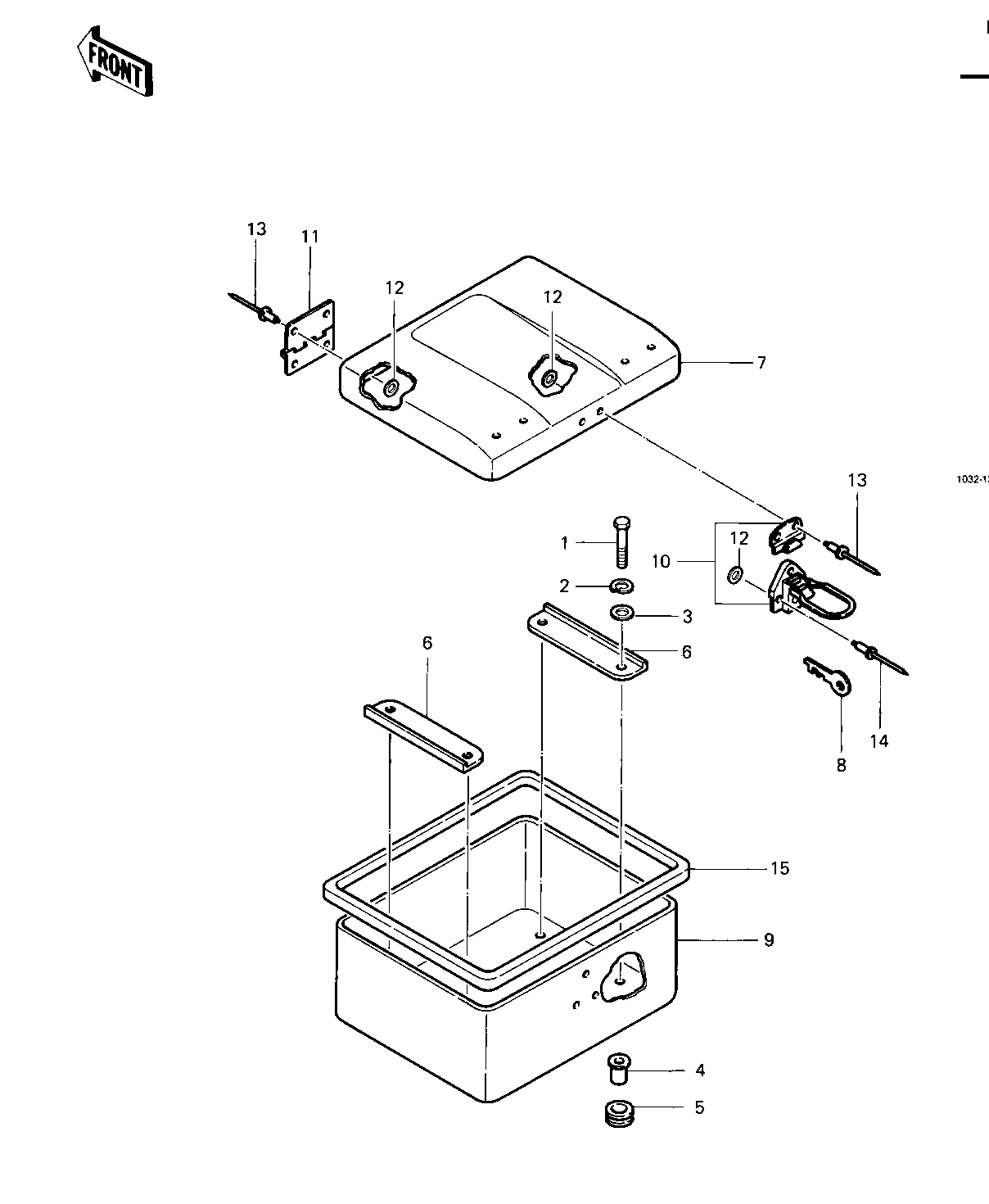

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,8X40 | 1 | 115G0840 | 4 | ||
| WASHER SPRING 8MM | 2 | 461F0800 | 4 | ||
| WASHER PLAIN 8MM | 3 | 410B0800 | 4 | ||
| COLLAR,FUEL TANK FITT | 4 | 92027-1134 | 4 | ||
| DAMPER RUBB TANK FRNT | 5 | 92075-013 | 4 | ||
| PLATE | 6 | 13169-4017 | 2 | ||
| COVER,TRUNK,BLACK | 7 | 14025-4027-6D | 1 | ||
| KEY SET-POLICE SDDLBG | 8 | 27008-4001 | 2 | ||
| CASE-TRUNK | 9 | 32099-4006 | 1 | ||
| LATCH | 10 | 49031-4002 | 1 | ||
| HINGE | 11 | 53009-4001 | 2 | ||
| WASHER | 12 | 92022-4017 | 13 | ||
| RIVET | 13 | 92039-4006 | 10 | ||
| RIVET | 14 | 92039-4007 | 3 | ||
| SEAL-TRUNK | 15 | 92093-4003 | 1 |
| BOLT,8X40 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 8MM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FUEL TANK FITT | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBB TANK FRNT | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,TRUNK,BLACK | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KEY SET-POLICE SDDLBG | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CASE-TRUNK | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LATCH | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HINGE | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 13 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SEAL-TRUNK | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
