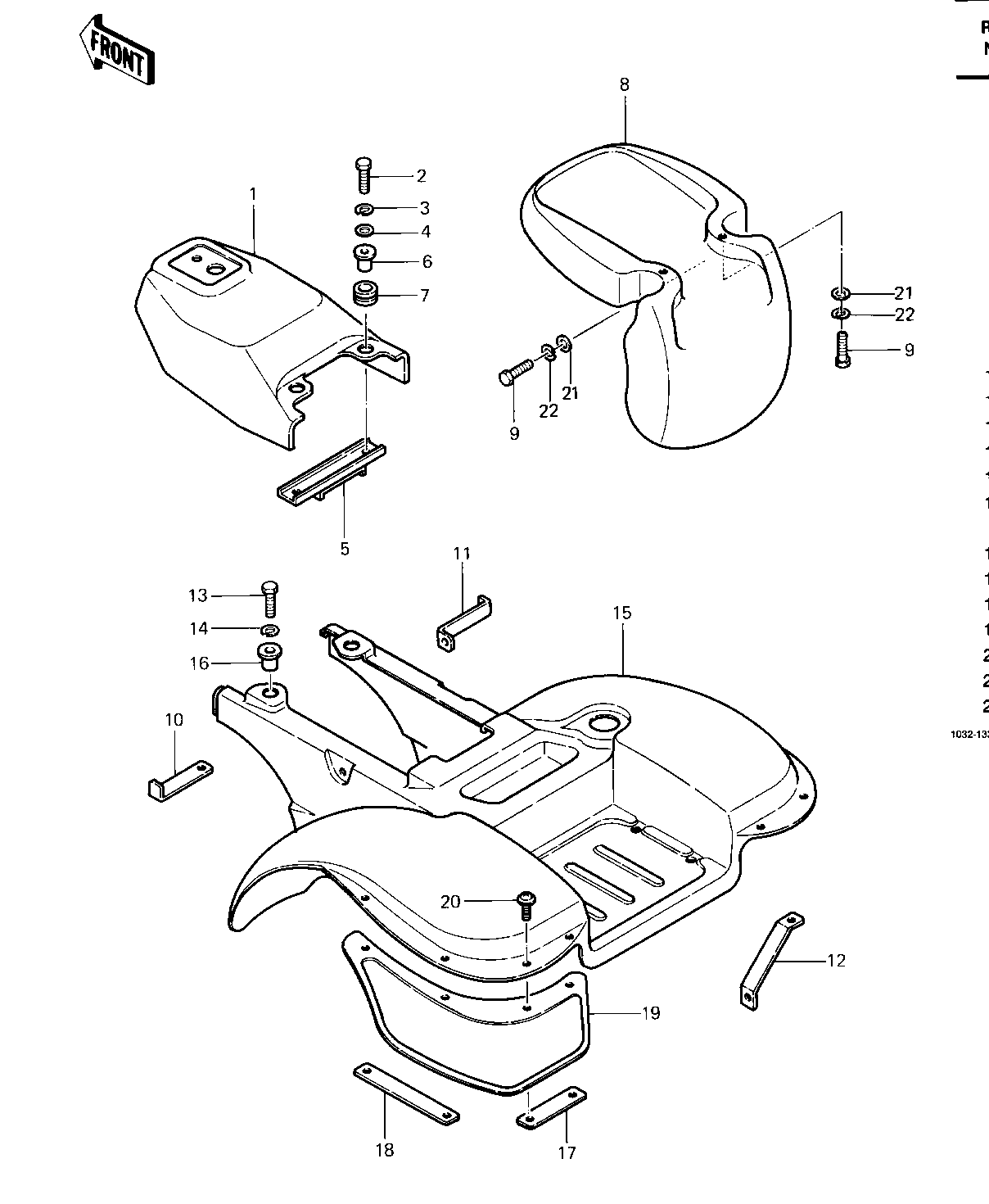

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,FR,BLACK | 1 | 14025-4015-6D | 1 | ||
| COVER,FR,RED | 1 | 14025-4015-8S | 1 | ||
| BOLT-UPSET | 2 | 112G0625 | 2 | ||
| WASHER SPRING 6MM | 3 | 461F0600 | 2 | ||
| WASHER PLAIN 6MM | 4 | 411B0600 | 2 | ||
| BRACKET-SEAT | 5 | 32046-4012 | 1 | ||
| COLLAR | 6 | 92027-194 | 2 | ||
| DAMPER RUBBER | 7 | 92075-112 | 2 | ||
| FENDER-FR,BLACK | 8 | 35004-4003-6D | 1 | ||
| FENDER-FR,RED | 8 | 35004-4003-8S | 1 | ||
| BOLT-UPSET 6X14 | 9 | 112B0614 | 4 | ||
| BRACE-FNDR,LH FT | 10 | 35009-4001 | 1 | ||
| BRACE-FNDR,RH FT | 11 | 35009-4002 | 1 | ||
| BRACE-FNDR,REAR | 12 | 35009-4003 | 2 | ||
| BOLT-UPSET 6X14 | 13 | 112B0614 | 2 | ||
| WASHER SPRING 6MM | 14 | 461F0600 | 2 | ||
| FENDER-RR,BLACK | 15 | 35022-4003-6D | 1 | ||
| FENDER-RR,RED | 15 | 35022-4003-8S | 1 | ||
| COLLAR,L=5 | 16 | 92027-4020 | 2 | ||
| BRACKET,FLAP | 17 | 11034-4062 | 2 | ||
| BRACKET,FLAP | 18 | 11034-4063 | 2 | ||
| FLAP | 19 | 35019-4004 | 2 | ||
| SCREW,6X20 | 20 | 92009-1289 | 8 | ||
| WASHER 6.5X20X1.6T | 21 | 92022-125 | 4 | ||
| WASHER SPRING 6MM | 22 | 461F0600 | 4 |
