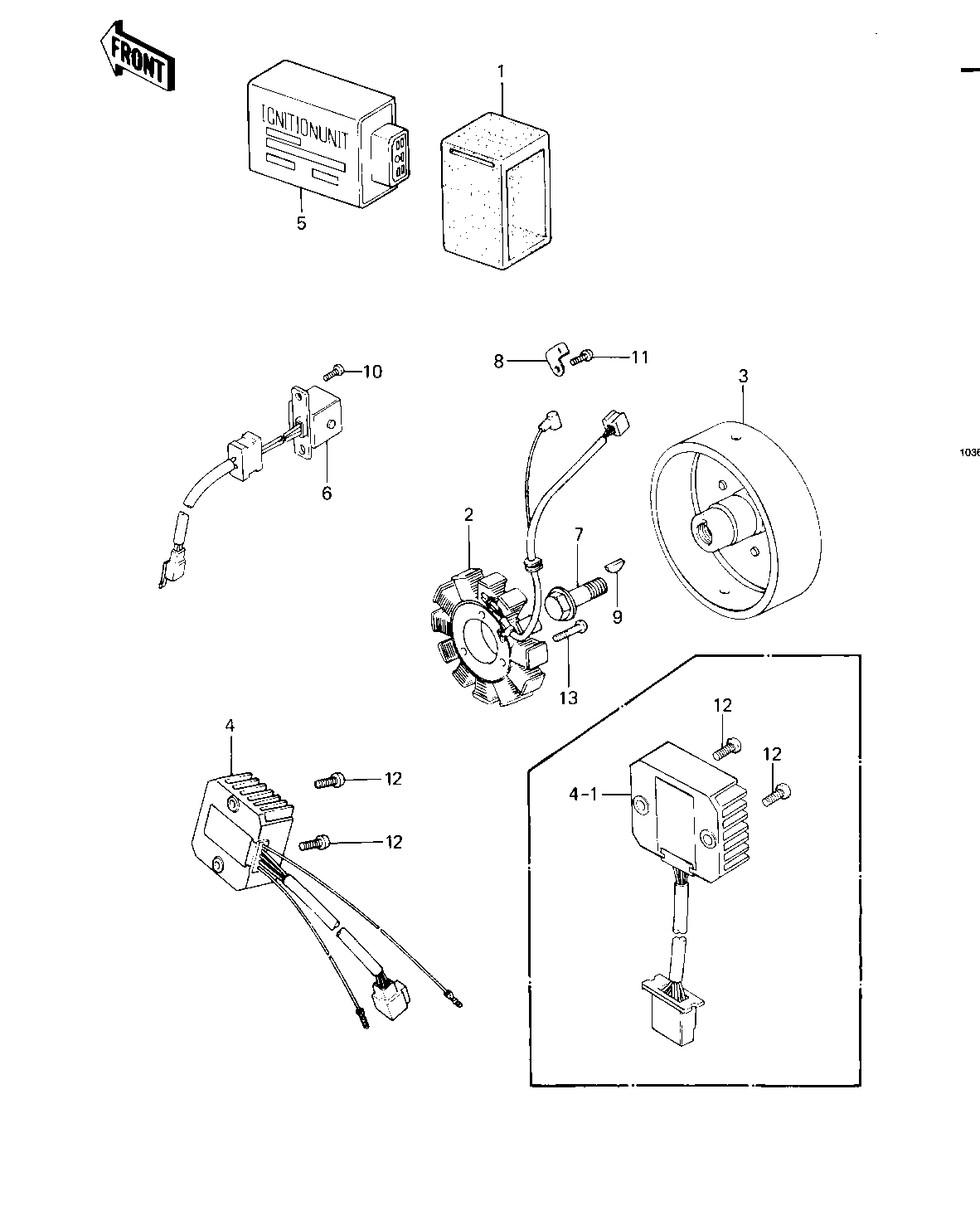

1983 Prairie - IGNITION/GENERATOR/REGULATOR ('83 C1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER | 1 | 13091-1095 | 1 | ||
| STATOR ASSY | 2 | 21003-1002 | 1 | ||
| ROTOR | 3 | 21007-1106 | 1 | ||
| REGULATOR,VOLTAGE | 4 | 21066-1014 | 1 | -F/NO. 502800 | |
| REGULATOR-VOLTAGE | 4-1 | 21066-1032 | 1 | F/NO. 502801- | |
| IGNITER | 5 | 21119-1193 | 1 | ||
| COIL-PULSING | 6 | 59026-1018 | 1 | ||
| BOLT,10X40 | 7 | 92001-1201 | 1 | ||
| CLAMP | 8 | 92037-194 | 1 | ||
| WOODRUFF KEY | 9 | 92038-001 | 1 | ||
| SCREW PAN HEAD 5X8 | 10 | 220B0508 | 2 | ||
| SCREW PAN HEAD 6X8 | 11 | 220B0608 | 1 | ||
| SCREW PAN HEAD 6X14 | 12 | 220B0614 | 2 | ||
| SCREW PAN HEAD 6X20 | 13 | 220B0620 | 3 |
