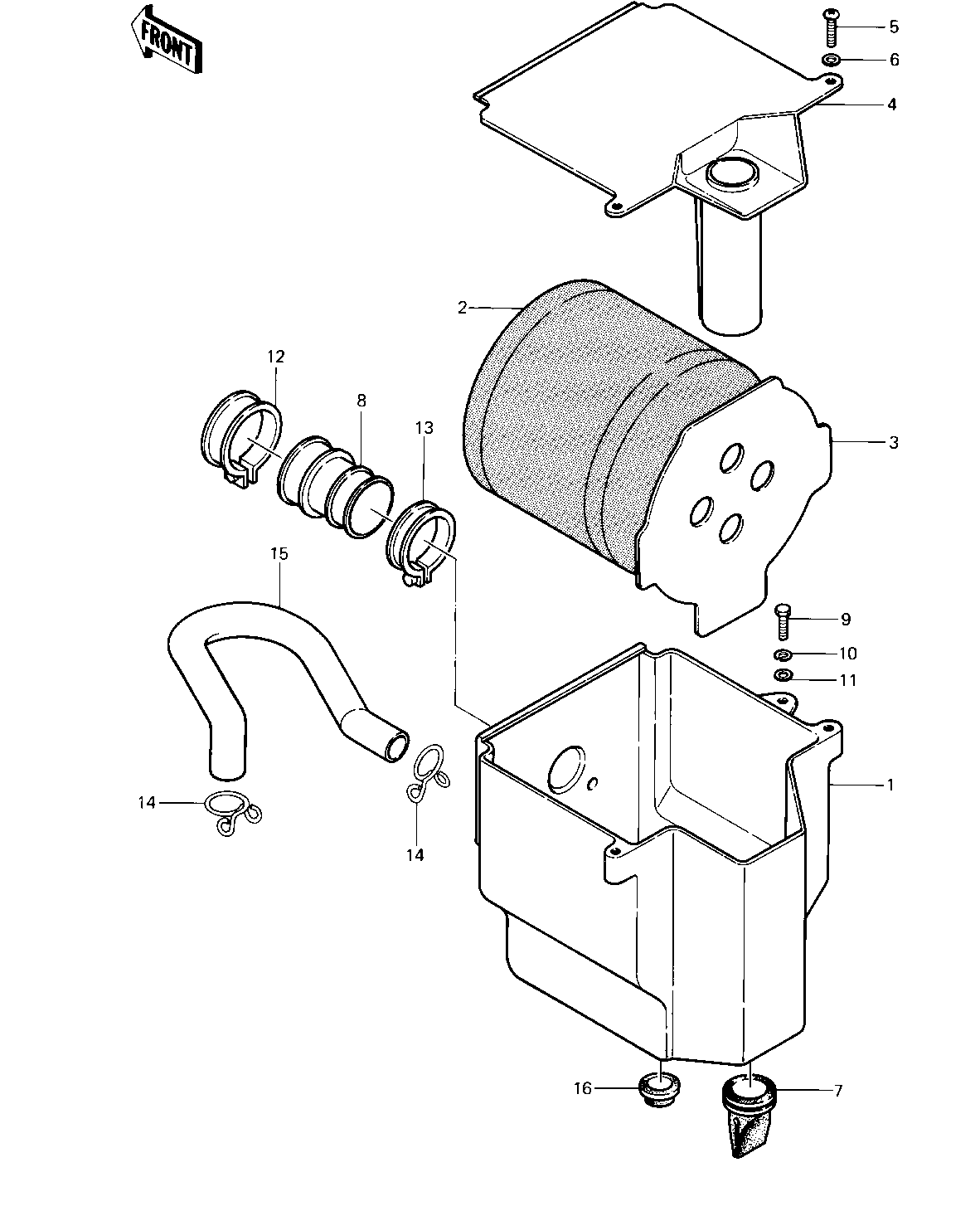

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE-AIR FILTER | 1 | 11011-1086 | 1 | ||
| ELEMENT,AIR CLNR | 2 | 11013-1053 | 1 | ||
| HOLDER,ELEMENT | 3 | 13091-1125 | 1 | ||
| COVER,AIR FILTER | 4 | 14025-1385 | 1 | ||
| SCREW PAN HEAD 6X12 | 5 | 220B0612 | 2 | ||
| WASHER PLAIN 6MM | 6 | 410B0600 | 2 | ||
| BOOT | 7 | 49006-1065 | 1 | ||
| DUCT,AIR INLET | 8 | 14073-1067 | 1 | ||
| BOLT-UPSET,6X16 | 9 | 112G0616 | 1 | ||
| WASHER SPRING 6MM | 10 | 461F0600 | 1 | ||
| WASHER PLAIN 6MM | 11 | 411B0600 | 1 | ||
| CLAMP-INLET PIPE | 12 | 92037-061 | 1 | ||
| CLAMP,MUFFLER | 13 | 92037-177 | 1 | ||
| CLAMP,BREATHER TUBE | 14 | 92037-213 | 2 | ||
| TUBE,BREATHER | 15 | 92059-1253 | 1 | ||
| DAMPER RUBBER,SIG LM | 16 | 92075-158 | 1 |
