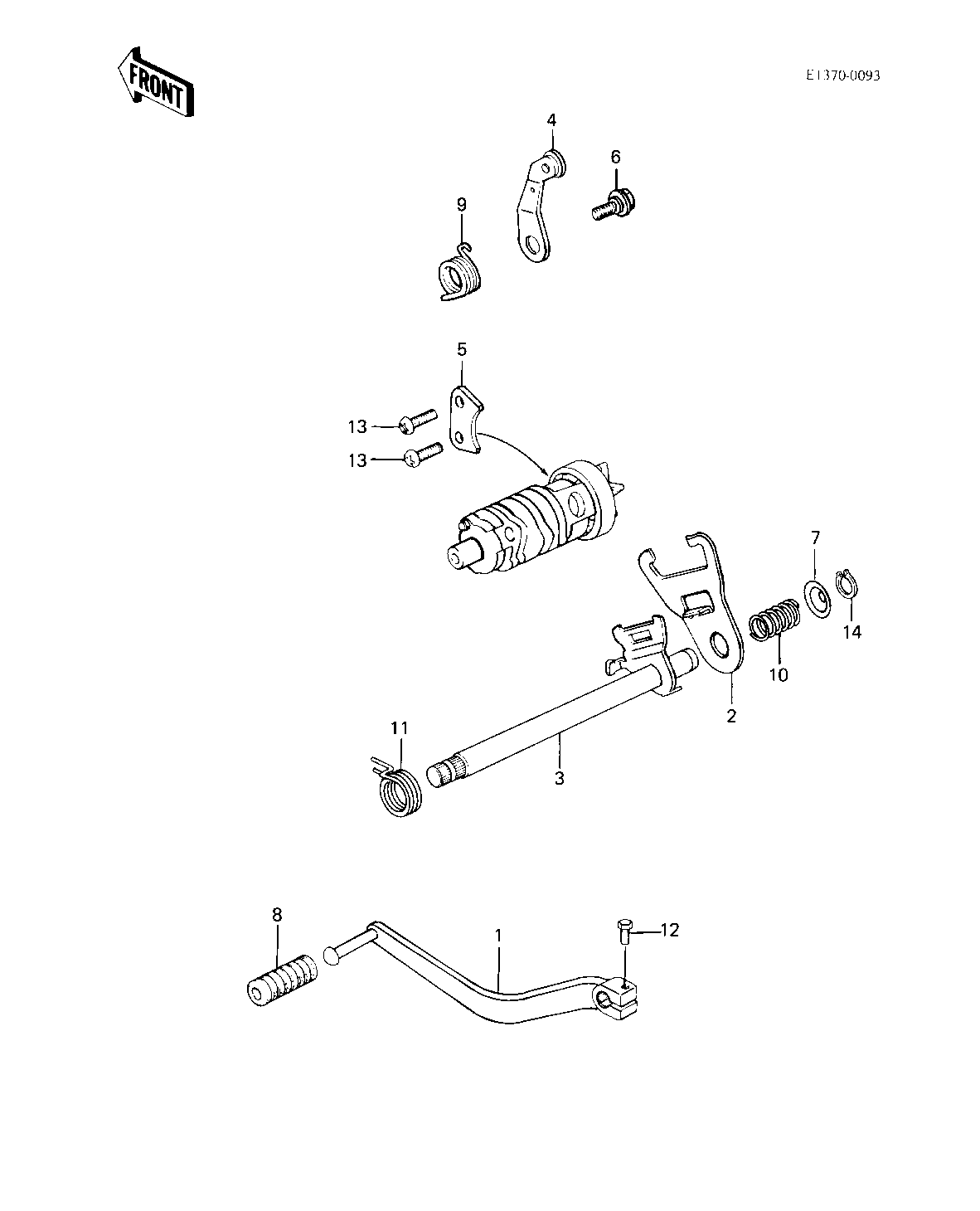

1983 Prairie - GEAR CHANGE MECHANISM ('83 C1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER,GEAR SHIFT | 1 | 13156-1070 | 1 | ||
| LEVER-CHANGE | 2 | 13156-1122 | 1 | ||
| LEVER-COMP-CHANGE SHA | 3 | 13161-1046 | 1 | ||
| LEVER,GEAR CHANGE | 4 | 13168-1129 | 1 | ||
| PLATE,GEAR CHANGE | 5 | 13169-014 | 1 | ||
| BOLT | 6 | 92001-1715 | 1 | ||
| WASHER,CHANGE LEVER | 7 | 92022-1406 | 1 | ||
| DAMPER,CHANGE PEDAL | 8 | 92160-1108 | 1 | ||
| SPRING | 9 | 92081-1496 | 1 | ||
| SPRING,CHANGE REVER | 10 | 92081-1536 | 1 | ||
| SPRING,CHG PEDL RTRN | 11 | 92083-028 | 1 | ||
| BOLT-UPSET,6X20 | 12 | 112G0620 | 1 | ||
| SCREW PAN HEAD 6X14 | 13 | 220B0614 | 2 | ||
| CIRCLIP,13MM | 14 | 480J1300 | 1 |
