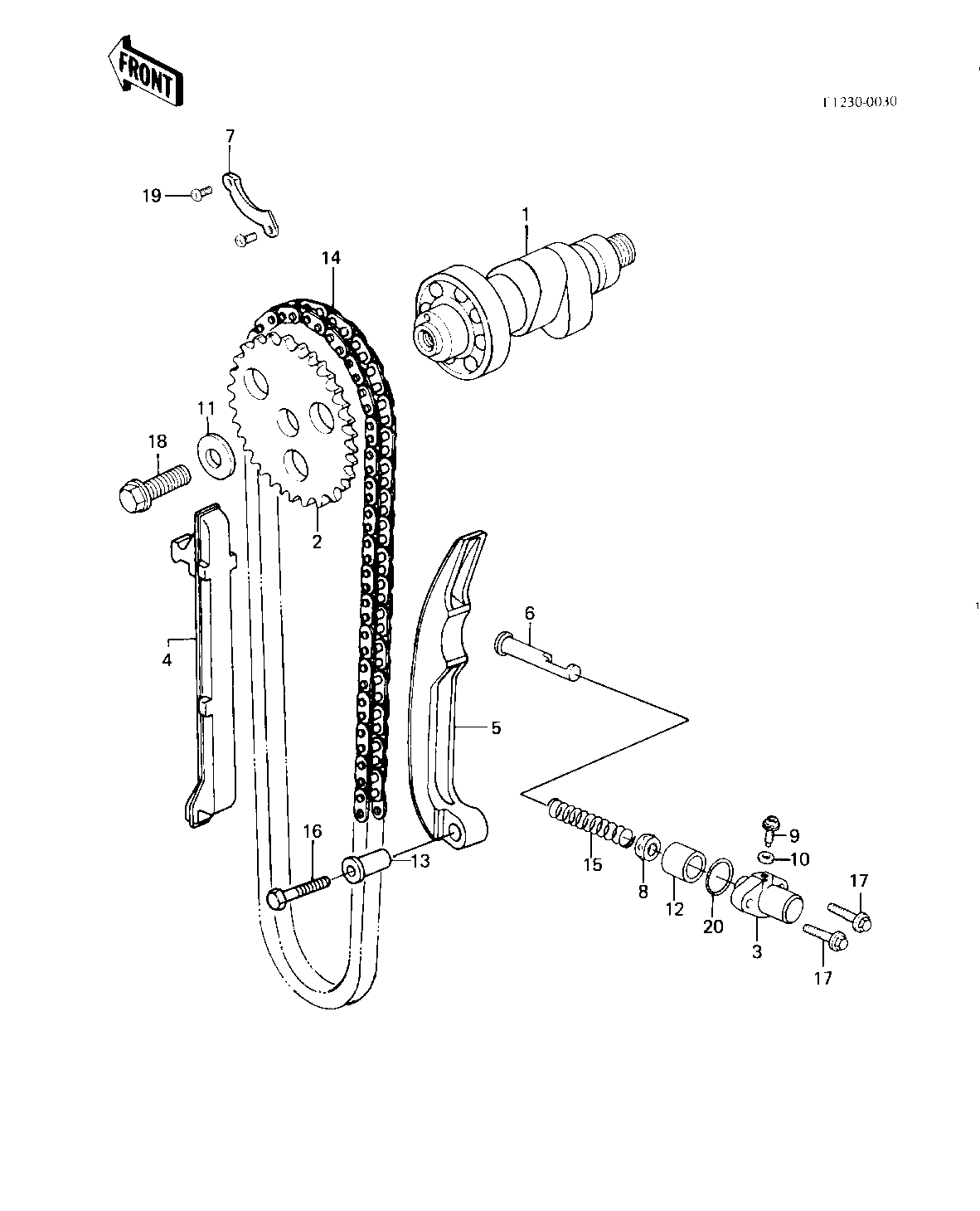

1983 Prairie - CAMSHAFT/CHAIN/TENSIONER ('83 C1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAMSHAFT-VALVE | 1 | 12044-1053 | 1 | ||
| SPROCKET,CAM CHAIN,32 | 2 | 12046-1037 | 1 | ||
| TENSIONER,CAM CHAIN | 3 | 12049-1055 | 1 | ||
| SLIPER,CAM CHAIN | 4 | 12053-023 | 1 | ||
| SLIPER,CAM CHAIN | 5 | 12053-024 | 1 | ||
| ROD,PUSH,CAM CHAIN | 6 | 13116-1019 | 1 | ||
| PLATE-POSITION | 7 | 14014-1030 | 1 | ||
| RETAINER | 8 | 14020-1002 | 1 | ||
| BELT,TENSIONER ADJUST | 9 | 92001-1155 | 1 | ||
| WASHER OIL PUMP BANJO | 10 | 92022-077 | 1 | ||
| WASHER,10X22X3 | 11 | 92022-1365 | 1 | ||
| COLLAR,TENSIONER | 12 | 92027-1273 | 1 | ||
| COLLAR | 13 | 92027-155 | 1 | ||
| CHAIN,CAM | 14 | 21070-013 | 1 | ||
| SPRING,TENSIONER | 15 | 92081-1105 | 1 | ||
| BOLT-UPSET,6X30 | 16 | 112G0630 | 1 | ||
| BOLT-FLANGED,6X25 | 17 | 130G0625 | 2 | ||
| BOLT-FLANGED,10X25 | 18 | 130G1025 | 1 | ||
| SCREW PAN HEAD 6X10 | 19 | 220B0610 | 2 | ||
| "0" RING,21MM | 20 | 670B2021 | 1 |
| CAMSHAFT-VALVE | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET,CAM CHAIN,32 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TENSIONER,CAM CHAIN | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLIPER,CAM CHAIN | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLIPER,CAM CHAIN | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,PUSH,CAM CHAIN | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-POSITION | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RETAINER | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BELT,TENSIONER ADJUST | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER OIL PUMP BANJO | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,10X22X3 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,TENSIONER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAIN,CAM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,TENSIONER | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X30 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X25 | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X25 | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X10 | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| "0" RING,21MM | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
