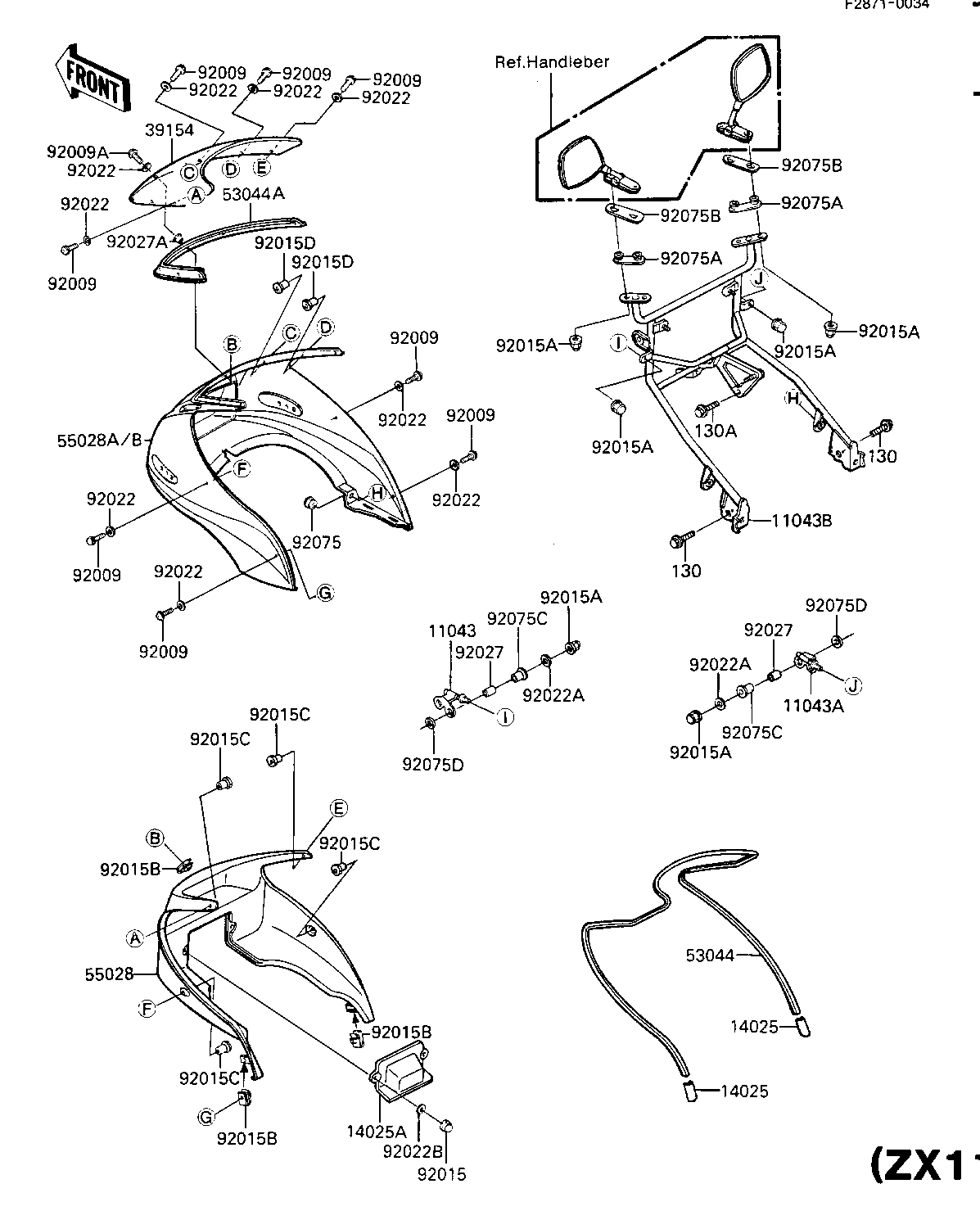

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-B,SIGNAL LAMP | 11043 | 11043-1278 | 1 | ||
| BRACKET-B,SIGNAL LAMP | 11043A | 11043-1279 | 1 | ||
| BRACKET,COWLING BODY | 11043B | 11043-1445 | 1 | ||
| COVER,WINDSHIELD END | 14025 | 14025-1756 | 2 | ||
| COVER,COWLING INNER | 14025A | 14025-1769 | 1 | ||
| WINDSHIELD | 39154 | 39154-1052 | 1 | ||
| TRIM,COWLING | 53044 | 53044-1110 | 1 | ||
| TRIM,WINDSHIELD | 53044A | 53044-1121 | 1 | ||
| COWLING,INNER | 55028 | 55028-5063 | 1 | ||
| COWLING,OUTER,F.RED | 55028A | 55028-5035-B1 | 1 | ||
| COWLING,OUTER,G.SILVE | 55028B | 55028-5036-F2 | 1 | CA,US | |
| SCREW | 92009 | 92009-1654 | 10 | ||
| SCREW,5X25 | 92009A | 92009-1302 | 1 | ||
| NUT,CAP 6MM,BLACK | 92015 | 92015-1170 | 2 | ||
| NUT-6MM | 92015A | 92015-1078 | 10 | ||
| NUT | 92015B | 92015-1710 | 3 | ||
| NUT,COWLING,5MM | 92015C | 92015-1351 | 4 | ||
| NUT,COWLING,5MM | 92015D | 92015-1352 | 4 | ||
| WASHER,NYLON,5.3X11.5 | 92022 | 92022-1521 | 11 | ||
| WASHER,PLAIN,7MM | 92022A | 92022-228 | 4 | ||
| WASHER-PLAIN,7MM | 92022B | 92022-240 | 2 | ||
| COLLAR,6.8X10X21 | 92027 | 92027-1400 | 4 | ||
| COLLAR,COWLING,L=5.5 | 92027A | 92027-1754 | 1 | ||
| DAMPER | 92075 | 92075-1057 | 2 | ||
| DAMPER,MIRROR | 92075A | 92075-1492 | 2 | ||
| DAMPER,MIRROR | 92075B | 92075-1500 | 2 | ||
| RUBBER,FENDER COVER | 92075C | 92075-174 | 4 | ||
| DAMPER RUBBER | 92075D | 92075-175 | 4 | ||
| BOLT-FLANGED,8X12,BLA | 130 | 130C0812 | 2 | ||
| BOLT-FLANGED,8X16,BLA | 130A | 130C0816 | 1 |
