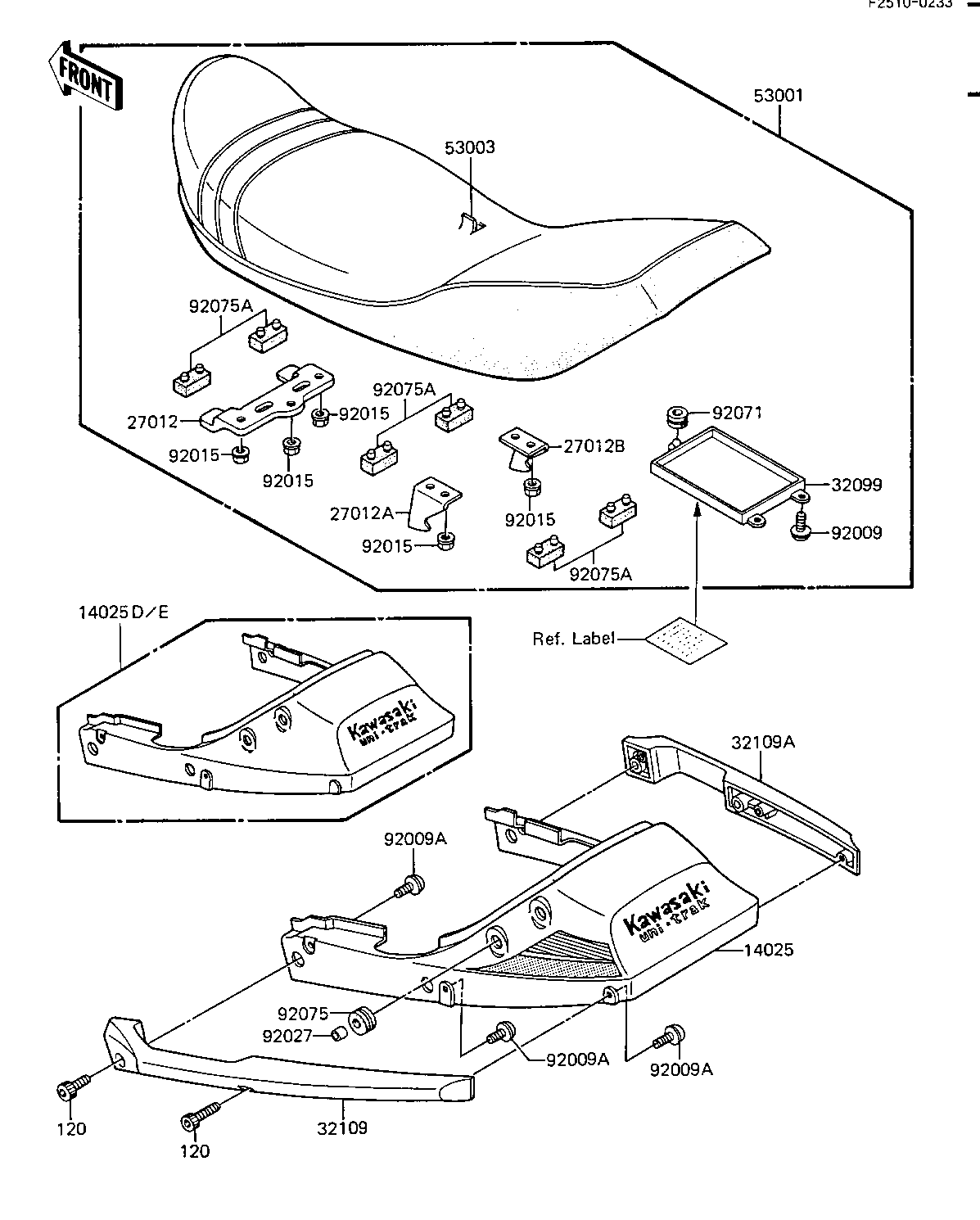

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,SEAT,F.RED | 14025D | 14025-5136-B1 | 1 | ||
| COVER,SEAT,G.SILVER | 14025E | 14025-5136-F2 | 1 | CA,US | |
| HOOK,SEAT,FR | 27012 | 27012-1042 | 1 | ||
| HOOK,SEAT,RR,LH | 27012A | 27012-1043 | 1 | ||
| HOOK,SEAT,RR,RH | 27012B | 27012-1044 | 1 | ||
| CASE | 32099 | 32099-011 | 1 | ||
| GRIP-FRAME,SEAT,LH | 32109 | 32109-1046 | 1 | ||
| GRIP-FRAME,SEAT,RH | 32109A | 32109-1047 | 1 | ||
| SEAT-ASSY | 53001 | 53001-1287 | 1 | ||
| LEATHER,SEAT | 53003 | 53003-1041 | 1 | ||
| SCREW | 92009 | 92009-1043 | 2 | ||
| SCREW,SEAT COVER | 92009A | 92009-1186 | 6 | ||
| NUT-6MM | 92015 | 92015-1078 | 7 | ||
| COLLAR,6.8X10X8.5 | 92027 | 92027-129 | 4 | ||
| GROMMET | 92071 | 92071-056 | 1 | ||
| DAMPER RUBBER | 92075 | 92075-1028 | 4 | ||
| DAMPER,SEAT,RR | 92075A | 92075-1276 | 6 | ||
| BOLT-SOCKET,8X35,BLAC | 120 | 120S0835 | 4 |
