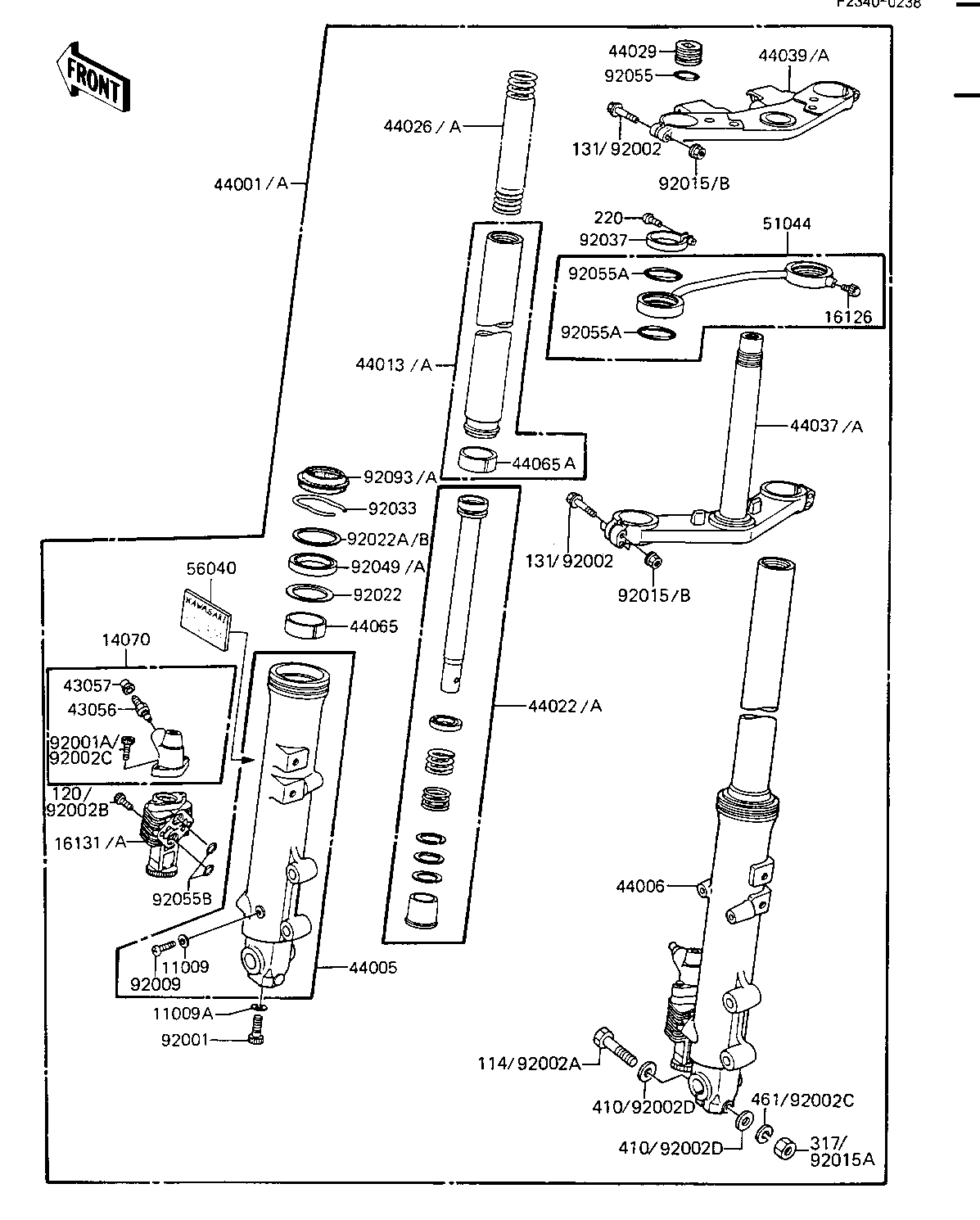

1983 GPz - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET FORK DRAIN PLG 11009 44045-002 2
GASKET,FORK CYLINDER 11009A 44045-057 2
BODY-BREATHER,FORK 14070 14070-1055 2
VALVE AIR 16126 16126-1052 1
BODY-VALVE,FORK,ANTI- 16131 16131-1051 2
BREEDER 43056 43056-003 2
CAP,BREEDER 43057 43057-003 2
FORK-FRONT 44001 44001-1457 1
PIPE-LEFT FORK OUTER 44005 44005-1130 1
PIPE-RIGHT FORK OUTER 44006 44006-1130 1
PIPE-FORK INNER 44013 44013-1201 2
CYLINDER-FORK 44022 44022-1152 2
SPRING-FRONT 44026 44026-1254 2
SEAT-FORK SPRING 44029 44029-1035 2
HOLDER-FORK UNDER 44037 44037-1110 1
HOLDER-FORK UPPER 44039 44039-1072 1
BUSHING-FRONT FORK 44065 44065-1051 2
BUSHING-FRONT FORK 44065A 44065-1058 2
TUBE-ASSY,AIR,FORK 51044 51044-1027 1
BOLT-FORK CYLINDER 92001 44041-040 2
BOLT,SOCKET,5X12,BLAC 92001A 92001-1957 4
SCREW,4X8 92009 92009-1324 2
NUT,FLANGED,8MM 92015 92015-1408 6
WASHER,FORK OUTER PIP 92022 92022-1455 2
WASHER,FORK OUTER PIP 92022A 92022-1456 2
SNAP RING,FORK OUTER 92033 92033-1047 2
CLAMP,FRONT FORK 92037 92037-1454 2
SEAL-OIL,FORK OUTER T 92049 92049-1372 2
RING-O,FORK SPRING SE 92055 92055-1132 2
RING-O,TUBE ASSY 92055A 92055-1164 4
RING-O,ANTI-DIVE UNIT 92055B 92055-1201 4
SEAL,FORK 92093 92093-1151 2
BOLT-SMALL-UPSET,8X60 114 115J0860 1
BOLT-SOCKET,6X16,BLAC 120 120S0616 4
BOLT-FLANGED,8X55,BLA 131 131J0855 6
SCREW PAN HEAD 4X10 220 220B0410 2
NUT-HEX-SMALL,8MM,BLA 317 317J0800 1
WASHER,PLAIN,8MM 410 92022-1554 2
WASHER-SPRING,8MM,BLA 461 461K0800 1
