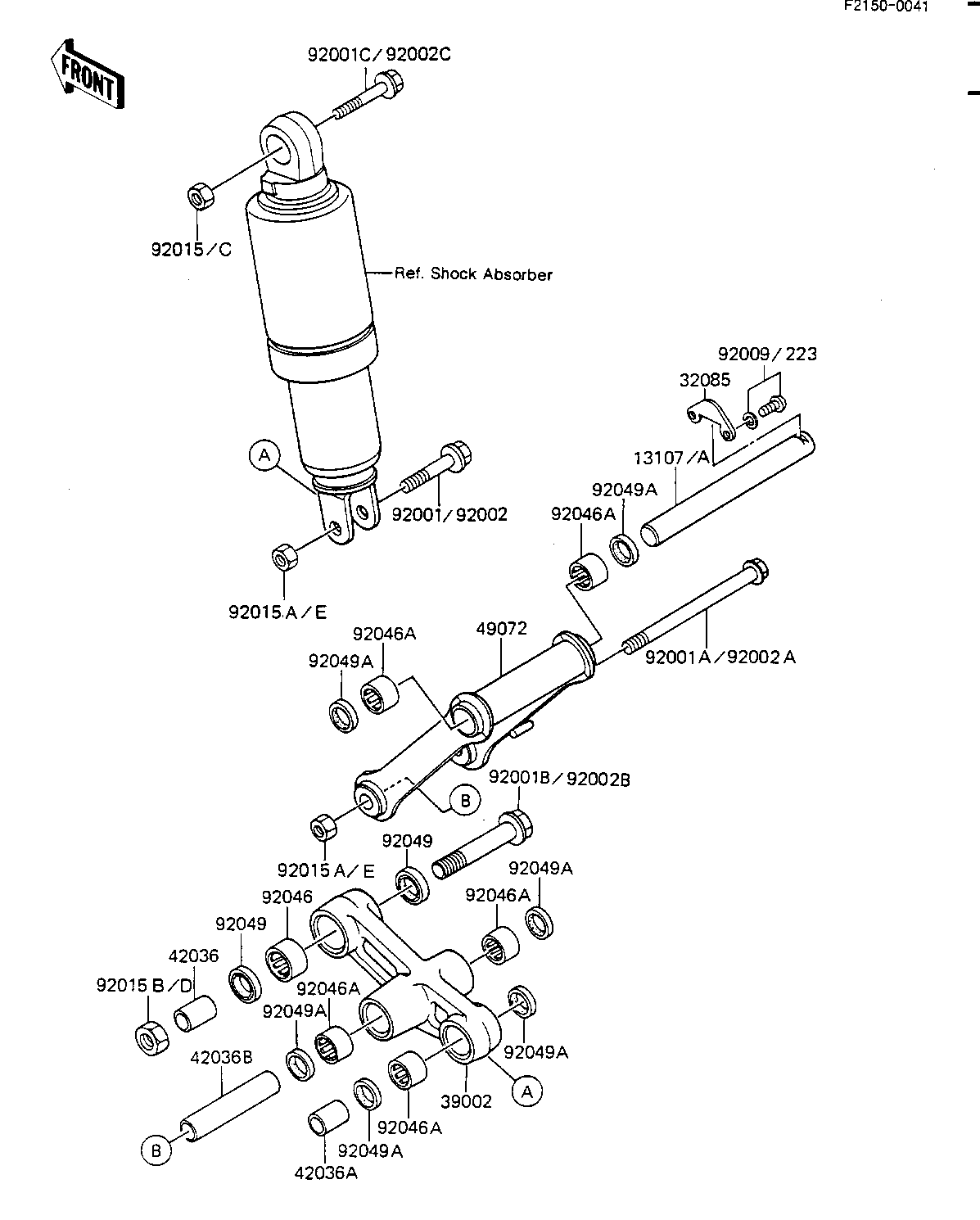

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT,SUSPENSION ARM | 13107 | 13107-1039 | 1 | ||
| STOPPER,SUSP ARM SHFT | 32085 | 32085-1120 | 1 | ||
| ARM-COMP-SUSP | 39002 | 39002-1004 | 1 | ||
| SLEEVE,SWING ARM | 42036 | 42036-1040 | 1 | ||
| SLEEVE,12.1X20X26 | 42036A | 42036-1072 | 1 | ||
| SLEEVE,12.1X20X84 | 42036B | 42036-1075 | 1 | ||
| ROD-CONECTING,SUSPENS | 49072 | 49072-1001 | 1 | ||
| BOLT,HEX HEAD,12X48 | 92001 | 92001-1297 | 1 | ||
| BOLT,FLANGED,12X128 | 92001A | 92001-1792 | 1 | ||
| BOLT,FLANGED,16X73 | 92001B | 92001-1801 | 1 | ||
| BOLT,HEX HEAD,10X50 | 92001C | 92003-090 | 1 | ||
| NUT,10MM | 92015C | 92015-1429 | 1 | ||
| NUT-SELF LOCKING | 92015D | 92019-012 | 1 | ||
| NUT-LOCK,12MM | 92015E | 92019-009 | 2 | ||
| BEARING-NEEDLE | 92046 | 92046-1035 | 1 | ||
| BEARING-NEEDLE,HK2016 | 92046A | 92046-1054 | 5 | ||
| SEAL-OIL | 92049 | 92049-1060 | 2 | ||
| SEAL-OIL,GD20X26X4 | 92049A | 92049-1108 | 6 | ||
| SCREW-PAN-WS-CROS | 223 | 223B0508 | 2 |
