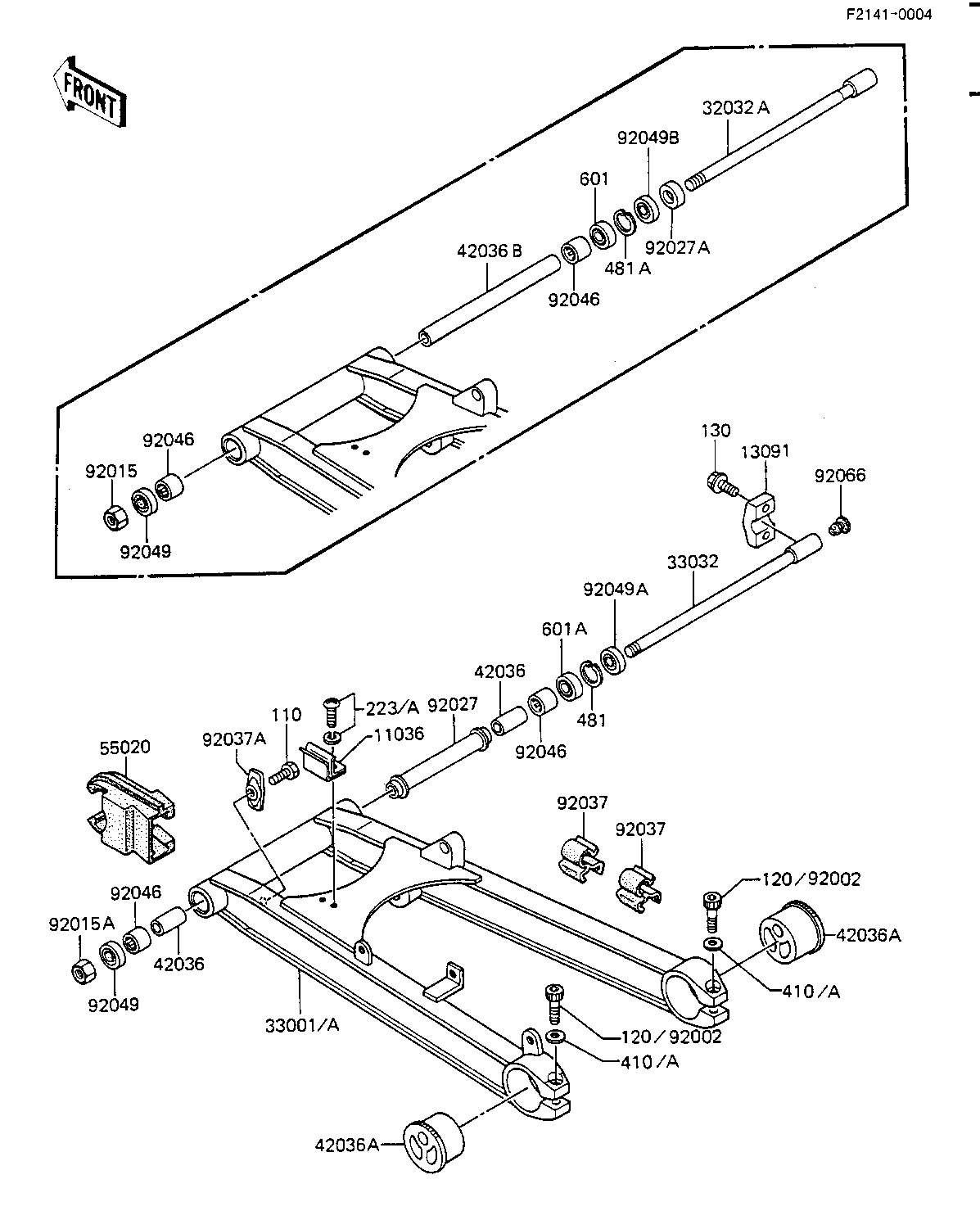

1983 GPz - SWING ARM

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-A,CAIN CASE 11036 11036-1868 1
HOLDER,SWNG ARM SHAFT 13091 13091-1180 1
ARM-COMP-SWING 33001 33001-1168 1
SHAFT-SWING ARM 33032 33032-1039 1
SLEEVE,SWING ARM 42036 42036-1073 2
SLEEVE,SWING ARM 42036A 42036-1074 2
GUARD,CHAIN 55020 55020-1100 1
NUT,LOCK,14MM,BLACK 92015A 92015-1212 1
COLLAR 92027 92027-1561 1
CLAMP,BRAKE HOSE 92037 92037-1392 2
CLAMP,CHAIN GARD 92037A 92037-1415 1
BEARING-NEEDLE 92046 92046-1035 2
SEAL-OIL 92049 92049-1060 1
SEAL-OIL,DD20357 92049A 92049-1095 1
PLUG,SWING ARM SHAFT 92066 92066-1125 1
BOLT HEX HEAD 5X8 110 110B0508 1
BOLT-SOCKET,10X35 120 120P1035 2
BOLT-FLANGED,10X30,BL 130 130S1030 2
SCREW-PAN-WS-CROS 223 223B0508 2
WASHER PLAIN 10MM 410 410B1000 2
CIRCLIP,35MM 481 481J3500 1
BEARING BALL #6202 601A 601B6202 1
