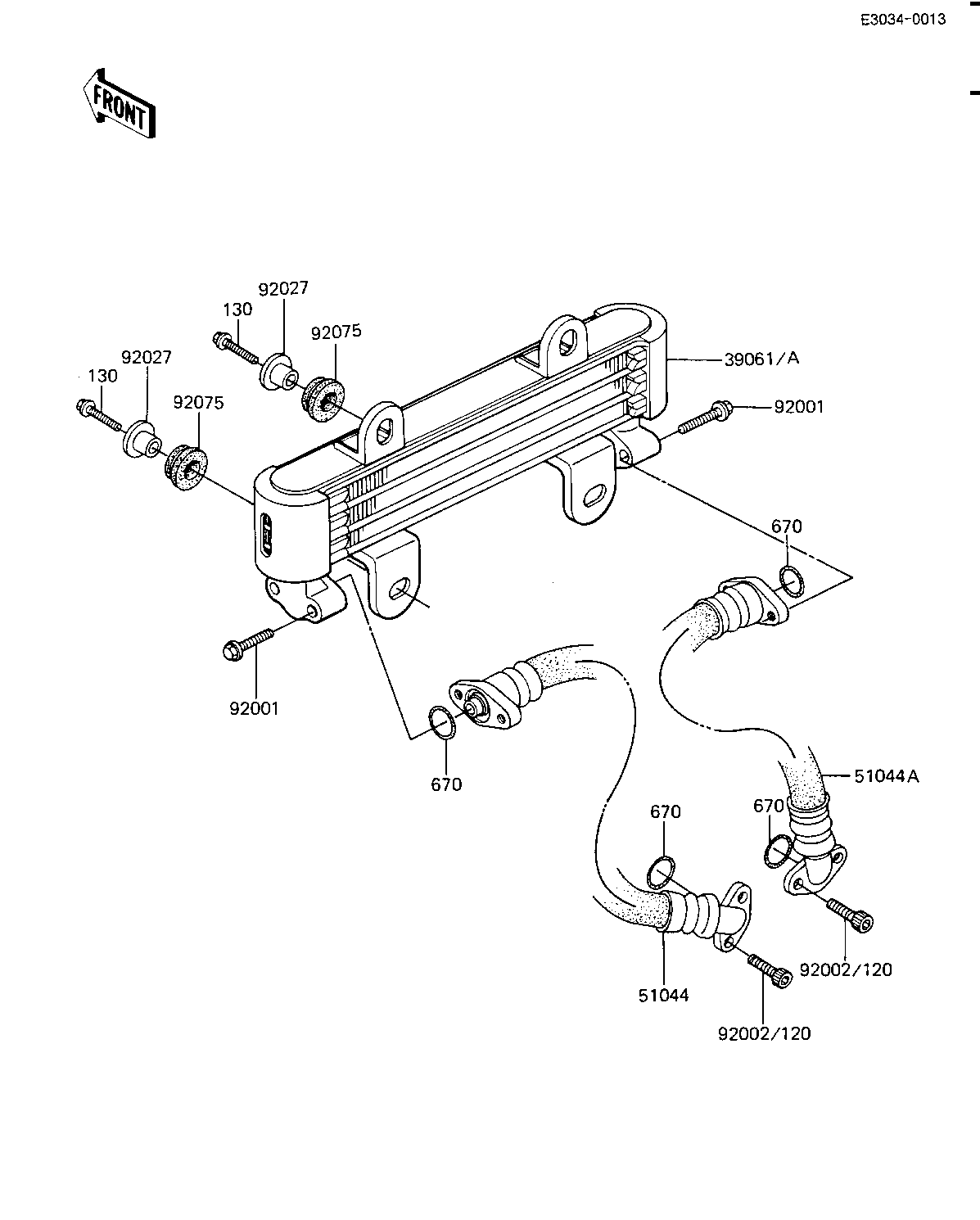

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EXCHANGER-ASSY-HEAT,B | 39061A | 39061-1016-21 | 1 | ||
| TUBE-ASSY,OIL COOLER | 51044 | 51044-1030 | 1 | ||
| TUBE-ASSY,OIL COOLER | 51044A | 51044-1031 | 1 | ||
| BOLT,FLANGED,6X25,BLK | 92001 | 92001-1467 | 4 | ||
| COLLAR,FLANGED,L=12.1 | 92027 | 92027-1651 | 4 | ||
| DAMPER RUBBER | 92075 | 92075-277 | 4 | ||
| BOLT-SOCKET,6X16,BLAC | 120 | 120S0616 | 4 | ||
| BOLT-FLANGED,6X20 | 130 | 130J0620 | 4 | ||
| 0 RING,14MM | 670 | 670D2014 | 4 |
| EXCHANGER-ASSY-HEAT,B | |
| REF # | 39061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-ASSY,OIL COOLER | |
| REF # | 51044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-ASSY,OIL COOLER | |
| REF # | 51044A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X25,BLK | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FLANGED,L=12.1 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X16,BLAC | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X20 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| 0 RING,14MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
