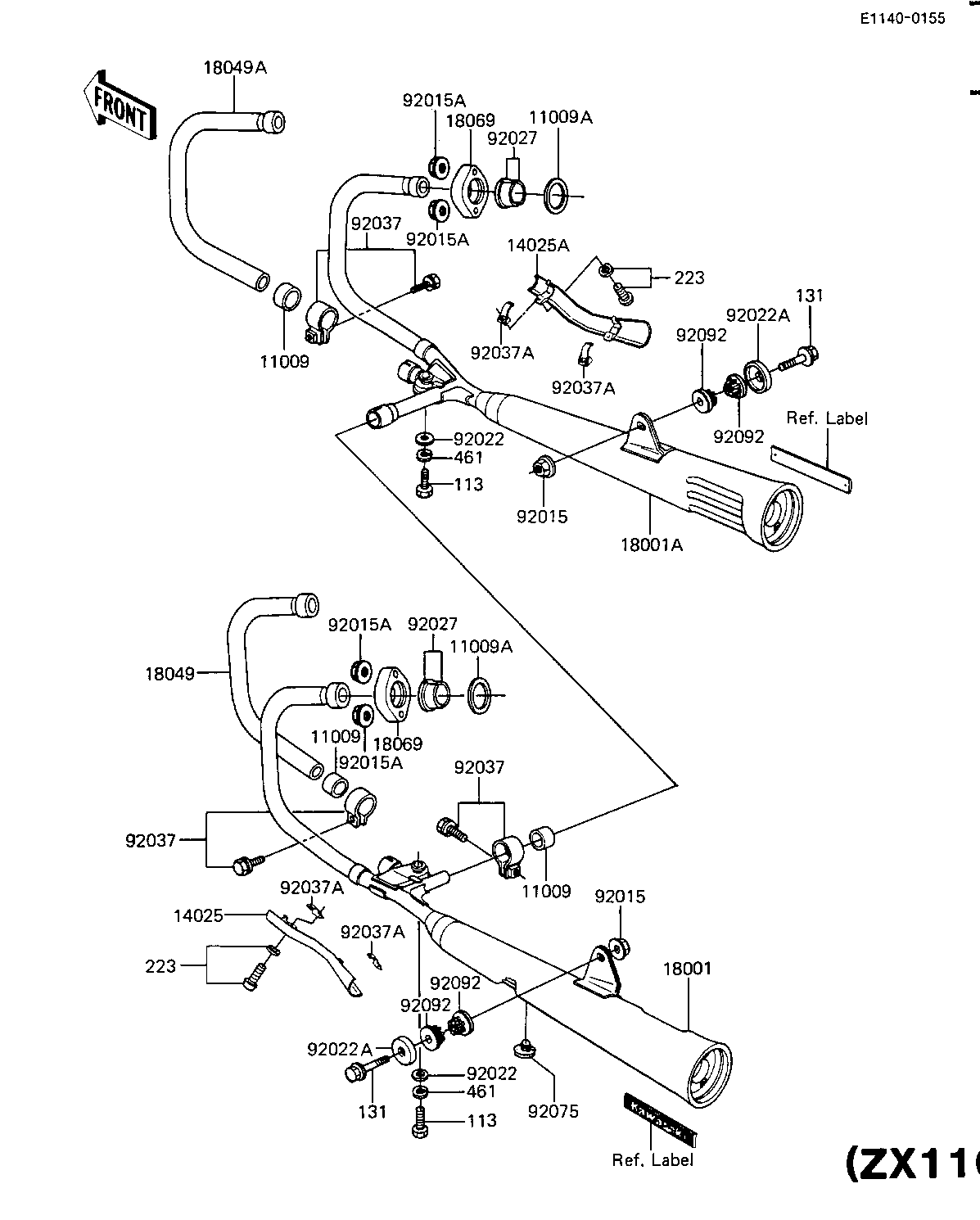

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,MANIFOLD EXHAU | 11009 | 11060-1068 | 3 | ||
| GASKET,EXHAUST PIPE H | 11009A | 11009-1906 | 4 | ||
| COVER,MUFFLER,LH,BLAC | 14025 | 14025-1647 | 1 | ||
| COVER,MUFFLER,RH,BLAC | 14025A | 14025-1648 | 1 | ||
| MUFFLER,LH BLACK | 18001 | 18001-5103 | 1 | ||
| MUFFLER,R.H.BLACK | 18001A | 18001-5104 | 1 | ||
| PIPE-EXHAUST,#2,BLACK | 18049 | 18049-1210 | 1 | ||
| PIPE-EXHAUST,#3,BLACK | 18049A | 18049-1224 | 1 | ||
| HOLDER-EXHAUST PIPE | 18069 | 18069-1019 | 4 | ||
| NUT,FLANGED,10MM | 92015 | 92015-1428 | 2 | ||
| NUT,LOCK,8MM,BLACK | 92015A | 92015-1302 | 8 | ||
| WASHER,PLAIN | 92022 | 92022-1022 | 2 | ||
| WASHER | 92022A | 92022-1355 | 2 | ||
| COLLAR,EXHAUST PIPE,B | 92027 | 92027-1457 | 8 | ||
| CLAMP,MUFFLER,BLACK | 92037 | 92037-1270 | 3 | ||
| CLAMP,MUFFLER COVER | 92037A | 92037-1319 | 4 | ||
| DAMPER RUBB MAIN STAD | 92075 | 92075-015 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 92092 | 92092-1031 | 4 | ||
| BOLT,FLANGED,10X70 | 113 | 92001-1618 | 2 | ||
| BOLT-FLANGED,10X55 | 131 | 131J1055 | 2 | ||
| SCREW-PAN-WS-CROS | 223 | 223C0620 | 4 | ||
| WASHER SPRING 10MM | 461 | 461F1000 | 2 |
