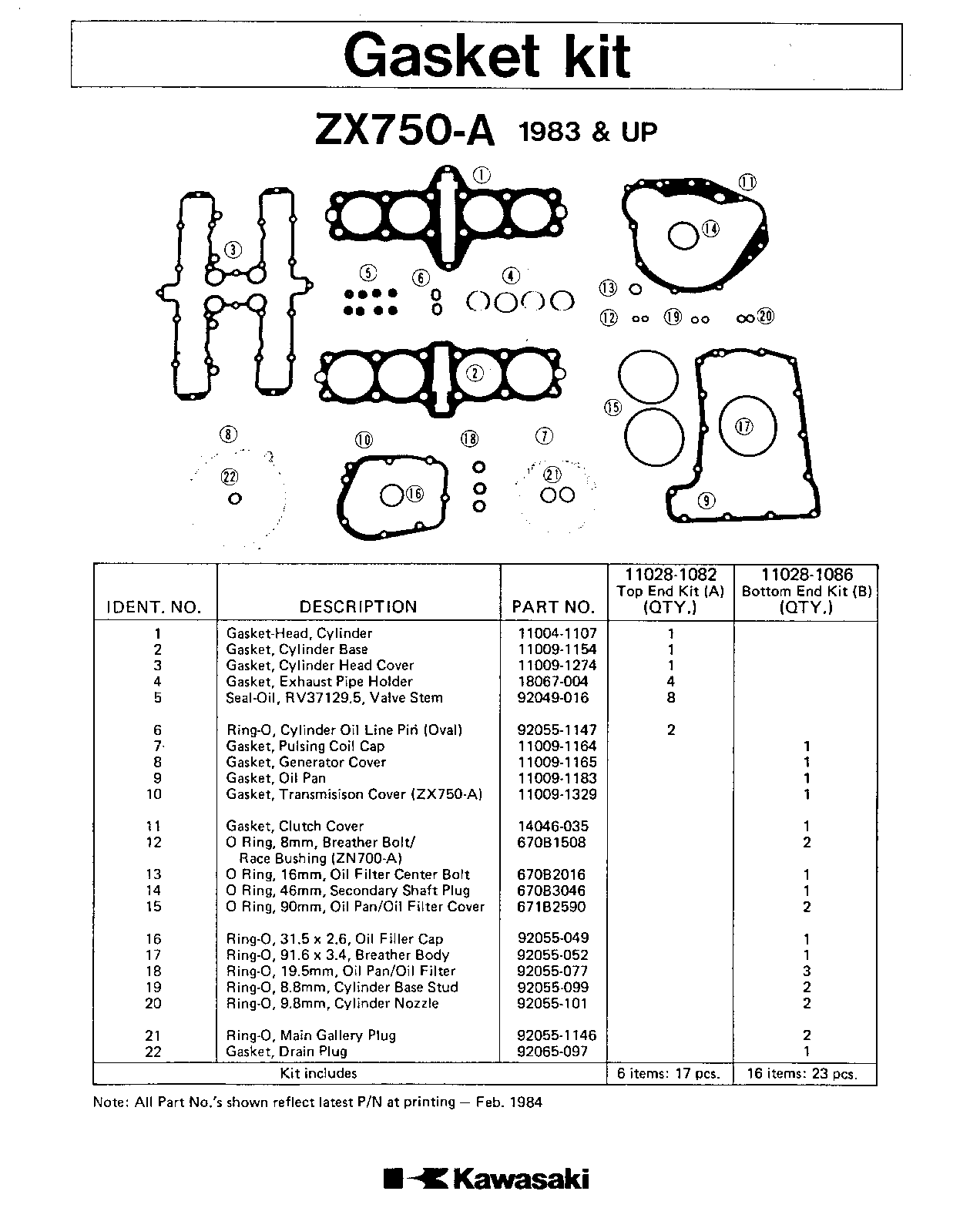

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET-SET,A,ZX750-A | 0-1 | 11028-1082 | 4 | 11028-1082 | |
| GASKET-SET,B,ZN700-A | 0-2 | 11028-1086 | 4 | 11028-1082 | |
| GASKET-HEAD,CYLINDER | 1 | 11004-1107 | 4 | 11028-1082 | |
| GASKET,CYLINDER BASE | 2 | 11060-1144 | 4 | 11028-1082 | |
| GASKET,CYLINDER HEAD | 3 | 11009-1274 | 4 | 11028-1082 | |
| GASKET,EXHAUST PIPE H | 4 | 11009-1866 | 4 | 11028-1082 | |
| OIL SEAL,RV37129.5 | 5 | 92049-016 | 4 | 11028-1082 | |
| RING-O | 6 | 92055-1147 | 4 | 11028-1082 | |
| GASKET,PULSING COIL C | 7 | 11060-1053 | 4 | 11028-1086 | |
| GASKET,GENERATOR COVE | 8 | 11009-1987 | 4 | 11028-1086 | |
| GASKET,OIL PAN | 9 | 11009-1983 | 4 | 11028-1086 | |
| GASKET,TRANSMISSION C | 10 | 11009-1985 | 4 | 11028-1086 | |
| GASKET,R.H.ENG COVER | 11 | 14046-035 | 4 | 11028-1086 | |
| "O" RING,8MM | 12 | 670B1508 | 4 | 11028-1086 | |
| "0" RING,16MM | 13 | 670B2016 | 4 | 11028-1086 | |
| "0" RING,46MM | 14 | 670B3046 | 4 | 11028-1086 | |
| "0" RING,90MM | 15 | 671B2590 | 4 | 11028-1086 | |
| "0" RING,31MM | 16 | 92055-049 | 4 | 11028-1086 | |
| "O" RING,91MM | 17 | 92055-052 | 4 | 11028-1086 | |
| "O" RING | 18 | 92055-077 | 4 | 11028-1086 | |
| "O" RING,8.8MM | 19 | 92055-099 | 4 | 11028-1086 | |
| "O" RING,9.8MM | 20 | 92055-101 | 4 | 11028-1086 | |
| RING-O | 21 | 92055-1146 | 4 | 11028-1086 | |
| GASKET,DRIN PLUG | 22 | 92065-097 | 4 | 11028-1086 |
