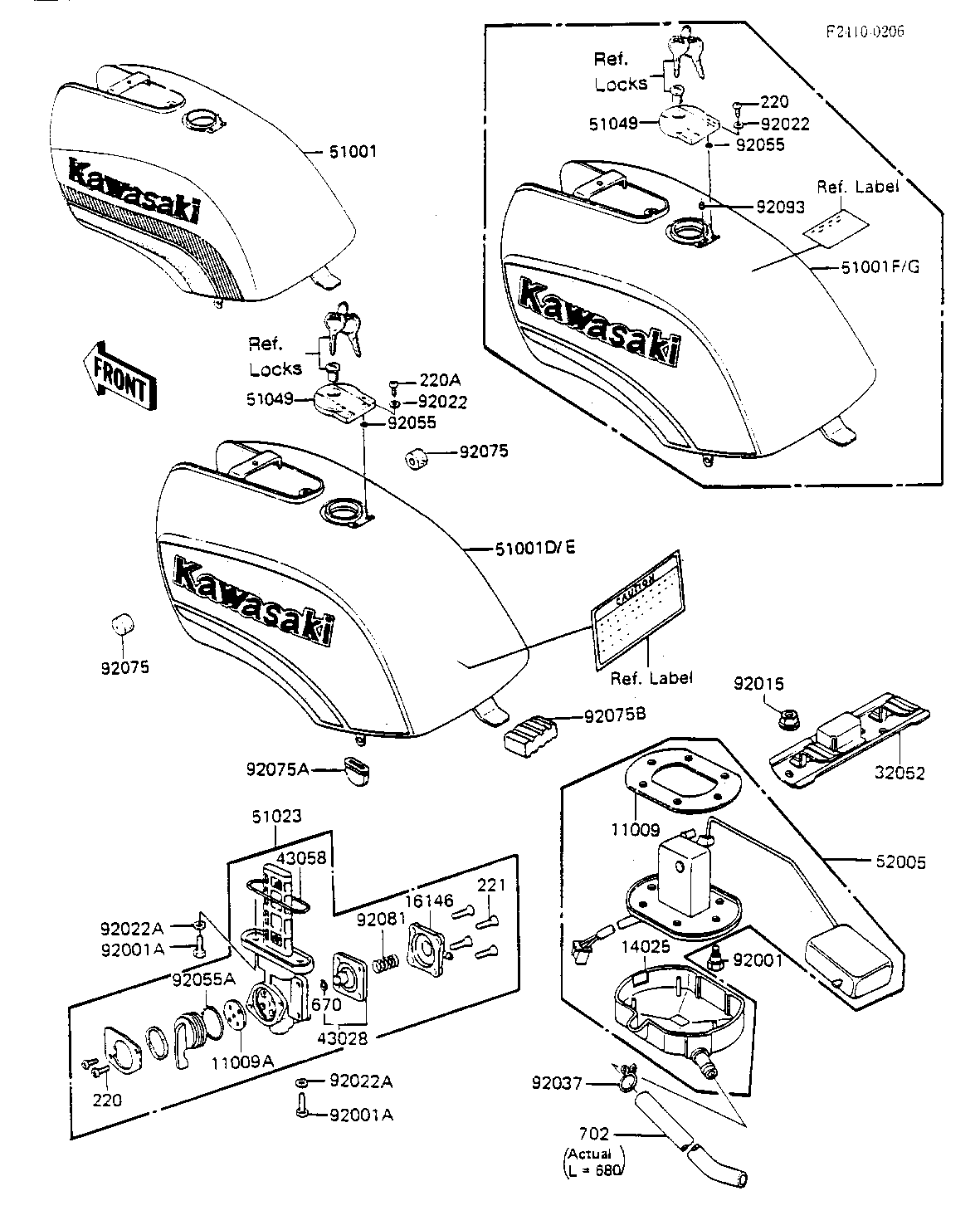

1984 GPz 750 - FUEL TANK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11009 11009-1037 1
GASKET,TAP VALVE 11009A 11009-1194 1
COVER,FUEL GAUGE 14025 14024-1434 1
COVER ASSY,TAP 16146 16146-1005 1
BRACKET-TANK,RR 32052 32052-5001 1
DIAPHRAGM ASSY,TAP 43028 43028-1015 1
"0" RING 43058 51039-010 1
TANK-COMP-FUEL,F.RED 51001D 51002-5107-B1 1 CN,US
TANK-COMP-FUEL,G SILV 51001E 51002-5108-F2 1 CN,US
TANK-FUEL,F.RED 51001F 51002-5110-B1 1 CA
TANK-FUEL,G.SILVER 51001G 51002-5111-F2 1 CA
TAP ASSY,FUEL 51023 51023-1031 1
CAP-TANK,FUEL 51049 51049-1097 1
GAUGE,FUEL 52005 52005-1036 1
BOLT,FUEL GAUGE FIT 92001 92001-1069 6
BOLT,6X20,FUEL TAP 92001A 92001-1091 2
NUT-6MM 92015 92015-1078 2
WASHER,PLAIN 92022 92022-1038 2
WASHER-PLAIN 92022A 92022-183 2
CLAMP,CHAIN OILER 92037 92037-147 1
"0" RING 92055 92055-1023 2
"0" RING,TAP LEVER 92055A 92055-1027 1
DAMPER RUBBER,FL TANK 92075 92075-125 2
DAMPER,SIDE COVER 92075A 92075-1445 2
DAMPER,FUEL TANK,RR 92075B 92075-1447 1
DAMPER,FUEL TANK 92075C 92075-1717 2
SPRING,TAP 92081 92081-1171 1
OIL SEAL,FUEL TANK 92093 92093-1030 1 CA
SCREW PAN HEAD 3X8 220 220B0308 2
SCREW PAN HEAD 5X10 220A 220B0510 2
SCREW-CSK-CROS,4X14 221 221B0414 4
"O" RING,4MM 670 670B1504 1
TUBE-RUBBER 702 702A07680 1
