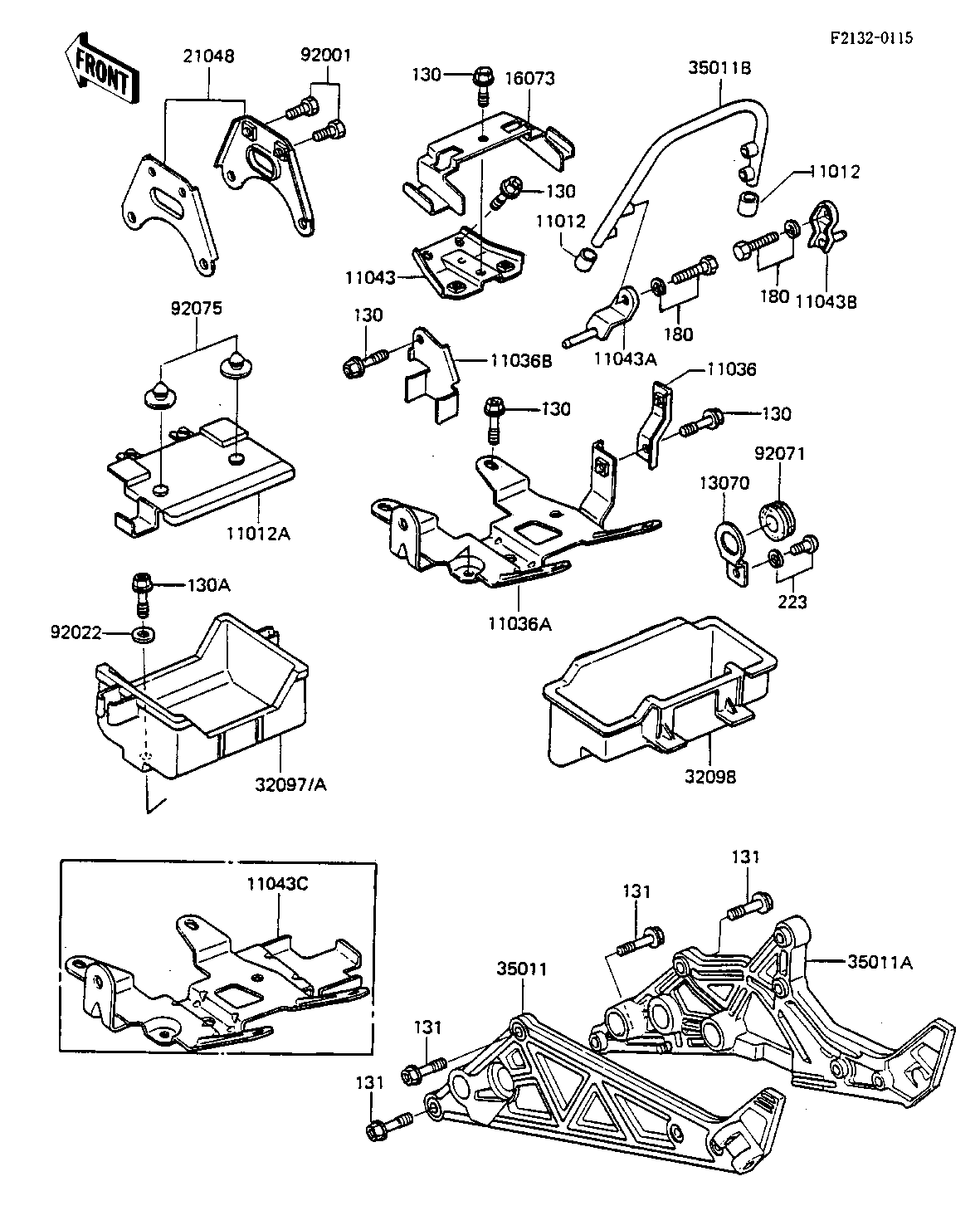

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,RR STAY END | 11012 | 11012-1290 | 2 | ||
| CAP,BATTERY | 11012A | 11012-1292 | 1 | ||
| BRACKET-A,RESERVOIR | 11036 | 11036-1345 | 1 | CN,US | |
| BRACKET-A,ELECTRO BAS | 11036A | 11036-1967 | 1 | CN,US | |
| BRACKET-A,MAGNETIC SW | 11036B | 11036-1968 | 1 | ||
| BRACKET-B,REGULATOR | 11043 | 11043-1129 | 1 | ||
| BRACKET-B,RR STAY,LH | 11043A | 11043-1144 | 1 | ||
| BRACKET-B,RR STAY,RH | 11043B | 11043-1145 | 1 | ||
| BRACKET,ELECTRO BASE | 11043C | 11043-1427 | 1 | CA | |
| GUIDE,SHOCKABSORBER | 13070 | 13070-1085 | 1 | ||
| INSULATOR,REGULATOR | 16073 | 16073-1018 | 1 | ||
| PLATE-COIL | 21048 | 21048-1006 | 2 | ||
| CASE-BATTERY | 32097 | 32097-1065 | 1 | CN,US | |
| CASE-BATTERY | 32097A | 32097-1105 | 1 | CA | |
| CASE-TOOL | 32098 | 32098-1028 | 1 | ||
| STAY,MUFFLER,LH | 35011 | 35011-1160 | 1 | ||
| STAY,MUFFLER,RH | 35011A | 35011-1161 | 1 | ||
| STAY,RR | 35011B | 35011-1176 | 1 | ||
| BOLT,HEX HEAD,6MM | 92001 | 92001-137 | 4 | ||
| WASHER-PLAIN,7MM | 92022 | 92022-240 | 1 | ||
| GROMMET | 92071 | 92071-056 | 1 | ||
| DAMPER RUBBER | 92075 | 92075-078 | 2 | ||
| BOLT,FLANGED,6X10 | 130 | 130B0610 | 8 | CA | |
| BOLT,FLANGED,6X10 | 130 | 130B0610 | 9 | CN,US | |
| BOLT | 130A | 130B0612 | 1 | ||
| BOLT-FLANGED,10X25,BL | 131 | 131J1025 | 4 | ||
| BOLT-UPSET-WS | 180 | 180G0630 | 2 | ||
| SCREW-PAN-WS-CROS | 223 | 223B0612 | 1 |
| CAP,RR STAY END | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP,BATTERY | |
| REF # | 11012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-A,RESERVOIR | |
| REF # | 11036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN,US |
| BRACKET-A,ELECTRO BAS | |
| REF # | 11036A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN,US |
| BRACKET-A,MAGNETIC SW | |
| REF # | 11036B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-B,REGULATOR | |
| REF # | 11043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-B,RR STAY,LH | |
| REF # | 11043A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-B,RR STAY,RH | |
| REF # | 11043B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,ELECTRO BASE | |
| REF # | 11043C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| GUIDE,SHOCKABSORBER | |
| REF # | 13070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,REGULATOR | |
| REF # | 16073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-COIL | |
| REF # | 21048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CASE-BATTERY | |
| REF # | 32097 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN,US |
| CASE-BATTERY | |
| REF # | 32097A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| CASE-TOOL | |
| REF # | 32098 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,MUFFLER,LH | |
| REF # | 35011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,MUFFLER,RH | |
| REF # | 35011A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,RR | |
| REF # | 35011B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,6MM | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN,7MM | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X10 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | CA |
| BOLT,FLANGED,6X10 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | CN,US |
| BOLT | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X25,BL | |
| REF # | 131 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WS | |
| REF # | 180 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WS-CROS | |
| REF # | 223 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
