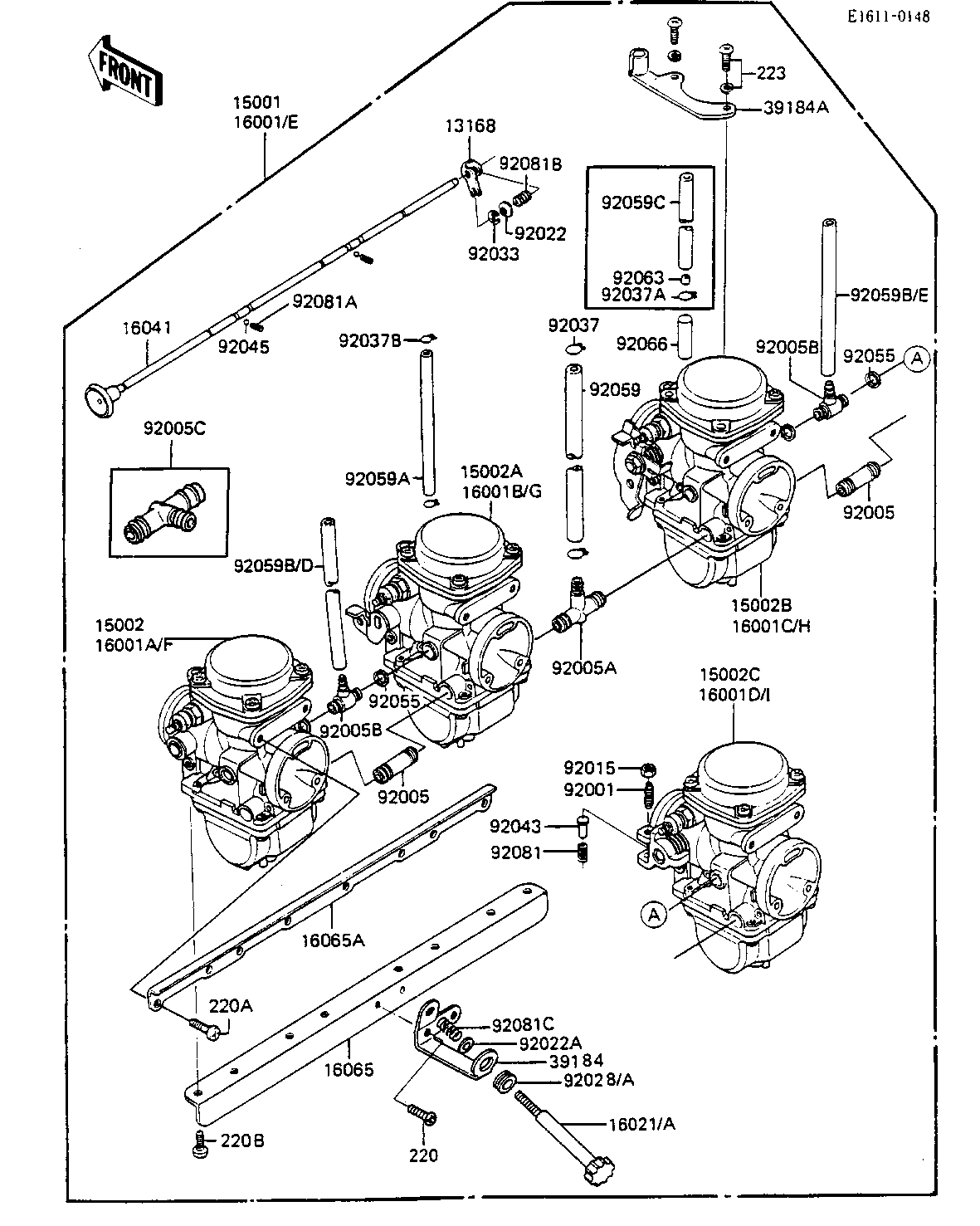

1984 GPz 750 - CARBURETOR ASSY

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER,CHOCK 13168 13168-1091 4
CARBURETOR-ASSY 15001 15001-1066 1 CA
CARBURETOR,LH,OUTSIDE 15002 15002-1066 1 CA
CARBURETOR,LH,INSIDE 15002A 15002-1067 1 CA
CARBURETOR,RH,INSIDE 15002B 15002-1068 1 CA
CARBURETOR,RH,OUTSIDE 15002C 15002-1069 1 CA
CARBURETOR 16001 16001-1818 1 US
CARBURETOR,LH,OUTSIDE 16001A 16001-1819 1 US
CARBURETOR,LH,INSIDE 16001B 16001-1820 1 US
CARBURETOR,RH,INSIDE 16001C 16001-1821 1 US
CARBURETOR,RH,OUTSIDE 16001D 16001-1822 1 US
CARBURETOR (Canada) 16001E 16001-1823 1 CN
CARBURETOR,LH,OUTSIDE (Canada) 16001F 16001-1824 1 CN
CARBURETOR,LH,INSIDE (Canada) 16001G 16001-1825 1 CN
CARBURETOR,RH,INSIDE (Canada) 16001H 16001-1826 1 CN
CARBURETOR,RH,OUTSIDE (Canada) 16001I 16001-1827 1 CN
SCREW-THROTTLE STOP 16021 16021-1035 1 CN,US
SCREW-THROTTLE STOP 16021A 16021-1103 1 CA
SHAFT-CARBURETOR,CHOC 16041 16041-1024 1
HOLDER-CARBURETOR,LWR 16065 16065-1043 1
HOLDER-CARBURETOR,UPP 16065A 16065-1044 1
BRACKET-ASSY,IDLING A 39184 39184-1007 1
BRACKET-ASSY,THROTTLE 39184A 39184-1009 1
BOLT,ADJUSTING 92001 92001-1447 3
FITTING,FUEL 92005 92005-1035 2
FITTING,FUEL 92005A 92005-1036 1
FITTING,AIR VENT 92005B 92005-1045 2
FITTING,T-TYPE 92005C 92005-1135 1 CA
NUT,THROTTLE VLV ADST 92015 92015-1119 3
WASHER,SPRING 92022 92022-1255 4
WASHER,THROTTLE STOP 92022A 92022-1491 1 CA
BUSHING 92028 92028-1071 1 CN,US
BUSHING,IDLING ADJUST 92028A 92028-1266 1 CA
RING-SNAP,E 92033 92033-1066 4
CLAMP,HOSE 92037 92037-1184 2
CLAMP,TUBE (Canada) 92037A 92037-1235 1 CN
CLAMP,BREATHER HOSE 92037B 92037-174 2
PIN,THROTTLE VALVE 92043 92043-1079 3
BALL,STEEL,1/8" 92045 600A0400 2
"0" RING 92055 92055-510 4
TUBE,7.5X12.5X225 92059 92059-1123 1
TUBE,5X9X150 92059A 92059-1188 1
TUBE,6.5X9.5X300 92059B 92059-1203 2 CN,US
TUBE,4.5X8X200 (Canada) 92059C 92059-1204 1 CN
TUBE,6.5X10.5X175 92059D 92059-1446 1 CA
TUBE,6.5X10.5X125 92059E 92059-1447 1 CA
JET-MAIN (Canada) 92063 92063-1097 1 CN
RUBBER PLUG 92066 92068-006 1 US
RUBBER PLUG 92066 92068-006 2 CN
SPRING,THROTTLE VALVE 92081 92081-1259 3
SPRING,FAST IDLE SHFT 92081A 92081-1260 2
SPRING,CHOCK SHAFT 92081B 92081-1364 4
SPRING,IDLING ADJUST 92081C 92081-1377 1
SCREW PAN HEAD 5X8 220 220B0508 1
SCREW-PAN-CROS 220A 220C0510 8
SCREW-PAN-CROS, 6X14 220B 220C0614 8
SCREW-PAN-WS-CROS 223 223C0518 2
