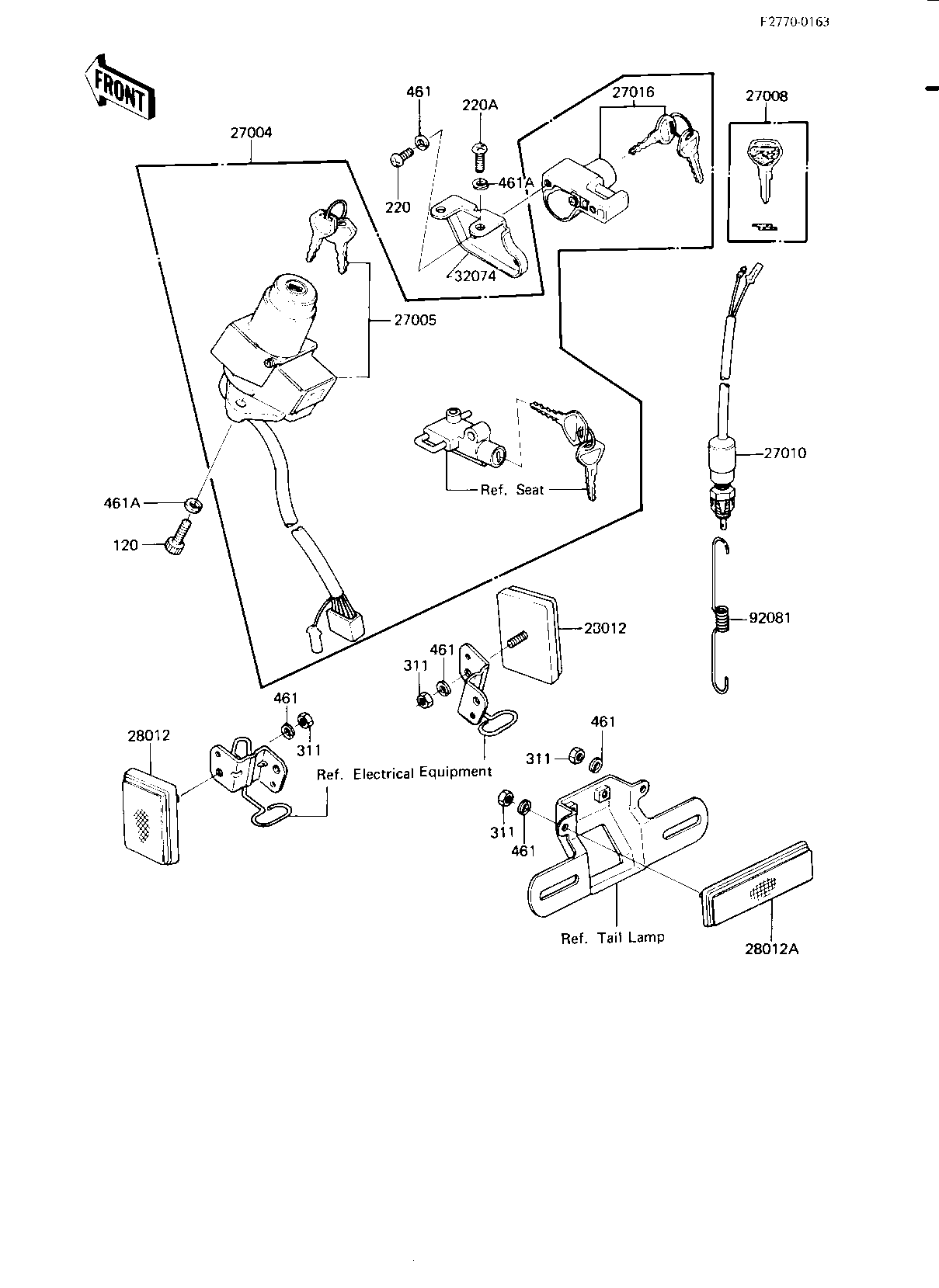

1983 KZ750-L3 - IGNITION SWITCH/LOCKS/REFLECTORS
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SWITCH-ASSY,ALL | 27004 | 27004-5205 | 1 | ||
| SWITCH-ASSY-IGNITION | 27005 | 27005-5024 | 1 | ||
| KEY-LOCK,BLANK | 27008 | 27008-1103 | 1 | ||
| SWITCH,BRAKE LAMP | 27010 | 27010-1019 | 1 | ||
| LOCK ASSY,HELMET | 27016 | 27016-5038 | 1 | ||
| REFLECTOR,REFLEX(FRON | 28012 | 28012-1003 | 2 | ||
| REFLECTOR,REAR REFLEX | 28012A | 28012-1005 | 2 | ||
| BRACKET-LOCK,HELMET,B | 32074 | 32074-1035 | 1 | ||
| SPRING-BRAKE LAMP SW | 92081 | 27011-011 | 1 | ||
| BOLT-SOCKET,6X16,BLAC | 120 | 120S0616 | 2 | ||
| SCREW PAN HEAD 5X8 | 220 | 220B0508 | 2 | ||
| SCREW PAN HEAD 6X12 | 220A | 220B0612 | 2 | ||
| NUT,5MM | 311 | 311B0500 | 4 | ||
| WASHER SPRING 5MM | 461 | 461F0500 | 6 | ||
| WASHER SPRING 6MM | 461A | 461F0600 | 4 |
| SWITCH-ASSY,ALL | |
| REF # | 27004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH-ASSY-IGNITION | |
| REF # | 27005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KEY-LOCK,BLANK | |
| REF # | 27008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,BRAKE LAMP | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LOCK ASSY,HELMET | |
| REF # | 27016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REFLECTOR,REFLEX(FRON | |
| REF # | 28012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| REFLECTOR,REAR REFLEX | |
| REF # | 28012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET-LOCK,HELMET,B | |
| REF # | 32074 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING-BRAKE LAMP SW | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X16,BLAC | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X8 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X12 | |
| REF # | 220A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 5MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
