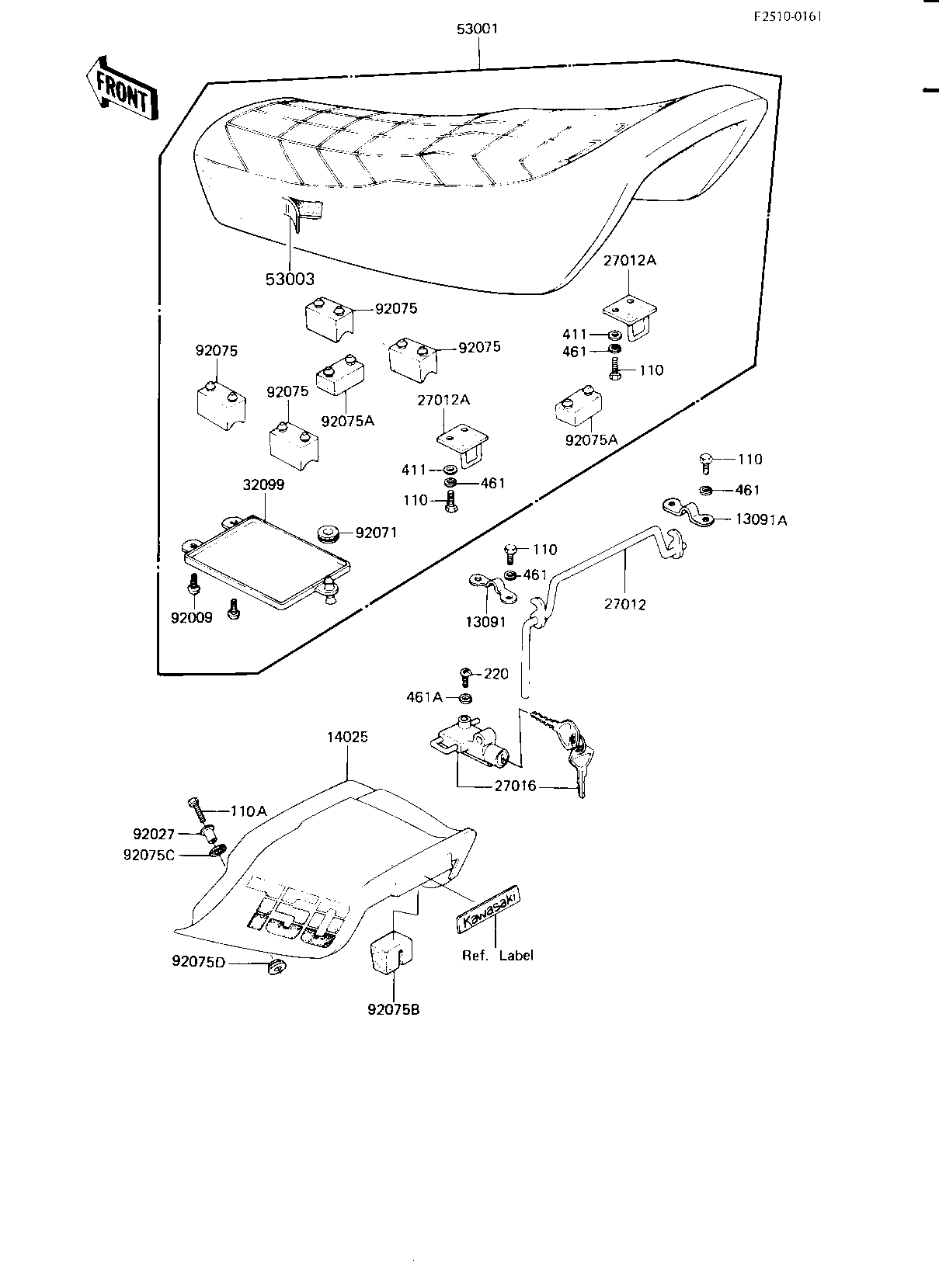

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER,SEAT HOOK | 13091 | 13091-1137 | 1 | ||
| HOLDER,SEAT HOOK,RH | 13091A | 13091-1158 | 1 | ||
| COVER,SEAT,EBONY | 14025 | 14025-5089-H8 | 1 | ||
| HOOK,SEAT LOCK | 27012 | 27012-1027 | 1 | ||
| HOOK, SEAT | 27012A | 53008-021 | 2 | ||
| LOCK-ASSY,SEAT | 27016 | 27016-5049 | 1 | ||
| CASE | 32099 | 32099-011 | 1 | ||
| SEAT-ASSY,DUAL,L/BAND | 53001 | 53001-1215 | 1 | ||
| LEATHER,SEAT | 53003 | 53003-1023 | 1 | ||
| SCREW | 92009 | 92009-1043 | 2 | ||
| COLLAR | 92027 | 92027-251 | 2 | ||
| GROMMET | 92071 | 92071-056 | 1 | ||
| DAMPER RUBBER,SEAT | 92075 | 92075-1133 | 4 | ||
| DAMPER,SEAT,RR | 92075A | 92075-1276 | 2 | ||
| DAMPER,SEAT | 92075B | 92075-1313 | 1 | ||
| RUBBER,FENDER COVER | 92075C | 92075-174 | 2 | ||
| DAMPER RUBBER | 92075D | 92075-175 | 2 | ||
| BOLT-UPSET 6X14 | 110 | 112B0614 | 8 | ||
| BOLT-UPSET,6X20 | 110A | 112G0620 | 2 | ||
| SCREW-PAN-CROS,6X10,B | 220 | 220C0610 | 1 | ||
| WASHER PLAIN 6MM | 411 | 411B0600 | 4 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 1 | ||
| WASHER-SPRING,6MM,BLA | 461A | 461K0600 | 1 |
