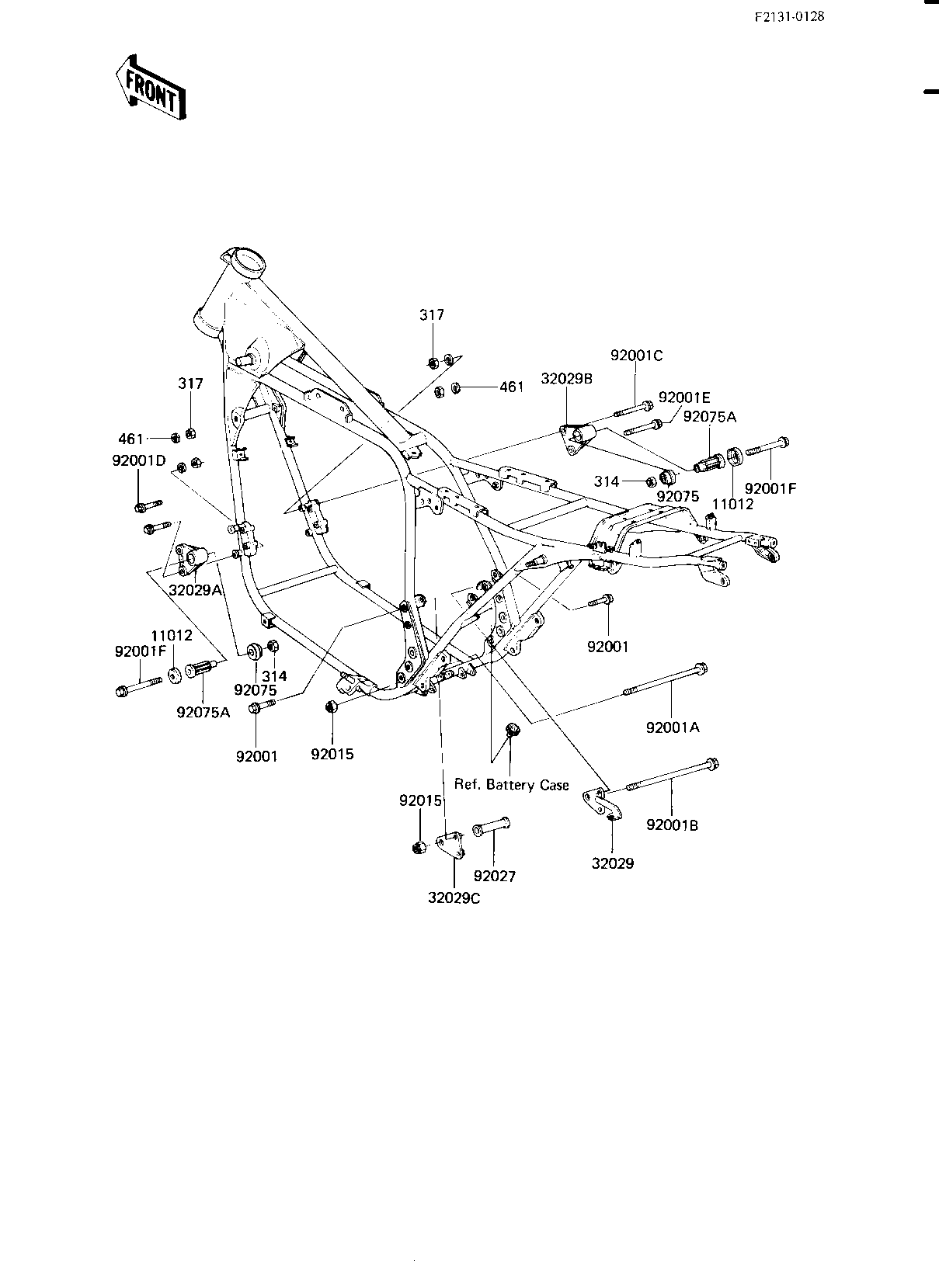

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,ENGINE BRACKET | 11012 | 11012-1228 | 2 | ||
| PLATE,ENG.MOUNT,R.H. | 32029 | 32029-1129 | 1 | ||
| BRACKET-ENGINE,FR,LH | 32029A | 32029-1192 | 1 | ||
| BRACKET-ENGINE,FR,RH | 32029B | 32029-1193 | 1 | ||
| PLATE,RR ENG MONT,L.H | 32029C | 32030-064 | 1 | ||
| BOLT,FLANGED,8X40,BLA | 92001 | 92001-1612 | 4 | ||
| BOLT,FLANGED,10X225,B | 92001A | 92001-1622 | 1 | ||
| BOLT,FLANGED,10X250 | 92001B | 92001-1623 | 1 | ||
| BOLT,FLANGED,8X80,BLA | 92001C | 92001-1640 | 1 | ||
| BOLT,FLANGED,8X55,BLA | 92001D | 92001-1641 | 2 | ||
| BOLT,FLANGED,8X75,BLA | 92001E | 92001-1642 | 1 | ||
| BOLT,FLANGED,10X105,B | 92001F | 92001-1751 | 2 | ||
| NUT,LOCK,10MM,BLACK | 92015 | 92015-1189 | 2 | ||
| COLLAR,L=54,BLACK | 92027 | 92027-1425 | 1 | ||
| DAMPER | 92075 | 92075-1274 | 2 | ||
| DAMPER,ENGINE BRACKET | 92075A | 92075-1377 | 2 | ||
| NUT-HEX-FINE,10MM | 314 | 314C1000 | 2 | ||
| NUT-HEX-SMALL,8MM,BLA | 317 | 317C0800 | 4 | ||
| WASHER-SPRING,8MM,BLA | 461 | 461K0800 | 4 |
