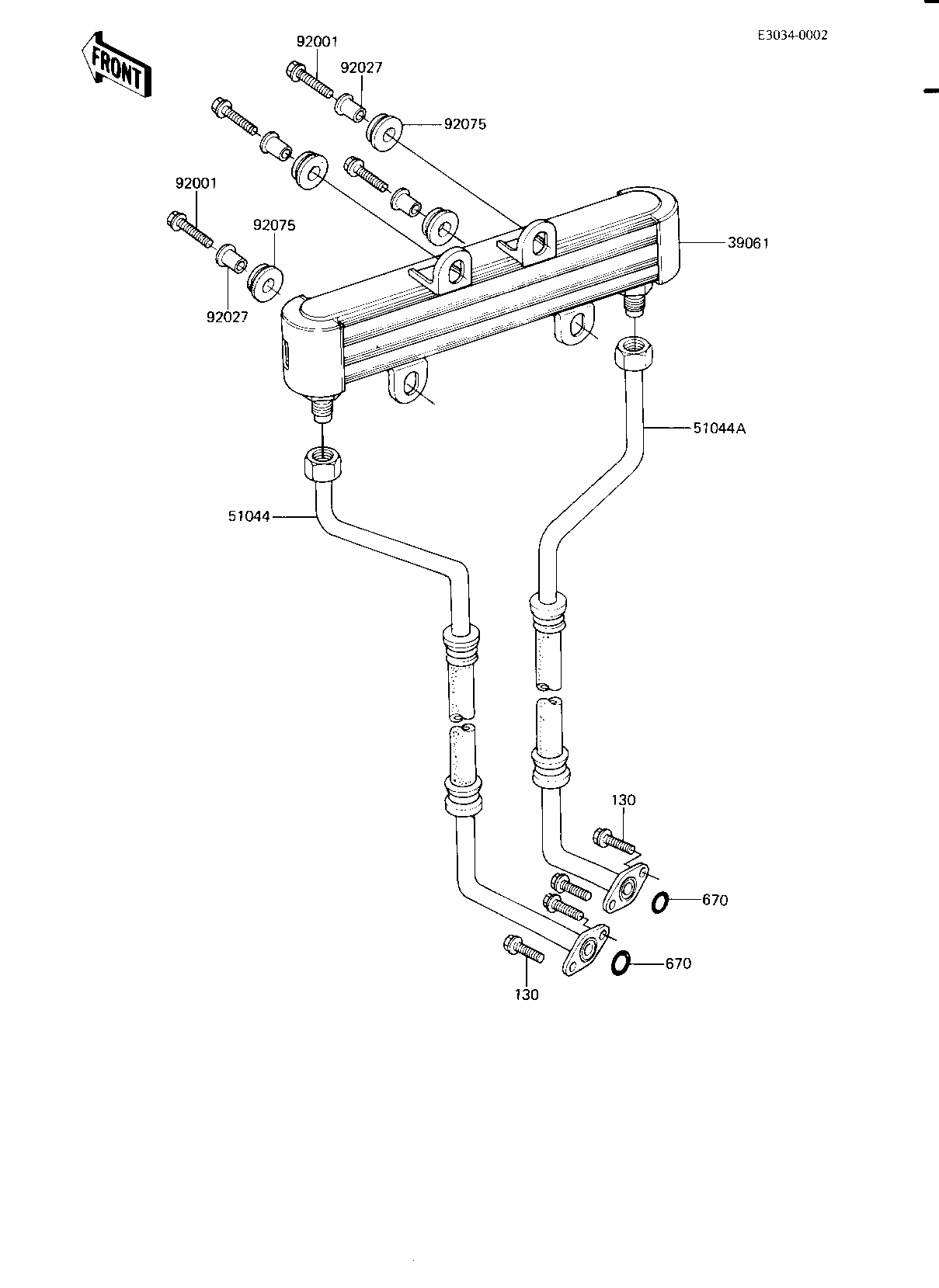

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COOLER,OIL,BLACK | 39061 | 39061-1007-10 | 1 | ||
| TUBE-ASSY,OIL COOLER, | 51044 | 51044-1015 | 1 | ||
| TUBE-ASSY,OIL COOLER, | 51044A | 51044-1016 | 1 | ||
| BOLT-FLANGED,6X20 | 92001 | 130J0620 | 4 | ||
| COLLAR,FLANGED,L=12.1 | 92027 | 92027-1651 | 4 | ||
| DAMPER RUBBER | 92075 | 92075-277 | 4 | ||
| BOLT-FLANGED,6X16 | 130 | 130J0616 | 4 | ||
| UNAVAILABLE IN PRICE BOOK | 670 | 670B201 | 2 |
