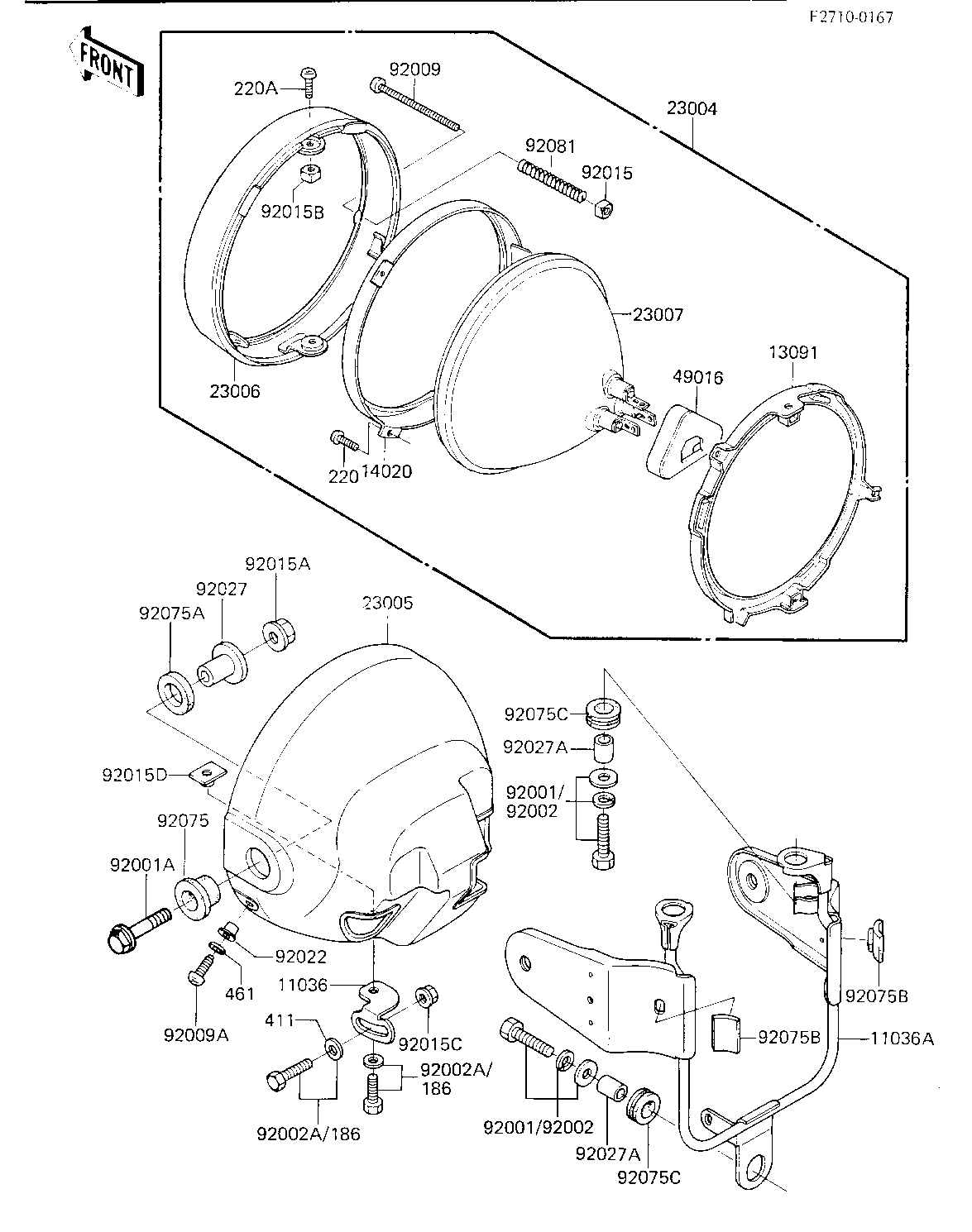

1984 KZ750-K2 (Canada Only) - HEADLIGHT
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-A,HEAD LAMP | 11036 | 11036-1649 | 1 | ||
| BRACKET-A,HEAD LAMP | 11036A | 11036-1687 | 1 | ||
| HOLDER,HEAD LAMP | 13091 | 13091-1160 | 1 | ||
| RETAINER,HEAD LAMP | 14020 | 14020-1018 | 1 | ||
| LAMP-HEAD | 23004 | 23004-1089 | 1 | ||
| BODY-COMP-HEAD LAMP,C | 23005 | 23005-1027 | 1 | ||
| RIM-LAMP,CR PLATED | 23006 | 23006-1020 | 1 | ||
| SEALED BEAM UNIT | 23007 | 23007-1006 | 1 | ||
| DUST COVER,HEAD LAMP | 49016 | 49016-1009 | 1 | ||
| BOLT,FLANGED,8X35 | 92001A | 92001-1910 | 2 | ||
| BOLT,6X25 | 92002 | 92002-1137 | 3 | ||
| BOLT | 92002A | 186B0614 | 2 | ||
| SCREW,FOCUS ADJU.4X52 | 92009 | 92009-1033 | 1 | ||
| SCREW-PAN HEAD,5MM | 92009A | 92011-024 | 2 | ||
| NUT,4MM | 92015 | 23020-018 | 1 | ||
| NUT,8M/M | 92015A | 92015-1014 | 2 | ||
| NUT,5MM | 92015B | 92015-1157 | 2 | ||
| NUT-6MM | 92015C | 92015-1078 | 1 | ||
| NUT-6MM,HEAD LAMP | 92015D | 92015-1231 | 1 | ||
| WASHER | 92022 | 23021-010 | 2 | ||
| COLLAR,HEAD LAMP FITT | 92027 | 92027-1131 | 2 | ||
| COLLAR,REAR FENDER | 92027A | 92027-162 | 3 | ||
| DAMPER,HEAD LAMP FITT | 92075 | 92075-1109 | 2 | ||
| DAMPER,HEAD LAMP FITT | 92075A | 92075-1110 | 2 | ||
| DAMPER RUBBER | 92075B | 92075-1243 | 2 | ||
| DAMPER RUBBER,RR FENR | 92075C | 92075-209 | 3 | ||
| SPRING FOCUS ADJUST | 92081 | 23014-005 | 1 | ||
| SCREW PAN HEAD 3X8 | 220 | 220B0308 | 2 | ||
| SCREW PAN HEAD 5X10 | 220A | 220B0510 | 2 | ||
| WASHER SPRING 5MM | 461 | 461F0500 | 2 |
