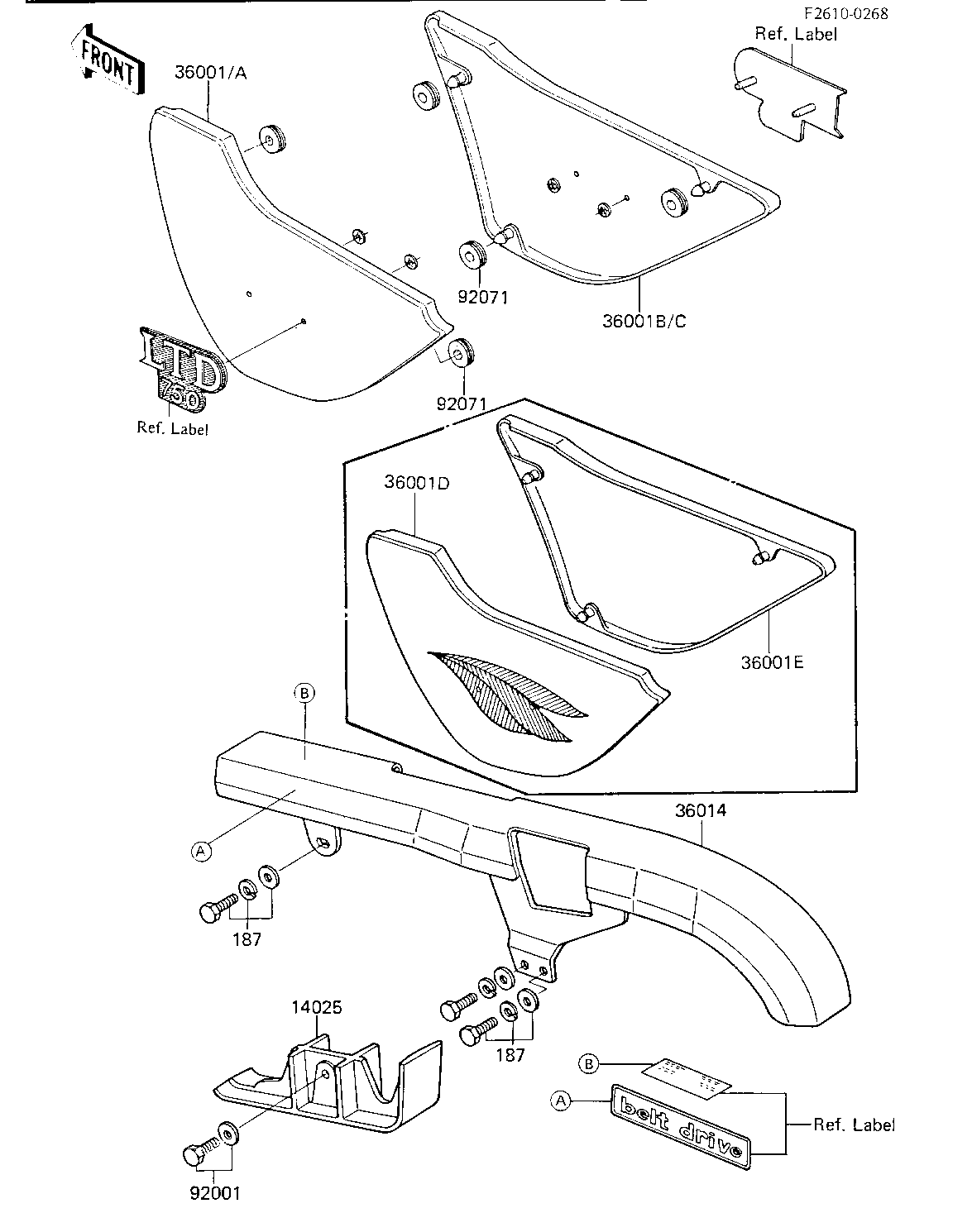

1984 KZ750-K2 (Canada Only) - SIDE COVERS/BELT COVER
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,DRIVE BELT | 14025 | 14025-1381 | 1 | ||
| COVER-SIDE,LH,EBONY (Canada) | 36001D | 36001-5390-H8 | 1 | ||
| COVER-SIDE,RH,EBONY (Canada) | 36001E | 36001-5391-H8 | 1 | ||
| CASE-CHAIN | 36014 | 36014-1066 | 1 | ||
| BOLT,6X16 | 92001 | 92002-1136 | 1 | ||
| GROMMET | 92071 | 92071-056 | 6 | ||
| BOLT-UPSET-WSP | 187 | 187B0616 | 3 |
| COVER,DRIVE BELT | |
| REF # | 14025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,LH,EBONY (Canada) | |
| REF # | 36001D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,EBONY (Canada) | |
| REF # | 36001E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-CHAIN | |
| REF # | 36014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X16 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WSP | |
| REF # | 187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
