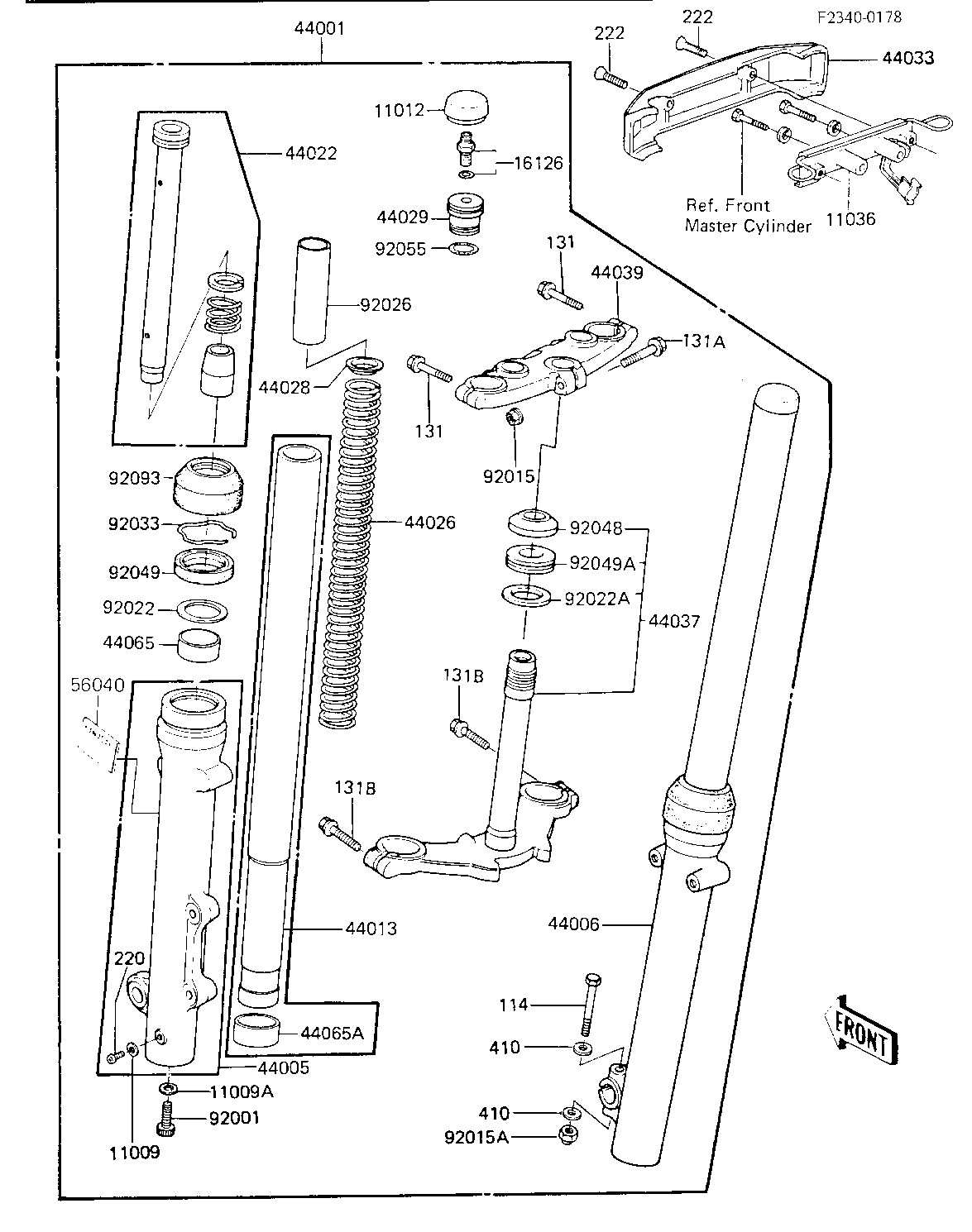

1984 KZ750-K2 (Canada Only) - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET FORK DRAIN PLG 11009 44045-002 2
GASKET,FORK CYLINDER 11009A 44045-057 2
CAP,FORK TOP 11012 11012-1239 2
BRACKET-A 11036 11036-1253 1
VALVE,AIR 16126 16126-1050 2
FORK-FRONT 44001 44001-1388 1
PIPE-LEFT FORK OUTER 44005 44005-1144 1
PIPE-RIGHT FORK OUTER 44006 44006-1144 1
PIPE-FORK INNER 44013 44013-1121 2
CYLINDER-FORK 44022 44022-1097 2
SPRING-FRONT FORK 44026 44026-1202 2
GUIDE,FORK SPRING 44028 44028-033 2
SEAT-FORK SPRING 44029 44029-1037 2
COVER,FORK 44033 44033-1054 2
STEM,STEERING 44037 44037-1050 1
HOLDER-FORK UPPER 44039 44039-1047 1
BUSHING-FRONT FORK 44065 44065-1016 2
BUSHING-FRONT FORK,IN 44065A 44065-1060 2
LABEL-WARNING,FRONT F 56040 56040-1110 1
BOLT-FORK CYLINDER 92001 44041-040 2
NUT-8MM 92015 92015-1022 1
NUT,LOCK,8MM 92015A 92015-1124 1
WASHER 92022 92022-1275 2
WASHER,PLAIN 92022A 92022-231 1
SPACER,FRONT FORK SPR 92026 92026-1142 2
RING-SNAP,FORK OIL 92033 92033-1100 2
CONE,STEERING STEM 92048 92047-012 1
SEAL-OIL,FRONT FORK 92049 92049-1101 2
OIL SEAL,STEERING STM 92049A 92056-003 1
"O" RING,FORK TOP 92055 92055-1012 2
DUST SHIELD,FORK 92093 92093-1037 2
BOLT,HEX HEAD,8X55 114 114G0855 1
BOLT,FLANGED,8X45 131 131G0845 2
BOLT,FLANGED,8X55 131A 130G0855 1
BOLT,FLANGED,10X40 131B 131G1040 2
SCREW PAN HEAD 4X8 220 220B0408 2
UNAVAILABLE IN PRICE BOOK 222 22200518 2
WASHER PLAIN 8MM 410 410B0800 2
