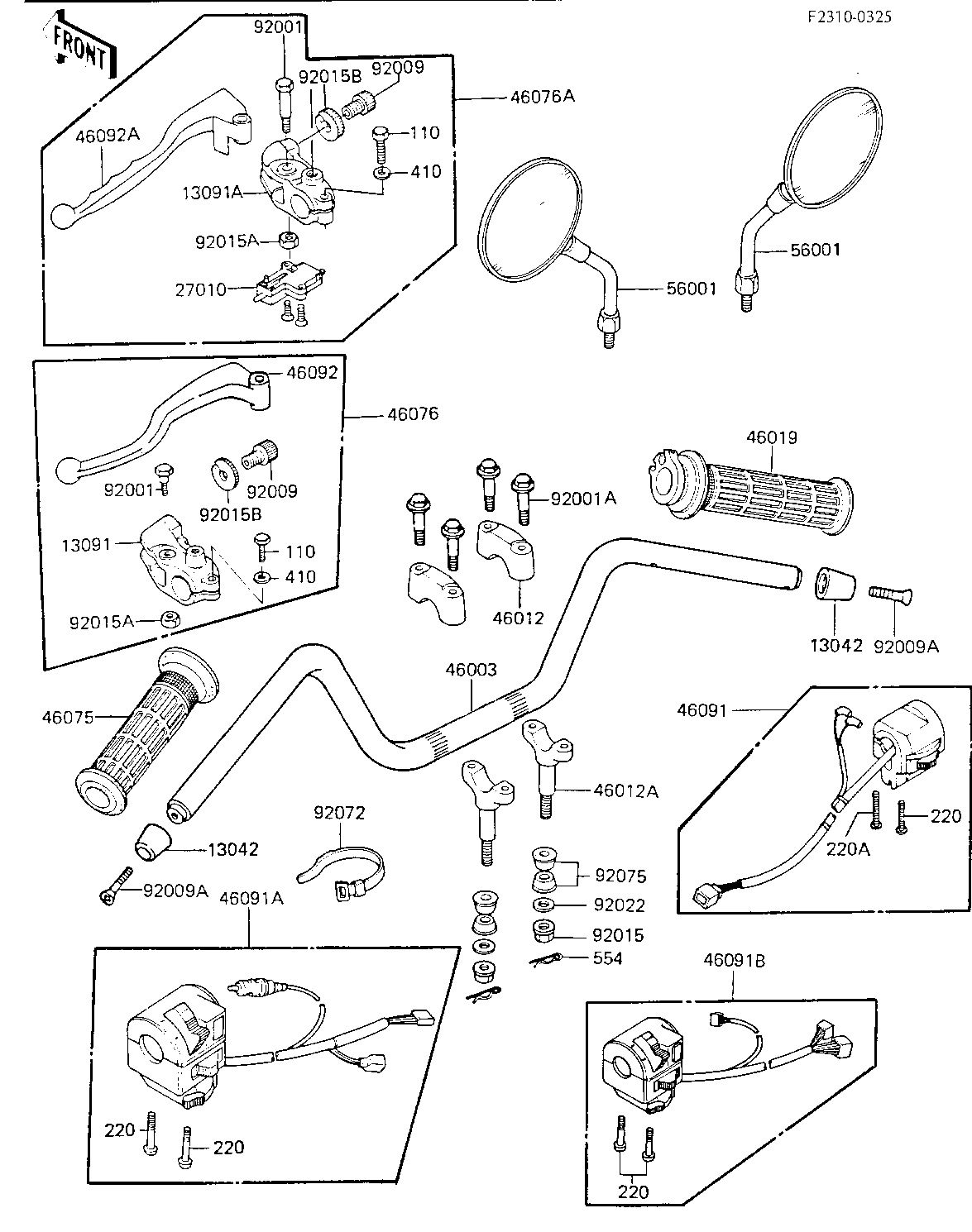

1984 KZ750-K2 (Canada Only) - HANDLEBAR
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WEIGHT,HANDLE | 13042 | 13042-1005 | 2 | ||
| HOLDER,CLUTCH LEVER | 13091A | 13091-1272 | 1 | ||
| SWITCH,CLUTCH | 27010 | 27010-1094 | 1 | ||
| HANDLE | 46003 | 46003-1114 | 1 | ||
| HOLDER-HANDLEBAR | 46012 | 46012-008 | 2 | ||
| HOLDER-HANDLEBAR LOW | 46012A | 46012-010 | 2 | ||
| GRIP-ASSY,THROTTLE | 46019 | 46019-1021 | 1 | ||
| GRIP,LH | 46075 | 46075-1028 | 1 | ||
| LEVER-ASSY-GRIP,CLUTC | 46076A | 46076-1105 | 1 | ||
| HOUSING-ASSY-CNTRL,RH | 46091 | 46091-1214 | 1 | ||
| HOUSING-ASSY-CONTROL,LH (Canad | 46091B | 46091-1337 | 1 | ||
| LEVER-GRIP,CLUTCH | 46092A | 46092-1103 | 1 | ||
| MIRROR-ASSY | 56001 | 56001-1340 | 2 | ||
| BOLT,CLUTCH LEVER,BLA | 92001 | 92001-1548 | 1 | ||
| BOLT,FLANGED,8X35 | 92001A | 92001-1910 | 4 | ||
| SCREW,CABLE ADJUST,8 | 92009 | 92009-1134 | 1 | ||
| SCREW,HUNDLE WEIGHT | 92009A | 92009-1257 | 2 | ||
| NUT,FLANGED,10MM | 92015 | 92015-1428 | 2 | ||
| NUT,LOCK,6MM,BLACK | 92015A | 92015-1191 | 2 | ||
| NUT,CABLE ADJUST LOCK | 92015B | 92015-1197 | 1 | ||
| WASHER-HANDLEBAR FIT | 92022 | 92022-196 | 2 | ||
| BAND,SHORT | 92072 | 92072-030 | 4 | ||
| DAMPER RUBBER,HANDLE | 92075 | 92075-275 | 4 | ||
| UNAVAILABLE IN PRICE BOOK | 110 | 11000622 | 1 | ||
| SCREW-PAN-CROS | 220 | 220B0535 | 3 | ||
| SCREW-PAN-CROS | 220A | 220B0540 | 1 | ||
| WASHER PLAIN | 410 | 410F0600 | 1 | ||
| PIN,SNAP | 554 | 554A0800 | 2 |
