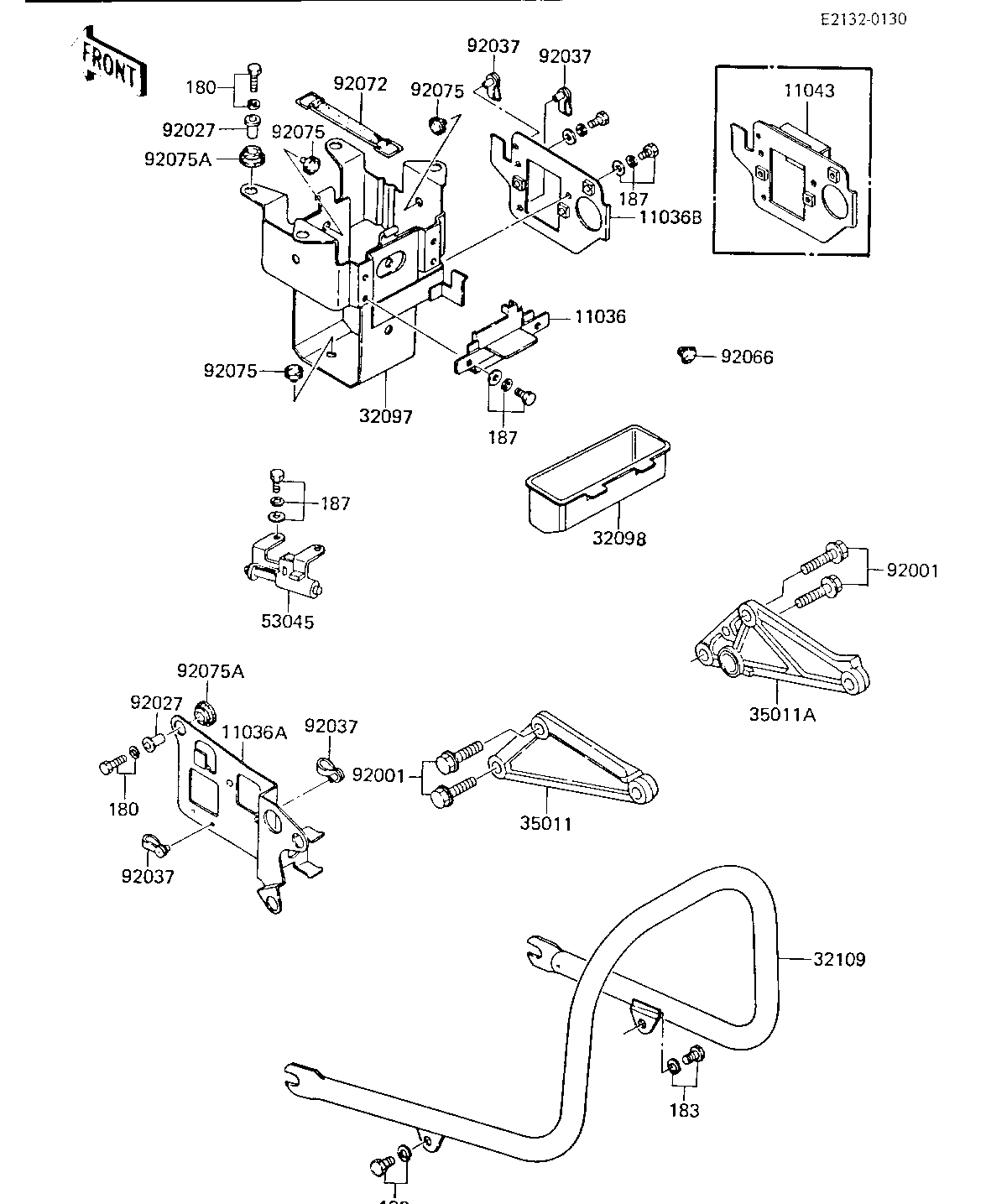

1984 KZ750-K2 (Canada Only) - BATTERY CASE/TOOL CASE
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-A | 11036 | 11036-1161 | 1 | ||
| BRACKET-A,ELECTRIC BA | 11036A | 11036-1706 | 1 | ||
| BRACKET (Canada) | 11043 | 11043-1685 | 1 | ||
| CASE-BATTERY | 32097 | 32097-1060 | 1 | ||
| CASE,TOOL | 32098 | 32098-028 | 1 | ||
| GRIP-FRAME | 32109 | 32109-1038 | 1 | ||
| STAY,MUFFLER,LH | 35011 | 35011-1076 | 1 | ||
| STAY,MUFFLER,RH | 35011A | 35011-1077 | 1 | ||
| HOOK ASSY,HELMET | 53045 | 53045-1001 | 1 | ||
| BOLT,8X28 | 92001 | 92001-1095 | 4 | ||
| COLLAR | 92027 | 92027-194 | 7 | ||
| CLAMP | 92037 | 92037-1290 | 4 | ||
| PLUG,9.5X8 | 92066 | 92066-1077 | 1 | ||
| BAND,BATTERY | 92072 | 92072-071 | 1 | ||
| DAMPER RUBBER | 92075 | 92075-078 | 6 | ||
| DAMPER RUBBER | 92075A | 92075-277 | 7 | ||
| BOLT-UPSET-WS,6X22 | 180 | 180B0622 | 7 | ||
| BOLT 8X14 | 183 | 183B0814 | 2 | ||
| BOLT 6X12 | 187 | 187B0612 | 6 |
