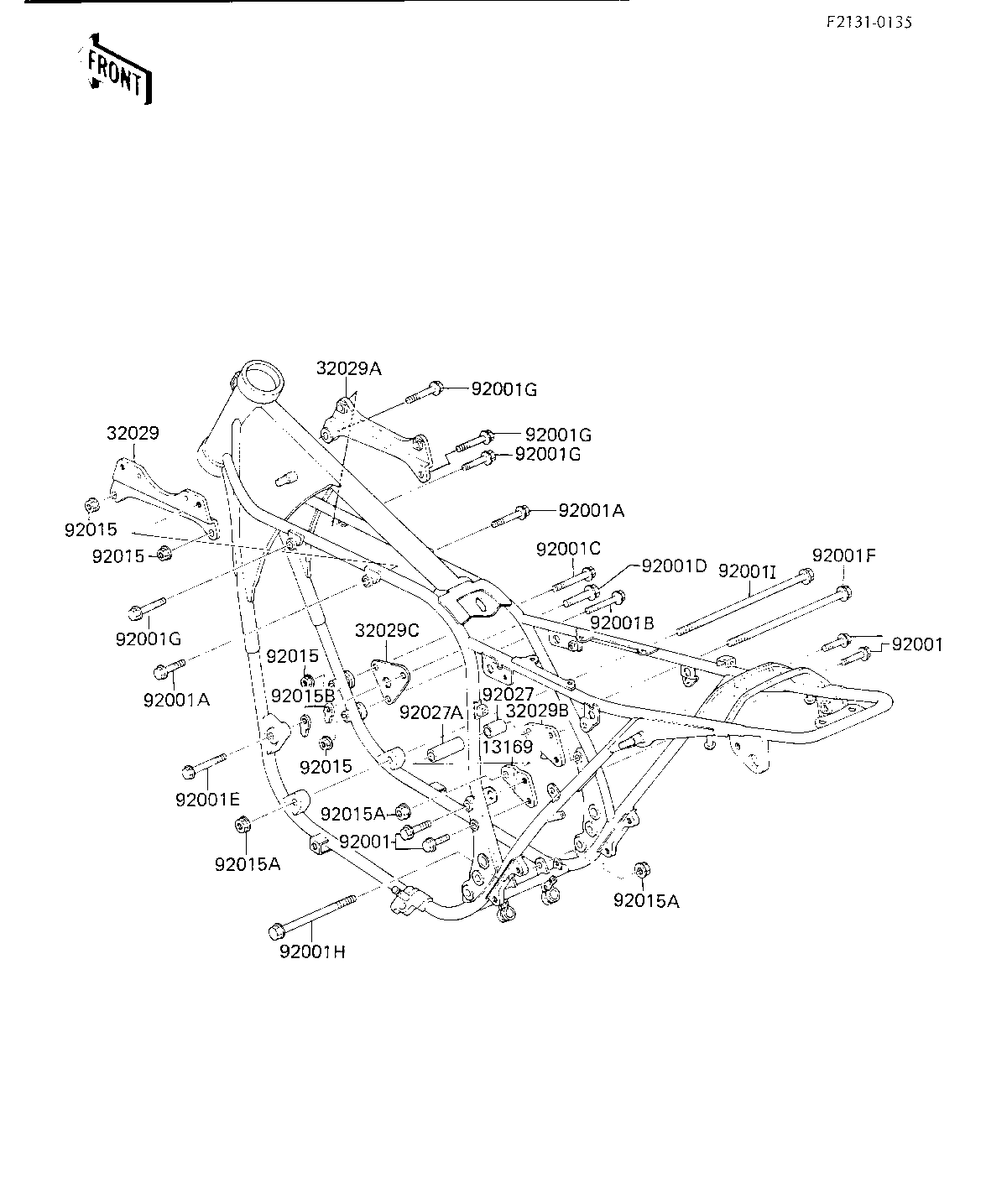

1984 KZ750-K2 (Canada Only) - FRAME FITTINGS
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE,REAR ENG MOUNT | 13169 | 13169-1048 | 1 | ||
| BRACKET-ENGINE | 32029 | 32029-1167 | 1 | ||
| BRACKET-ENGINE | 32029A | 32029-1168 | 1 | ||
| BRACKET-ENGINE,RR,RH | 32029B | 32029-1220 | 1 | ||
| PLATE,ENG FIT,FRONT | 32029C | 32030-047 | 1 | ||
| BOLT,FLANGED,8X35 | 92001 | 92001-1577 | 4 | ||
| BOLT,FLANGED,8X45 | 92001A | 92001-1579 | 2 | ||
| BOLT,FLANGED,8X60 | 92001B | 92001-1581 | 1 | ||
| BOLT FLANGED,8X70 | 92001C | 92001-1583 | 1 | ||
| BOLT,10X50 | 92001D | 92001-1584 | 1 | ||
| BOLT,FLANGED,10X70 | 92001E | 92001-1618 | 1 | ||
| BOLT,FLANGED,10X255 | 92001F | 92001-1609 | 1 | ||
| BOLT | 92001G | 92001-1639 | 4 | ||
| BOLT,FLANGED,10X160 | 92001H | 92001-1653 | 1 | ||
| BOLT,FLANGED,10X325 | 92001I | 92001-1654 | 1 | ||
| NUT,8M/M | 92015 | 92015-1014 | 4 | ||
| NUT,FLANGED,10MM | 92015A | 92015-1428 | 3 | ||
| NUT | 92015B | 92016-055 | 2 | ||
| COLLAR,12.2X22X30.5 | 92027 | 92027-1478 | 1 | ||
| COLLAR,12.2X22X62 | 92027A | 92027-1521 | 1 |
| PLATE,REAR ENG MOUNT | |
| REF # | 13169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE | |
| REF # | 32029 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE | |
| REF # | 32029A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE,RR,RH | |
| REF # | 32029B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,ENG FIT,FRONT | |
| REF # | 32029C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X35 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X45 | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X60 | |
| REF # | 92001B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT FLANGED,8X70 | |
| REF # | 92001C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X50 | |
| REF # | 92001D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X70 | |
| REF # | 92001E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X255 | |
| REF # | 92001F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92001G |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X160 | |
| REF # | 92001H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X325 | |
| REF # | 92001I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8M/M | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,10MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,12.2X22X30.5 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,12.2X22X62 | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
