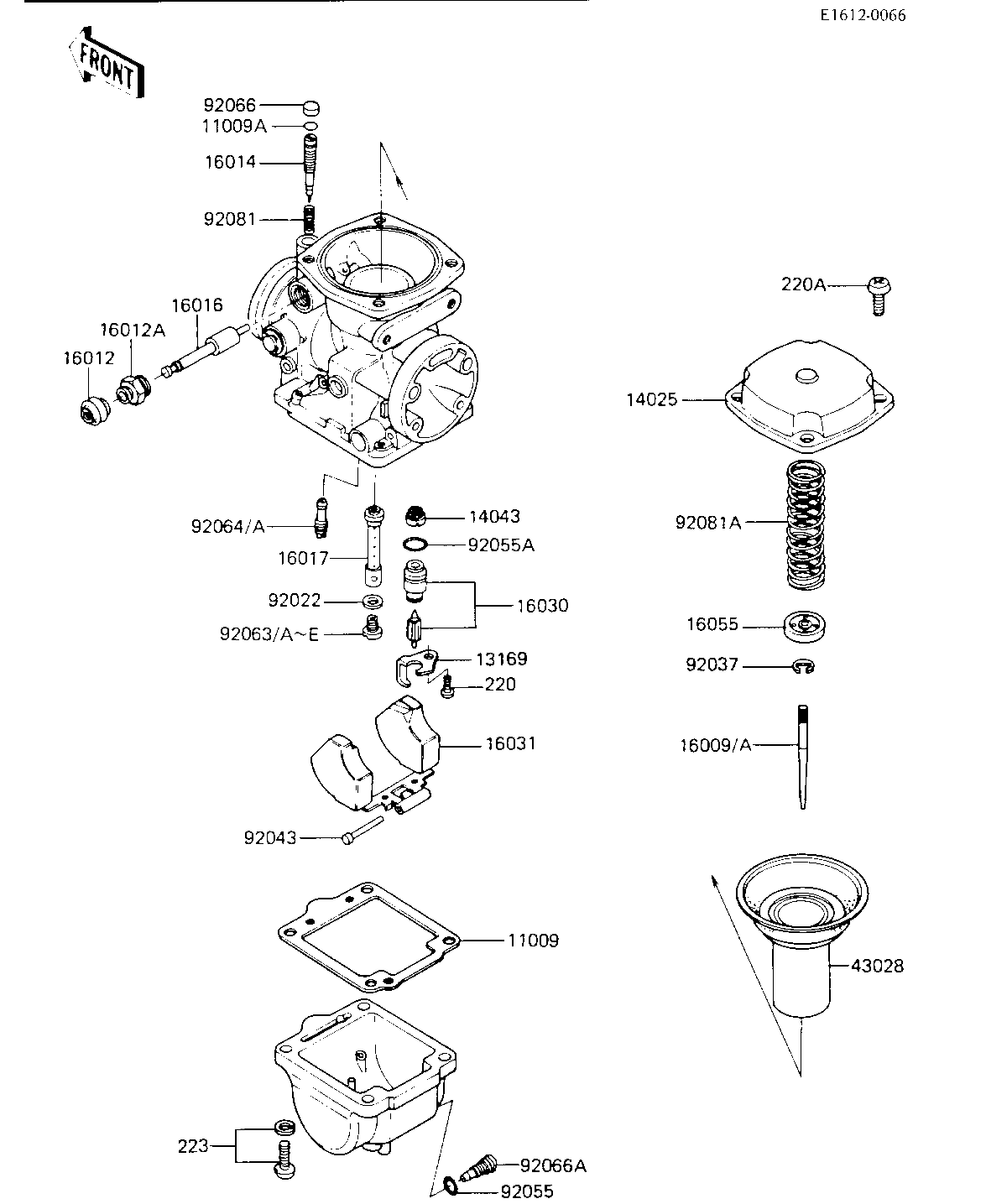

1984 KZ750-K2 (Canada Only) - CARBURETOR PARTS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT CHAMBER 11009 11009-1241 2
"O" RING 11009A 16038-022 2
PLATE 13169 13169-1482 2
COVER 14025 14025-1395 2
FILTER,FLOAT VALVE 14043 14043-1010 2
NEEDLE-JET-5C50 16009 16009-1100 2 US
NEEDLE-JET-5C50 16009A 16009-1100 2 CN
CAP-STARTER PLUNGER 16012 16012-1010 2
CAP-STARTER PLUNGER 16012A 16012-1011 2
SCREW-PILOT AIR 16014 16014-1014 2
PLUNGER 16016 16016-1019 2
JET-NEEDLE 16017 16017-1127 2
VALVE-FLOAT 16030 16030-1016 2
FLOAT 16031 16031-1013 2
PLATE,NEEDLE 16055 16055-010 2
DIAPHRAGM 43028 43028-1032 2
WASHER MAIN JET 92022 16034-001 2
CIRCLIP 92037 16008-014 2
PIN,FLOAT 92043 16032-008 2
"0" RING 92055 92055-044 2
"0" RING 92055A 92055-1105 2
JET-MAIN NO 115R 92063 92063-076 2 CN
MAIN JET,#110R 92063A 92063-1038 2 (RACING USE ONLY)
JET-MAIN,#A120 92063B 92063-1106 2 (RACING USE ONLY)
JET-MAIN,#117.5 92063C 92063-1107 2 (RACING USE ONLY)
JET-MAIN,#A112.5 92063E 92063-1110 2 (RACING USE ONLY)
JET-PILOT 92064 92064-1039 2 US
SCREW,DRAIN 92066A 92066-1064 2
SPRING,PILOT SCREW 92081 16022-016 2
SPRING,DPHRGM VALVE 92081A 92081-1363 2
SCREW PAN HEAD 4X6 220 220B0406 2
SCREW PAN HEAD 5X10 220A 220B0510 8
SCREW-PAN-WS-CROS 223 223B0516 8
