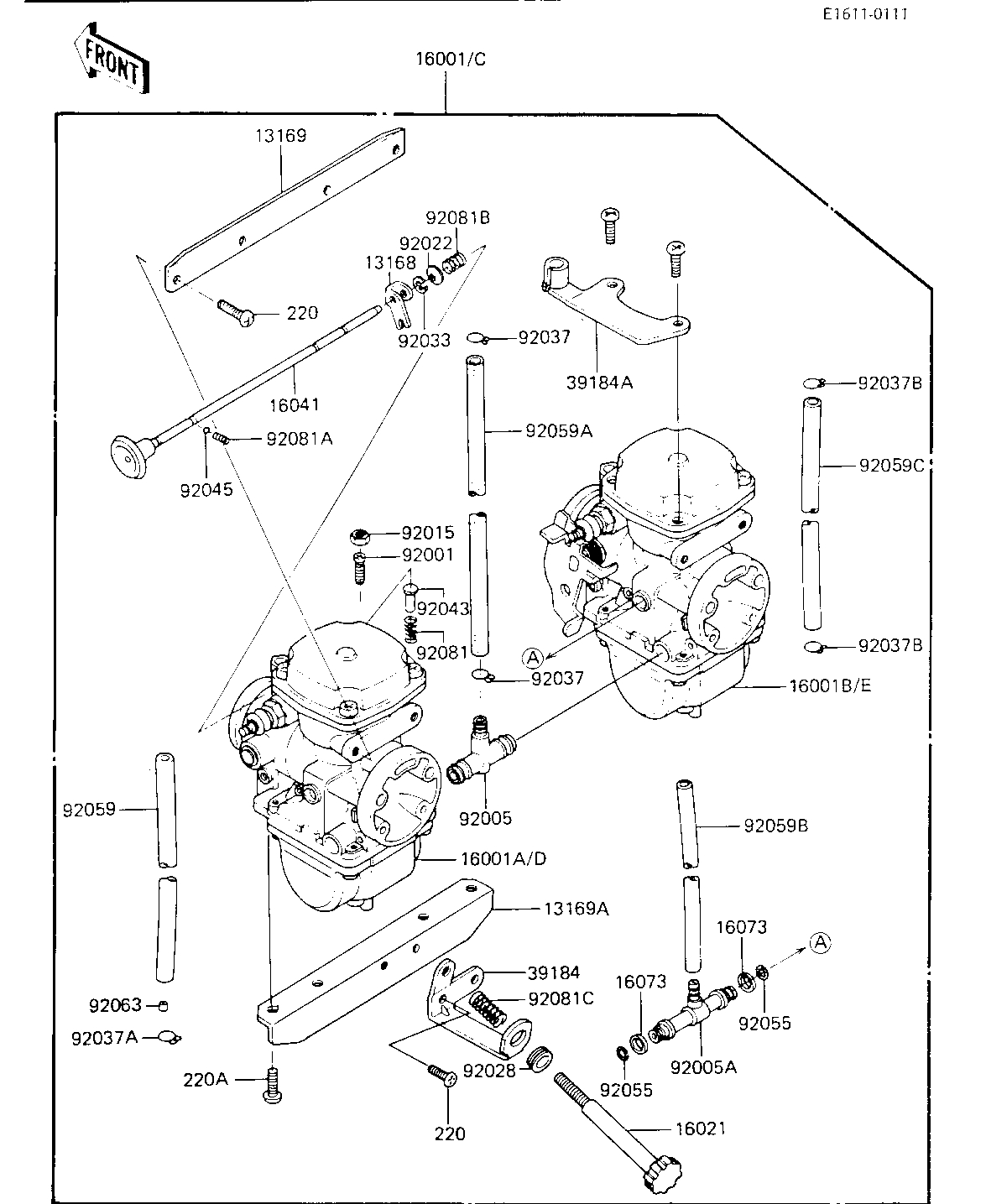

1984 KZ750-K2 (Canada Only) - CARBURETOR ASSY

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER,CHOCK 13168 13168-1091 2
PLATE 13169 13169-1466 1
UNAVAILABLE IN PRICE BOOK 13169A 16001-1467 1
CARBURETOR (Canada) 16001C 16001-1774 1 CN
CARBURETOR,LH (Canada) 16001D 16001-1775 1 CN
CARBURETOR,RH (Canada) 16001E 16001-1776 1 CN
SCREW-THROTTLE STOP 16021 16021-1035 1
SHAFT-CARBURETOR 16041 16041-1025 1
INSULATOR 16073 16073-1013 2
BRACKET-ASSY,IDLING A 39184 39184-1007 1
BRACKET-ASSY 39184A 39184-1010 1
BOLT,ADJUSTING 92001 92001-1447 1
FITTING 92005 92005-1046 1
FITTING 92005A 92005-1047 1
NUT,THROTTLE VLV ADST 92015 92015-1119 1
WASHER,SPRING 92022 92022-1255 2
BUSHING 92028 92028-1071 1
RING-SNAP,E 92033 92033-1066 2
CLAMP,HOSE 92037 92037-1184 2
CLAMP,TUBE (Canada) 92037A 92037-1235 1 CN
CLAMP,BREATHER HOSE 92037B 92037-174 2 CN
PIN,THROTTLE VALVE 92043 92043-1079 1
BALL,STEEL,1/8" 92045 600A0400 2
"0" RING 92055 92055-510 2
HOSE,AIR VENT,4.5X250 92059 92059-1096 1 CN
TUBE,7.5X12.5X250 92059A 92059-1187 1
TUBE 92059B 92059-1206 1
TUBE,5X9X250 (Canada) 92059C 92059-1207 1 CN
JET-MAIN (Canada) 92063 92063-1097 1 CN
SPRING,THROTTLE VALVE 92081 92081-1259 1
SPRING,FAST IDLE SHFT 92081A 92081-1260 2
SPRING,CHOCK SHAFT 92081B 92081-1364 2
SPRING 92081C 92081-1417 1
SCREW PAN HEAD 5X8 220 220B0508 5
SCREW PAN HEAD 6X14 220A 220B0614 4
