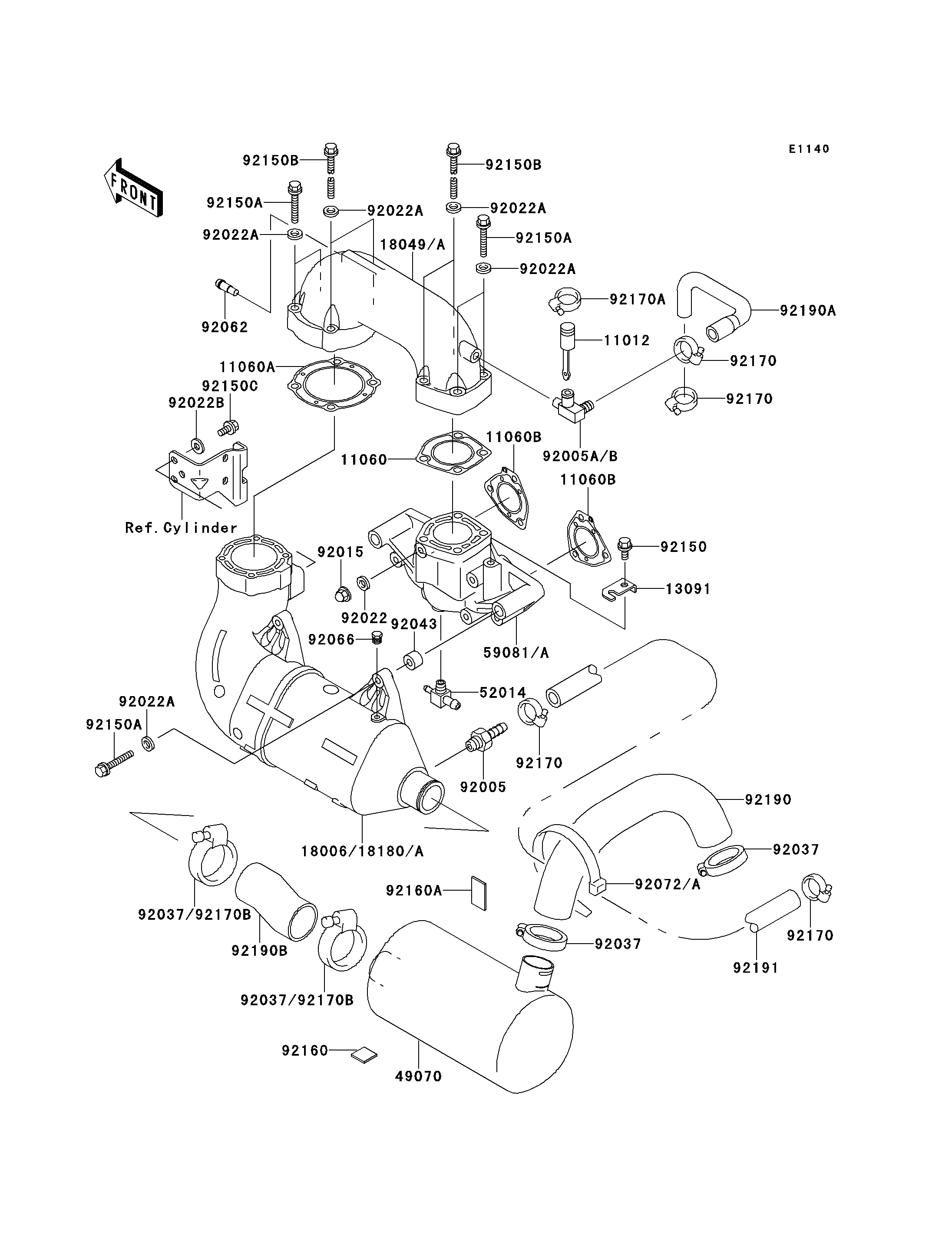

1995 750 ZXi - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11012
11060
11060A
11060B
11060B
13091
18006
18049
49070
52014
59081
92005
92005A
92015
92022
92022A
92022A
92022A
92022A
92022A
92022B
92037
92037
92037
92037
92043
92062
92066
92072
92072A
92150
92150A
92150A
92150A
92150B
92150B
92150C
92160
92160A
92170
92170
92170
92170
92170A
92190
92190A
92190B
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-3757 1
GASKET 11060 11060-3754 1
GASKET 11060A 11060-3755 1
GASKET,EXHAUST MANIFOLD 11060B 11060-3759 2
HOLDER 13091 13091-3791 1
BODY-MUFFLER 18006 18006-3713 1
PIPE-EXHAUST 18049 18049-3749 1
MUFFLER-COMP 49070 49070-3725 1
ELBOW 52014 52014-3711 1
MANIFOLD-EXHAUST 59081 59081-3714 1
FITTING,HOSE 92005 92005-3712 1
FITTING 92005A 92005-3715 1
NUT,CAP,8MM 92015 92015-1371 6
WASHER,8.2X18X1.5 92022 92022-1964 6
WASHER,10.2X20X1.5 92022A 92022-3742 10
WASHER,8.2X18X1.5 92022B 92022-3743 2
CLAMP 92037 92037-3738 4
PIN,11X14X12.3 92043 92043-1266 2
NOZZLE 92062 92062-3705 1
PLUG,CYLINDER HEAD 92066 92066-3001 1
BAND,L=292.1 92072 92072-3509 1
BAND 92072A 92072-3799 1
BOLT,8X16 92150 92150-3722 1
BOLT,10X50 92150A 92150-3819 6
BOLT,10X125 92150B 92150-3825 4
BOLT,8X16 92150C 92150-3846 2
DAMPER,25X25 92160 92160-3864 1
DAMPER,40X25 92160A 92160-3865 1
CLAMP 92170 92170-3718 4
CLAMP 92170A 92170-3729 1
TUBE,MUFFLER-TAILPIPE 92190 92190-3938 1
TUBE,HEAD-EXHAUSTPIPE 92190A 92190-3939 1
TUBE,CHAMBER-MUFFLER 92190B 92190-3986 1
TUBE,TAIL-CHAMBER 92191 92191-3714 1
