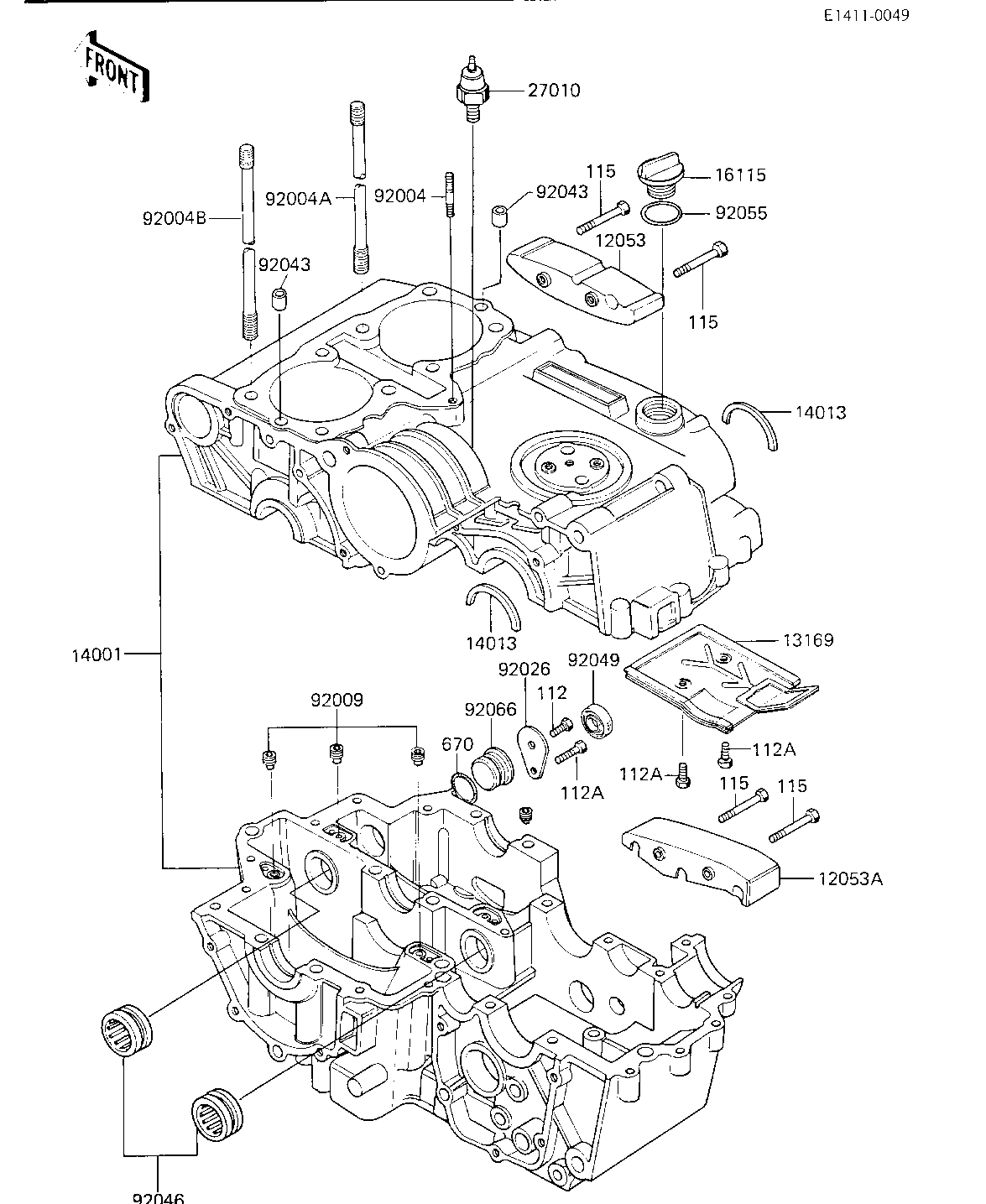

1984 KZ750-K2 (Canada Only) - CRANKCASE
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SLIPPER,PRIMARY CHAIN | 12053 | 12053-020 | 1 | ||
| SLIPPER,PRIMARY CHAIN | 12053A | 12053-021 | 1 | ||
| PLATE,BREATHER | 13169 | 14068-008 | 1 | ||
| SET-CRANKCASE | 14001 | 14001-5092 | 1 | ||
| RING BEARING SETTING | 14013 | 14013-004 | 2 | ||
| CAP-OIL FILLER | 16115 | 16115-1009 | 1 | ||
| SWITCH,OIL LEVEL | 27010 | 27010-1057 | 1 | ||
| STUD | 92004 | 92004-059 | 1 | ||
| STUD,10X190 | 92004A | 92004-1002 | 4 | ||
| STUD,10X158 | 92004B | 92004-1003 | 4 | ||
| SCREW,SLOTTED | 92009 | 92013-007 | 4 | ||
| SPACER | 92026 | 92026-115 | 1 | ||
| PIN,11X14X12.3 | 92043 | 92043-1266 | 2 | ||
| BEARING,NEEDLE | 92046 | 92046-048 | 4 | ||
| OIL SEAL,R.H CRNKSFT | 92049 | 92050-065 | 1 | ||
| "0" RING,31MM | 92055 | 92055-049 | 1 | ||
| PLUG | 92066 | 92066-049 | 1 | ||
| BOLT-UPSET,6X8 | 112 | 112B0608 | 1 | ||
| BOLT-UPSET 6X14 | 112A | 112B0614 | 3 | ||
| BOLT,SMALL UPSET | 115 | 115G0835 | 4 | ||
| "0" RING | 670 | 670B3030 | 1 |
| SLIPPER,PRIMARY CHAIN | |
| REF # | 12053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLIPPER,PRIMARY CHAIN | |
| REF # | 12053A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,BREATHER | |
| REF # | 13169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SET-CRANKCASE | |
| REF # | 14001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING BEARING SETTING | |
| REF # | 14013 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP-OIL FILLER | |
| REF # | 16115 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,OIL LEVEL | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STUD | |
| REF # | 92004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STUD,10X190 | |
| REF # | 92004A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| STUD,10X158 | |
| REF # | 92004B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,SLOTTED | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SPACER | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,11X14X12.3 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING,NEEDLE | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,R.H CRNKSFT | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,31MM | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X8 | |
| REF # | 112 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET 6X14 | |
| REF # | 112A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,SMALL UPSET | |
| REF # | 115 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| "0" RING | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
