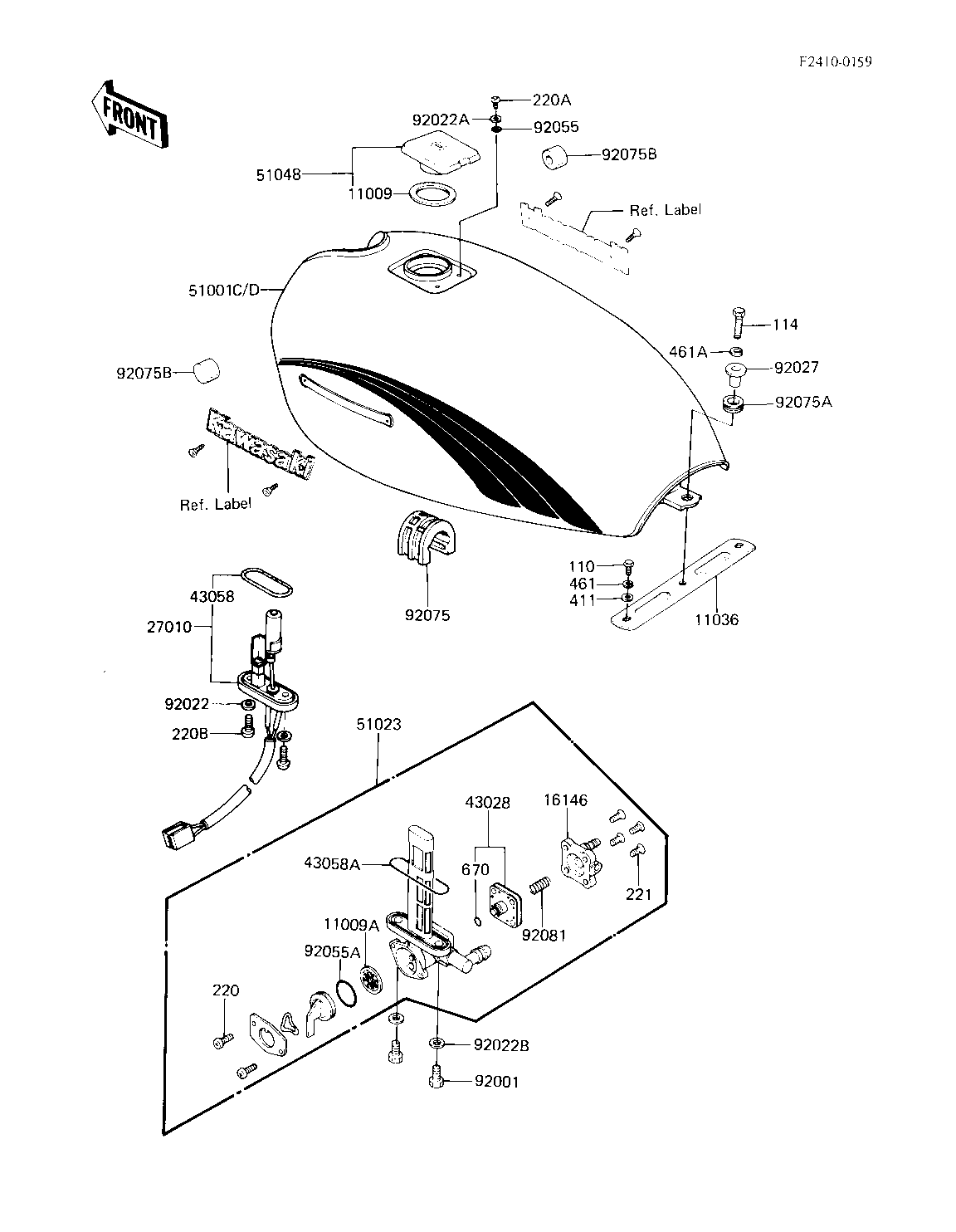

1983 LTD Shaft - FUEL TANK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL TANK CAP 11009 11009-1051 1
GASKET,FUEL TAP 11009A 11009-1188 1
BRACKET-A,FUEL TANK 11036 11036-1321 1
COVER ASSY,FUEL TAP 16146 16146-1009 1
SWITCH,FUEL LEVEL 27010 27010-1055 1
DIAPHRAGM 43028 43028-1033 1
"O" RING,FUEL SWITCH 43058 43058-1004 1
"O" RING 43058A 51039-003 1
TANK-COMP-FUEL,L.M.RE 51001C 51001-5262-E2 1
TANK-COMP-FUEL,EBONY 51001D 51001-5262-H8 1
TAP-ASSY,FUEL 51023 51023-1186 1
CAP ASSY TANK 51048 51048-1018 1
BOLT,6X20,FUEL TAP 92001 92001-1091 2
WASHER,5.2X10X1.5 92022 92022-1023 2
WASHER,PLAIN 92022A 92022-1038 2
WASHER-PLAIN 92022B 92022-183 2
COLLAR,ENGINE HEAD 92027 92027-1116 1
"0" RING 92055 92055-1023 2
"0" RING,FUEL TAP LEV 92055A 92055-1085 1
DAMPER,FUEL TANK 92075 92075-1065 1
DAMPER RUBBER,MUFFLER 92075A 92075-1086 1
DAMPER RUBBER,FL TANK 92075B 92075-125 2
SPRING,DIAPHRAGM VALV 92081 92081-1240 1
BOLT-UPSET,6X12 110 112G0612 2
BOLT-SMALL-UPSET,8X30 114 115G0830 1
SCREW PAN HEAD 3X8 220 220B0308 2
SCREW PAN HEAD 5X10 220A 220B0510 2
SCREW-PAN-CROS 220B 220B0514 2
SCREW-CSK-CROS,4X14 221 221B0414 4
WASHER PLAIN 6MM 411 411B0600 2
WASHER SPRING 6MM 461 461F0600 2
WASHER SPRING 8MM 461A 461F0800 1
"O" RING,4MM 670 670B1504 1
