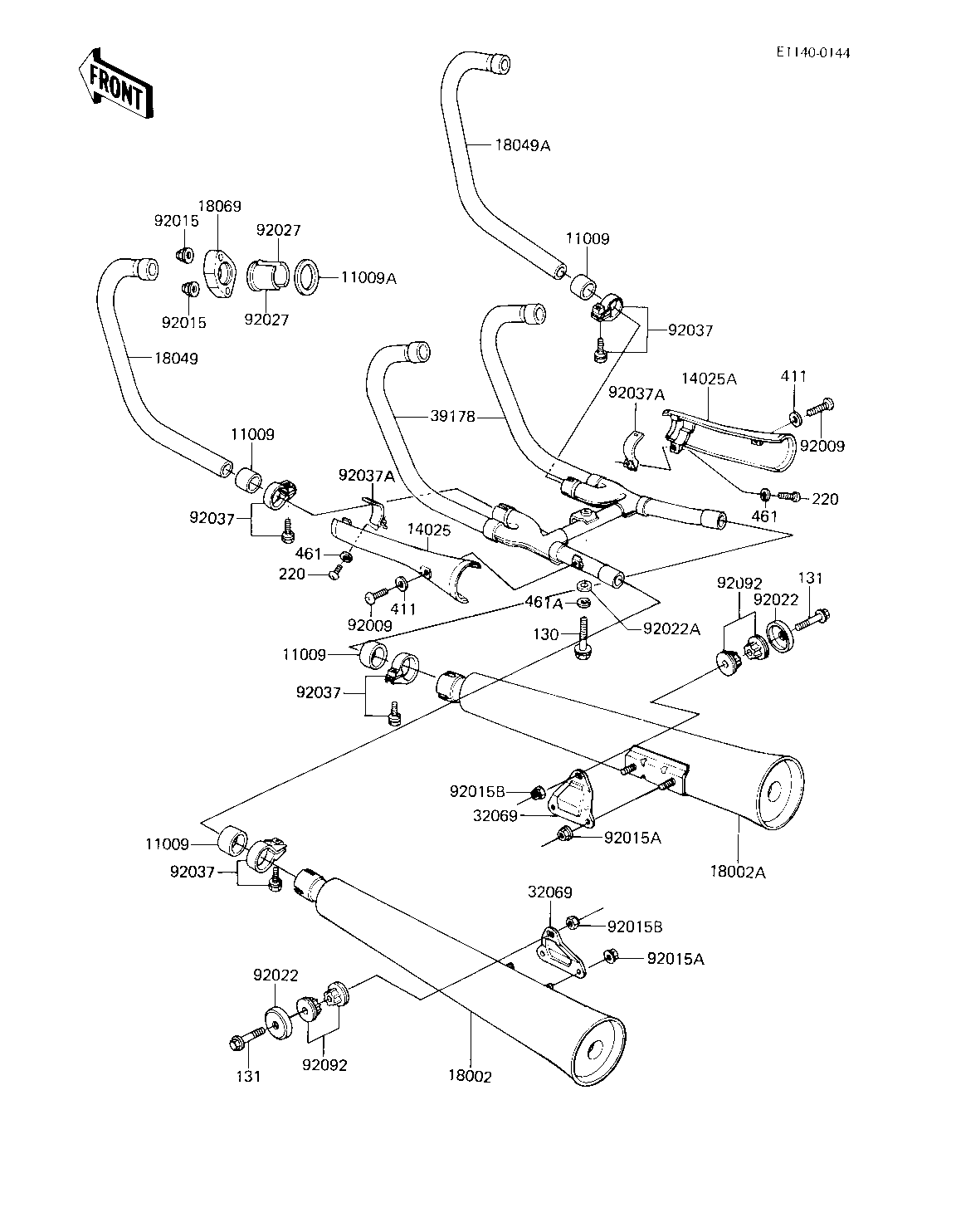

1983 LTD Shaft - MUFFLERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE C 11009 11009-1667 4
GASKET,EXHAUST PIPE H 11009A 11009-1866 4
COVER,MUFFLER,LH,CR P 14025 14025-1580 1
COVER,MUFFLER,RH,CR P 14025A 14025-1581 1
BODY-COMP-MUFFLER,LH 18002 18002-1420 1
BODY-COMP-MUFFLER,RH 18002A 18002-1421 1
PIPE-EXHAUST,#2 18049 18049-1162 1
PIPE-EXHAUST,#3 18049A 18049-1163 1
HOLDER-EXHAUST PIPE 18069 18069-1025 4
BRACKET-MUFFLER 32069 32069-1099 2
MANIFOLD-COMP-EXHAUST 39178 39178-1018 1
SCREW,PAN HEAD,6X8 92009 92011-039 2
NUT-6MM 92015 92015-1078 8
NUT-8MM 92015A 92015-1143 4
NUT,LOCK,10MM 92015B 92019-021 2
WASHER,CUP TYPE,BLACK 92022 92022-1313 2
WASHER-PLN,10X22X3.2 92022A 92022-176 1
COLLAR,EXHAUST PIPE 92027 92027-1142 8
CLAMP,42MM 92037 92037-1349 4
CLAMP,MUFFLER COVER,C 92037A 92037-1373 2
BUSHING-RUBBER 92092 92092-1013 4
BOLT,FLANGED,8X50 130 130G0850 1
BOLT-FLANGED,10X55 131 131J1055 2
SCREW PAN HEAD 6X16 220 220B0616 2
WASHER PLAIN 6MM 411 411B0600 2
WASHER SPRING 6MM 461 461F0600 2
WASHER SPRING 8MM 461A 461F0800 1
