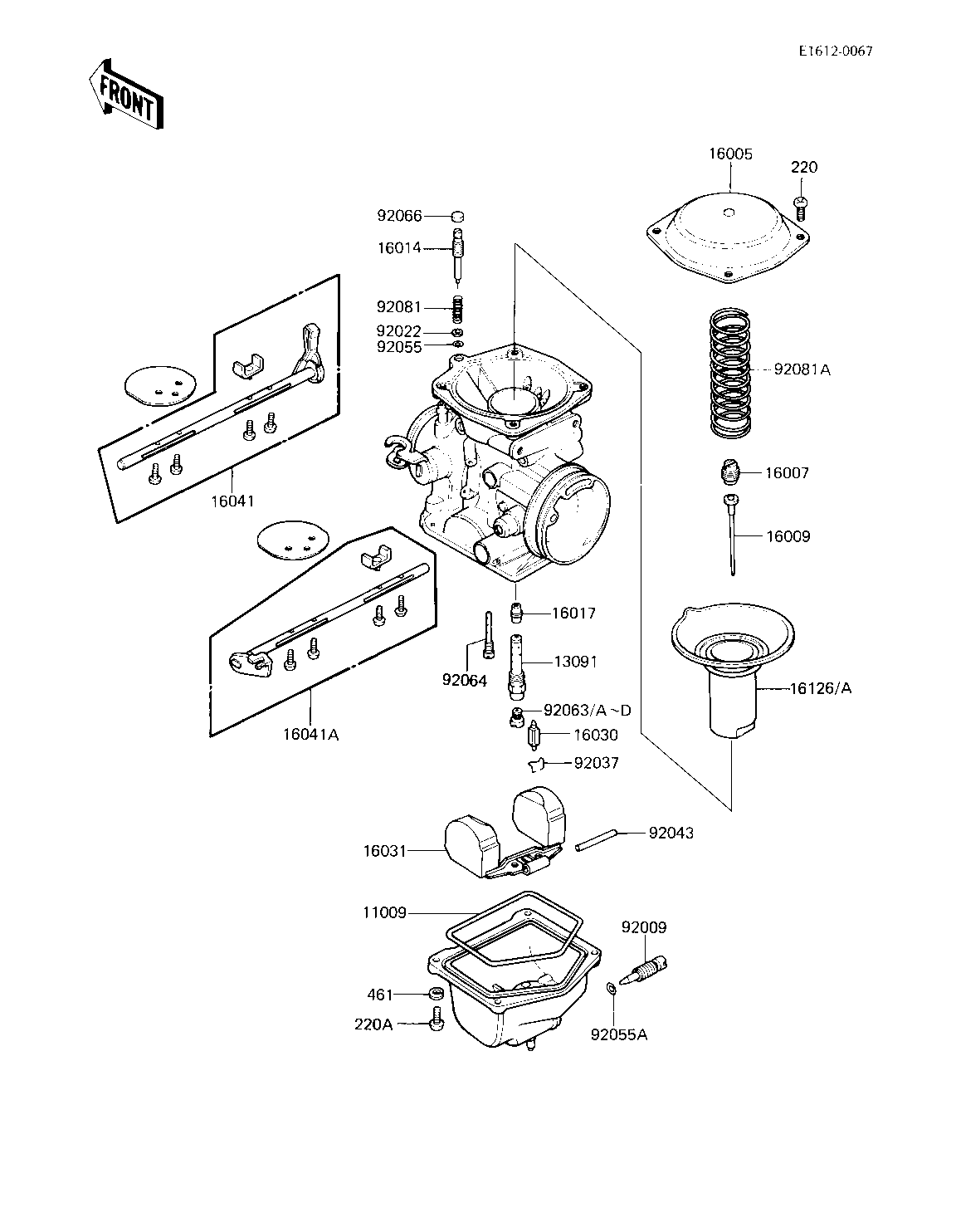

1983 LTD Shaft - CARBURETOR PARTS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
"O" RING,FLOAT BALL 11009 16019-024 4
HOLDER,NEEDLE JET 13091 13091-1192 4
TOP,MIXING CHAMBER 16005 16005-1012 4
SCREW,NEEDLE SET 16007 16007-1022 4
NEEDLE-JET,N10C 16009 16009-1142 4
SCREW,PILOT ADJUST 16014 16014-1011 4
NEEDLE JET 16017 16017-1059 4
FLOAT VALVE 16030 16030-1007 4
FLOAT 16031 16031-1023 4
SHAFT,CHOKE,L.H 16041 16041-1022 1
SHAFT,CHOKE 16041A 16041-1023 1
VALVE 16126 16126-1057 4 CN
VALVE 16126A 16126-1057 4 US
SCREW,DRAIN 92009 92009-1095 4
WASHER,PLAIN 92022 92022-1003 4
CLIP,FLOAT VALVE 92037 16044-007 4
FLOAT PIN 92043 92043-1002 4
O RING,PILOT ADJ 92055 92055-1002 4
"O" RING,DRAIN SCREW 92055A 92055-1053 4
MAIN JET,2ND,#95 92063 92063-1001 4 RACING USE ONLY
MAIN JET,#2ND,#98 92063A 92063-1005 4 RACING USE ONLY
MAIN JET,#100 92063B 92063-1008 4
MAIN JET,#105 92063C 92063-1009 4 RACING USE ONLY
MAIN JET,2ND,#102 92063D 92063-1090 4 RACING USE ONLY
PILOT JET,#35 92064 92064-1001 4
PLUG,PILOT SCREW 92066 92066-1051 4 US
SPRING,PIROT ADJ SCRW 92081 92081-1002 4
SPRING,VACUUM VALVE 92081A 92081-1479 4
SCREW PAN HEAD 4X8 220 220B0408A 16
SCREW PAN HEAD 4X12 220A 220B0412A 16
WASHER SPRING 4MM 461 461F0400 16
