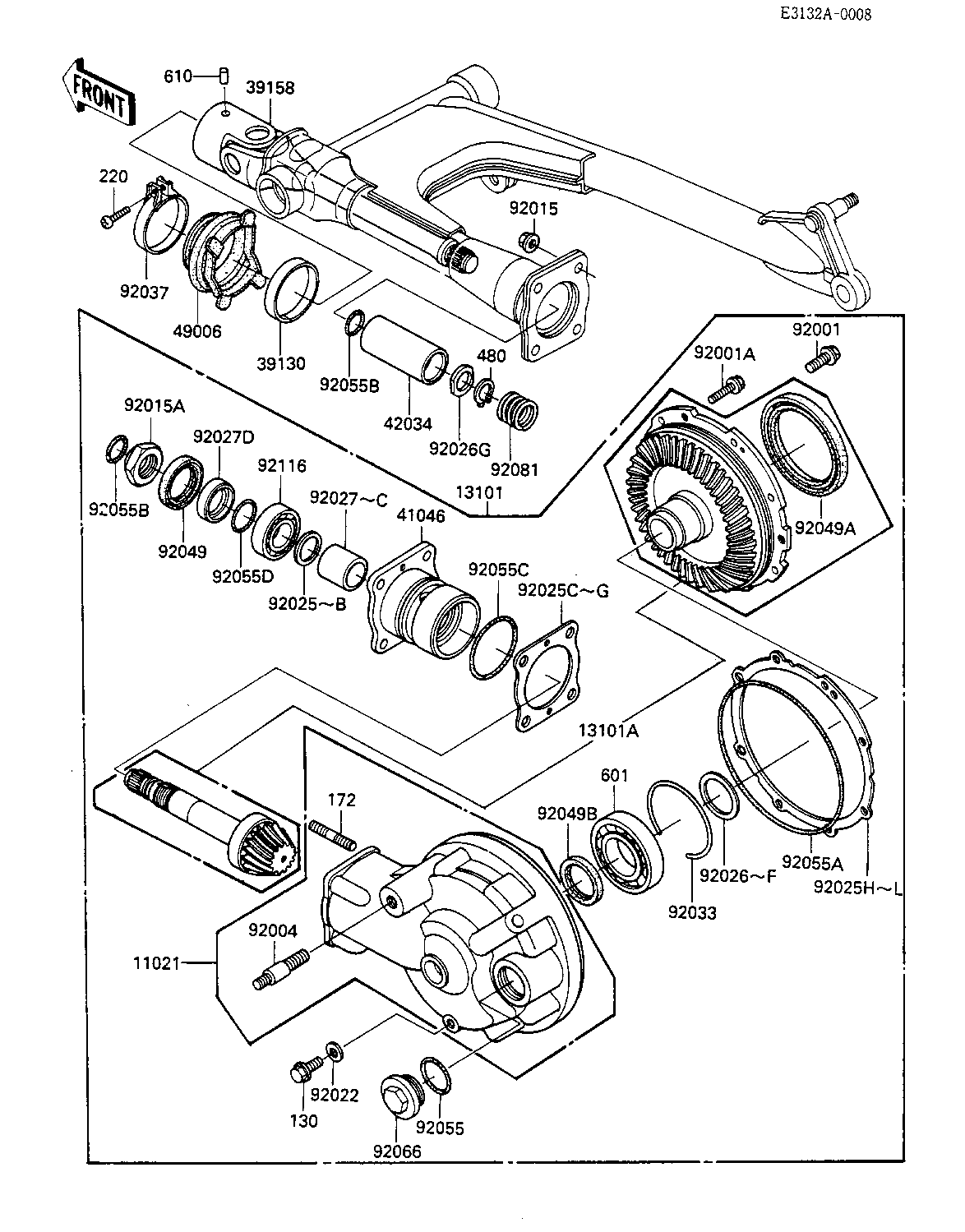

1983 Spectre - DRIVE SHAFT/FINAL GEARS (KZ550-F2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| RING-SNAP,70MM | 92033 | 92033-1093 | 1 | ||
| CLAMP,BOOT FITTING | 92037 | 92037-1112 | 1 | ||
| OIL SEAL | 92049 | 92049-1025 | 1 | ||
| SEAL-OIL,SC759510 | 92049A | 92049-1085 | 1 | ||
| SEAL-OIL,SC32435.5 | 92049B | 92049-1155 | 1 | ||
| "O" RING,VLV ADJUST | 92055 | 92055-1005 | 1 | ||
| "0" RING,I.D=150.4MM | 92055A | 92055-1039 | 1 | ||
| "0" RING,I.D=18.64MM | 92055B | 92055-1044 | 2 | ||
| RING-0,55MM | 92055C | 92055-1120 | 1 | ||
| RING-0.24.7MM | 92055D | 92055-1160 | 1 | ||
| PLUG,OIL FILLER CAP,M | 92066 | 92066-1006-7J | 1 | ||
| SPRING,DRIVE SHAFT | 92081 | 92081-1717 | 1 | ||
| BRG,ROLLER,4T-32005 | 92116 | 92116-1004 | 1 | ||
| BOLT, FLANGED,8X12 | 130 | 130B0812 | 1 | ||
| STUD 8X30 | 172 | 172G0830 | 4 | ||
| SCREW-PAN-CROS | 220 | 220B0430 | 1 | ||
| CIRCLIP 16MM | 480 | 480J1600 | 1 | ||
| BEARING-BALL,#6007 | 601 | 601A6007 | 1 | ||
| PIN-DOWEL,4X6 | 610 | 610A0406 | 1 |
