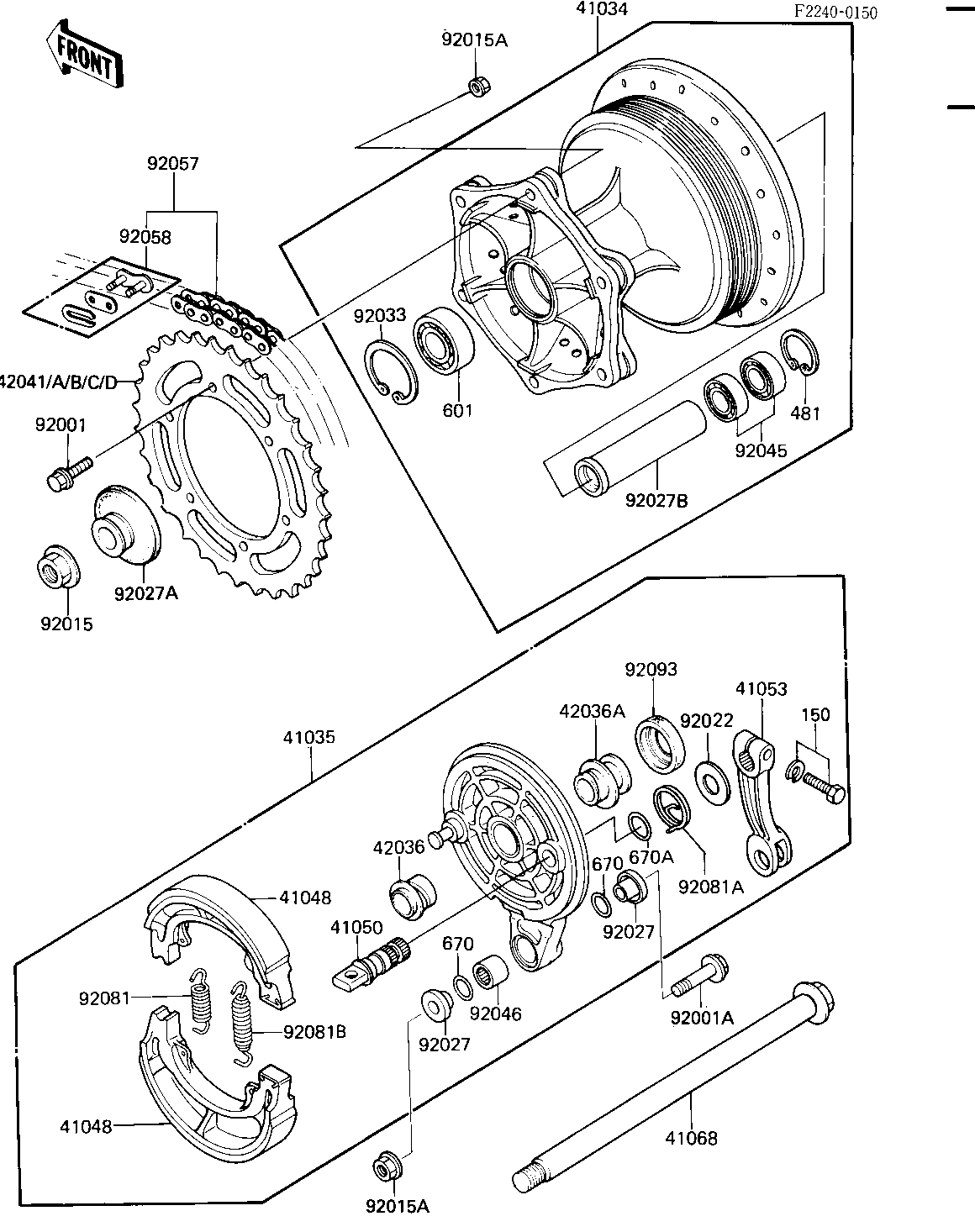

1984 KX500 - REAR HUB/BRAKE/CHAIN ('84 A2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,RR 41034 41034-1102 1
PANEL-ASSY-BRAKE,RR 41035 41035-1152 1
SHOE,BRAKE 41048 42019-010 2
CAM-BRAKE,RR 41050 41050-1027 1
LEVER-BRAKE CAM.RR 41053 41053-1034 1
AXLE,RR,L=283 41068 41068-1166 1
SLEEVE 42036 42036-1052 1
SLEEVE,RH.L=27.5 42036A 42036-1106 1
REAR SPROCKET 46T 42041 42041-1036 1
REAR SPROCKET,44T 42041A 42041-1037 1 (OPTION)
SPROCKET-HUB,48T 42041B 42041-1125 1 (OPTION)
SPROCKET-HUB,45T 42041C 42041-1179 1 (OPTION)
SPROCKET-HUB,47T 42041D 42041-1180 1 (OPTION)
BOLT-HEX HEAD,8X28 92001 92001-104 6
BOLT 92001A 92001-1578 1
NUT,16M/M 92015 92015-1015 1
NUT-8MM 92015A 92015-1143 7
WASHER,14X30X0.8 92022 92022-1402 1
COLLAR 92027 92027-1040 2
COLLAR,L=23.5 92027A 92027-1543 1
COLLAR,L=99 92027B 92027-1748 1
RING, SNAP,43.5M/M 92033 92033-1040 1
BEARING-BALL,#6003UC3 92045 601B6003U 2
BEARING,NEEDLE 92046 92046-1009 1
CHAIN,DRIVE,DID520DS 92057 92057-1073 1
JOINT,DRIVE CHAIN 92058 92058-1013 1
SPRING,BRAKE SHOE 92081 92081-1766 1
SPRING,BRAKE LEVER 92081A 92081-1520 1
SPRING,BRAKE SHOE 92081B 92081-1550 1
OIL SEAL 92093 92093-1004 1
BOLT-WS 150 150G0622 1
CIRCLIP,35MM 481 481J3500 1
BEARING BALL 601 601B6203U 1
"O" RING 670 670B2011 2
"O" RING,15MM 670A 670B2015 1
