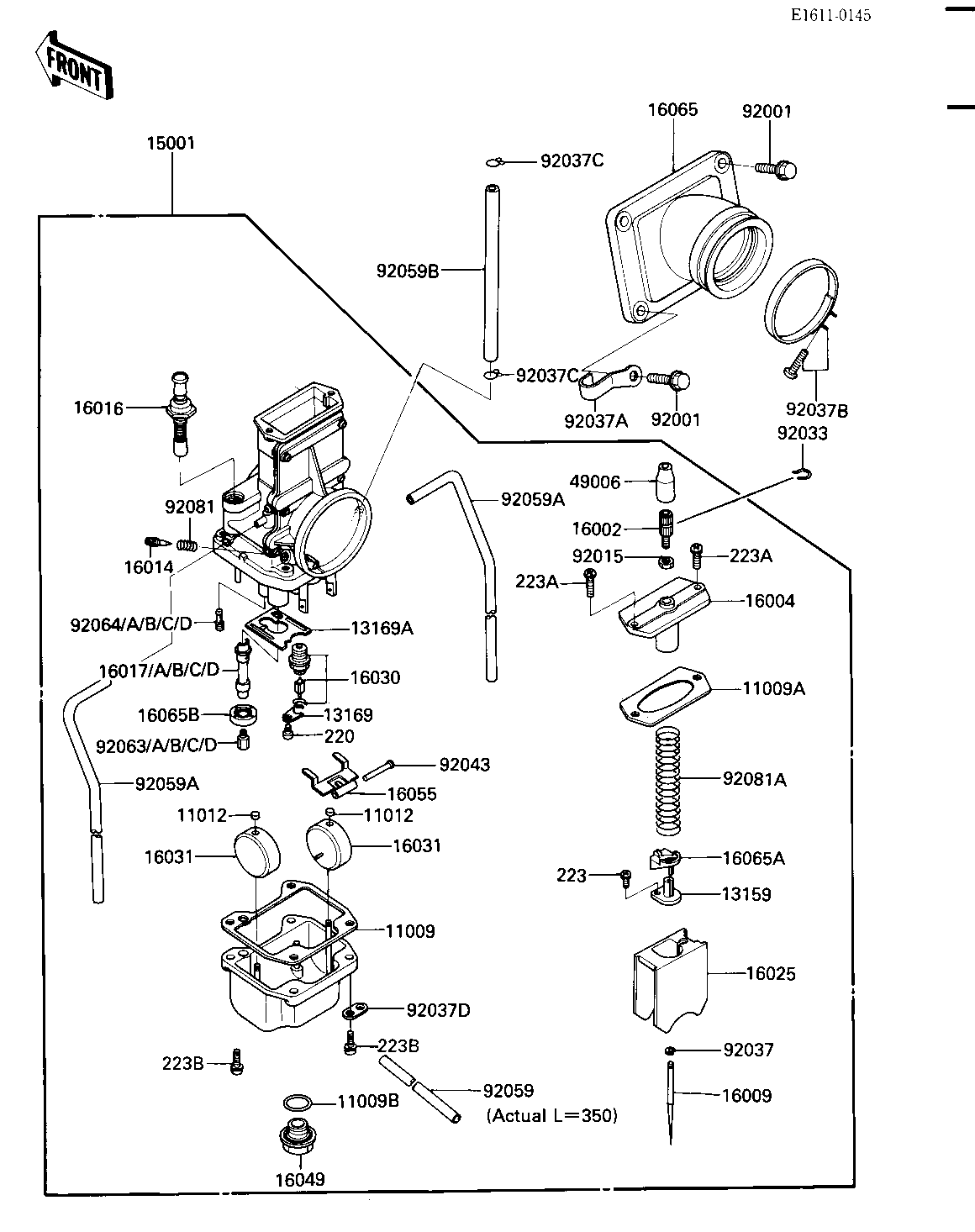

1984 KX500 - CARBURETOR ('84 A2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT CHAMBER 11009 11009-1275 1
GASKET,CHAMBER CAP 11009A 11009-1406 1
GASKET-COVER 11009B 16038-009 1
CAP,FLOAT 11012 11012-1047 2
CONNECTOR 13159 13159-1051 1
PLATE, LOCK 13169 13169-1190 1
PLATE,FLOAT CHAMBER 13169A 13169-1807 1
CARBURETOR 15001 16001-1923 1
CABLE ADJUSTER 16002 16002-011 1
CAP-CHAMBER,MIXING 16004 16004-1051 1
NEEDLE-JET,6EL4 16009 16009-1224 1
SCREW-PILOT AIR 16014 16014-1031 1
PLUNGER,STARTER 16016 16016-1026 1
JET-NEEDLE,R-6 16017 16017-1214 1 (OPTION)
JET-NEEDLE,R-8 16017A 16017-1233 1 (OPTION)
JET-NEEDLE,R-2 16017B 16017-1234 1 (OPTION)
JET-NEEDLE,R-0 16017C 16017-1235 1 (OPTION)
JET-NEEDLE,R-4 16017D 16017-1236 1
VALVE-THROTTLE,CA2.0 16025 16025-1104 1
VALVE-FLOAT,3.3 16030 16030-1020 1
FLOAT 16031 16031-029 2
COVER,MAIN JET 16049 16049-006 1
ARM,FLOAT 16055 16055-009 1
HOLDER-CARBURETOR 16065 16065-1101 1
HOLDER-CARBURETOR,THR 16065A 16065-1113 1
HOLDER-CARBURETOR,NEE 16065B 16065-1114 1
BOOT,CARBURETOR 49006 49006-1169 1
BOLT-FLANGED-SMALL 92001 132G0620 4
NUT-CABLE ADJUST LOCK 92015 16003-006 1
CIRCLIP 92033 92036-018 1
CIRCLIP 92037 16008-010 1
CLAMP CABLE 92037A 92037-016 1
CLAMP,CARBURETOR HOLD 92037B 92037-1313 1
CLAMP,CHAIN OILER 92037C 92037-147 2
CLAMP 92037D 92037-1474 2
PIN,FLOAT 92043 16032-008 1
TUBE,3.5X6.5X350 92059 92059-1211 1
TUBE,4X7X400,OVERFLOW 92059A 92059-1292 2
TUBE,6.5X11.5X260 92059B 92059-1392 1
JET-MAIN NO 300A 92063 92063-045 1 (OPTION)
JET-MAIN NO 310A 92063A 92063-046 1 (OPTION)
JET-MAIN NO 320A 92063B 92063-047 1
JET-MAIN NO 330A 92063C 92063-048 1 (OPTION)
MAIN JET NO 340A 92063D 92063-049 1 (OPTION)
JET-PILOT NO 40 92064 92064-024 1 (OPTION)
PILOT JET #60A 92064A 92064-031 1 (OPTION)
JET-PILOT NO 45 92064B 92064-044 1 (OPTION)
PILOT JET,#50 92064C 92064-1005 1
JET-PILOT,#55 92064D 92064-1006 1 (OPTION)
SPRING-THR STOP SCREW 92081 16022-007 1
SPRING,THROTTLE VALVE 92081A 92081-1687 1
SCREW PAN HEAD 4X6 220 220B0406 1
SCREW-PAN-WS-CROS 223 223B0310 2
SCREW-PAN HEAD,4X12MM 223A 223B0412 2
SCREW-PAN-WS-CROS 223B 223B0518 4
