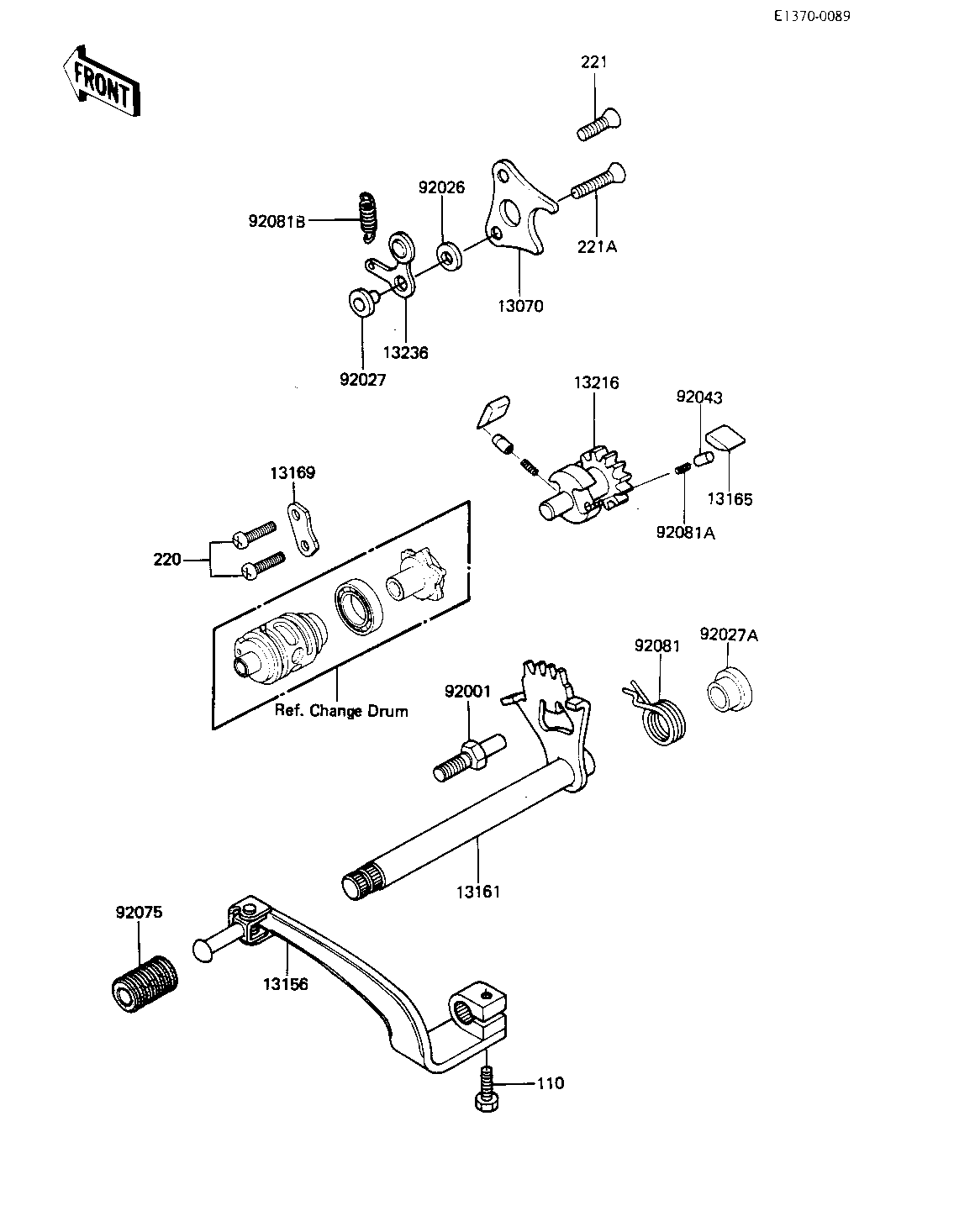

1983 KX500 - GEAR CHANGE MECHANISM ('83 A1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GUIDE,RATCHET | 13070 | 13070-1049 | 1 | ||
| LEVER-CHANGE,PEDAL | 1356 | 13156-1113 | 1 | ||
| LEVER-COMP-CHANGE SHA | 13161 | 13161-1034 | 1 | ||
| PAWL,RATCHET | 13165 | 13165-1026 | 2 | ||
| PLATE,CHANGE DRUM | 13169 | 13169-012 | 1 | ||
| RATCHET,CHANGE DRUM | 13216 | 13216-1020 | 1 | ||
| LEVER-COMP,CHANGE DRU | 13236 | 13236-1040 | 1 | ||
| BOLT,RETURN SPRING | 92001 | 92001-1401 | 1 | ||
| SPACER,6X14X2.6 | 92026 | 92026-1018 | 1 | ||
| COLLAR | 92027 | 92027-1248 | 1 | ||
| COLLAR,CHANGE SHAFT | 92027A | 92027-1465 | 1 | ||
| PIN | 92043 | 92043-1067 | 2 | ||
| DAMPER | 92075 | 92075-1310 | 1 | ||
| SPRING,TENTION | 92081 | 92081-1129 | 1 | ||
| SPRING,RATCHET PAWL | 92081A | 92081-1201 | 2 | ||
| SPRING,CHNG DRUM LEV | 92081B | 92083-012 | 1 | ||
| BOLT-UPSET | 110 | 112G0625 | 1 | ||
| SCREW PAN HEAD 6X14 | 220 | 220B0614 | 2 | ||
| SCREW CNTSNK HD 6X16 | 221 | 221B0616 | 1 | ||
| SCREW-CSK-CROS,6X22 | 221A | 221B0622 | 1 |
| GUIDE,RATCHET | |
| REF # | 13070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-CHANGE,PEDAL | |
| REF # | 1356 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-COMP-CHANGE SHA | |
| REF # | 13161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAWL,RATCHET | |
| REF # | 13165 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLATE,CHANGE DRUM | |
| REF # | 13169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RATCHET,CHANGE DRUM | |
| REF # | 13216 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-COMP,CHANGE DRU | |
| REF # | 13236 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,RETURN SPRING | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,6X14X2.6 | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,CHANGE SHAFT | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,TENTION | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,RATCHET PAWL | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,CHNG DRUM LEV | |
| REF # | 92081B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X14 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW CNTSNK HD 6X16 | |
| REF # | 221 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-CSK-CROS,6X22 | |
| REF # | 221A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
