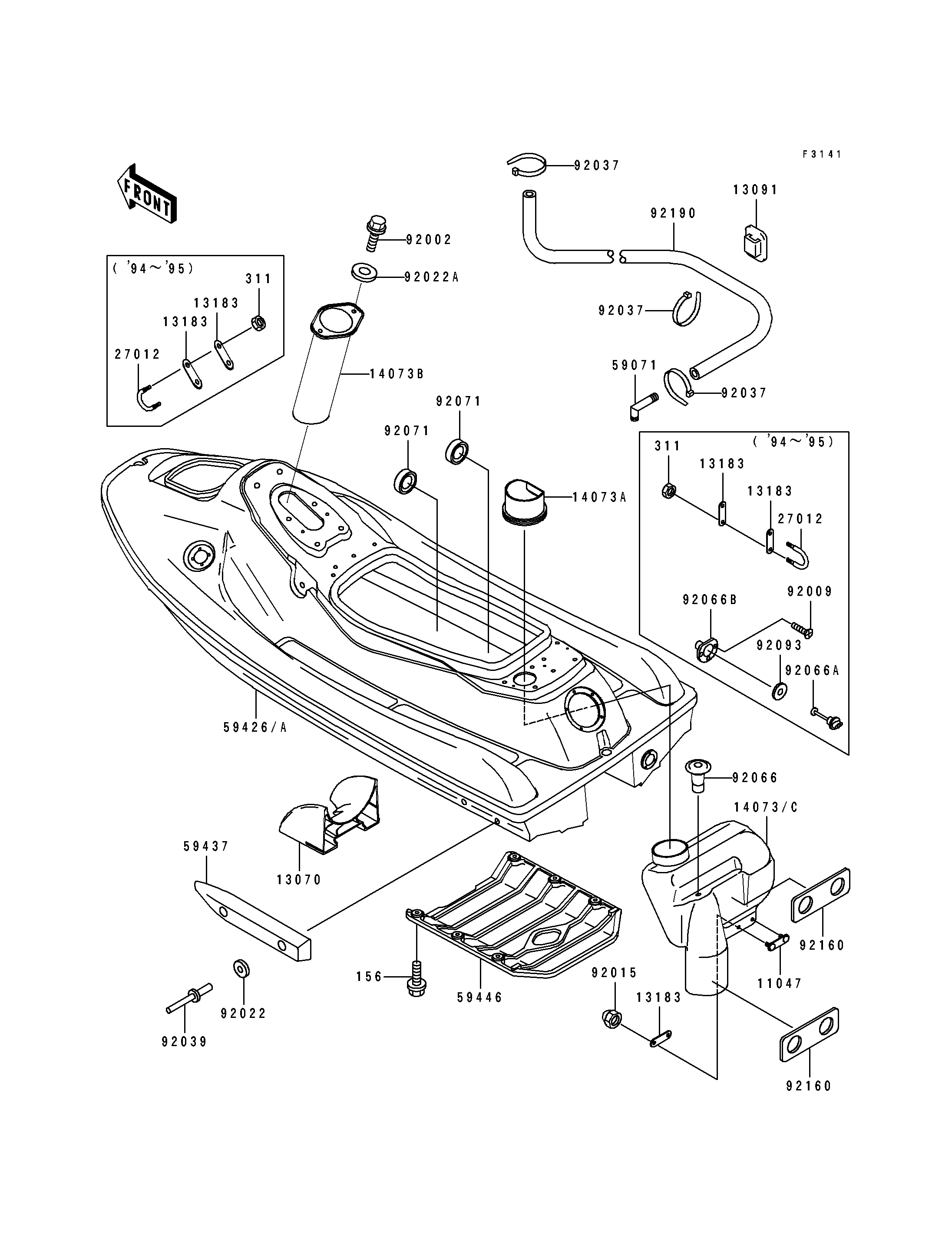

1995 Super Sport XI - Hull

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RR DUCT 11047 11047-3774 1
GUIDE,INTAKE 13070 13070-3713 1
HOLDER,BAND 13091 13091-3764 1
PLATE 13183 13183-3809 5
PLATE 13270 13270-3782 1
DUCT,INTAKE 14073A 14073-3739 1
DUCT,FR 14073B 14073-3746 1
DUCT,RR,MAIN 14073C 14073-3747 1
HOOK 27012 27012-3761 2
JOINT 59071 59071-3713 1
JOINT 59071A 59071-3733 1
HULL-COMP,J.WHITE 59426A 59426-3819-8C 1 US
STABILIZER 59437 59437-3002 2
COVER-JET PUMP 59446 59446-3723 1
BOLT,6X16 92002 92002-3728 2
SCREW,TAPPING,4X14 92009 92009-3755 3
NUT,20MM 92015 92015-3738 1
NUT,CAP,6MM 92015A 92015-3755 2
WASHER,5X16X1.5 92022 92022-3041 4
WASHER,6.5X20X1.5 92022A 92022-3710 2
CLAMP 92037 92037-1173 3
RIVET 92039 92039-3002 4
PLUG 92066 92066-3706 1
PLUG,RR,DRAIN 92066A 92066-3744 1
PLUG,RR,DRAIN 92066B 92066-3747 1
GROMMET 92071 92071-3783 2
SEAL 92093 92093-3720 1
DAMPER 92160 92160-3722 2
TUBE,5X10X1000 92190 92190-3896 1
BOLT-WP,6X20 156 156R0620 6
BOLT-WSP,5X18 157 157R0518 2
NUT-HEX,6MM 311 311R0600 4
