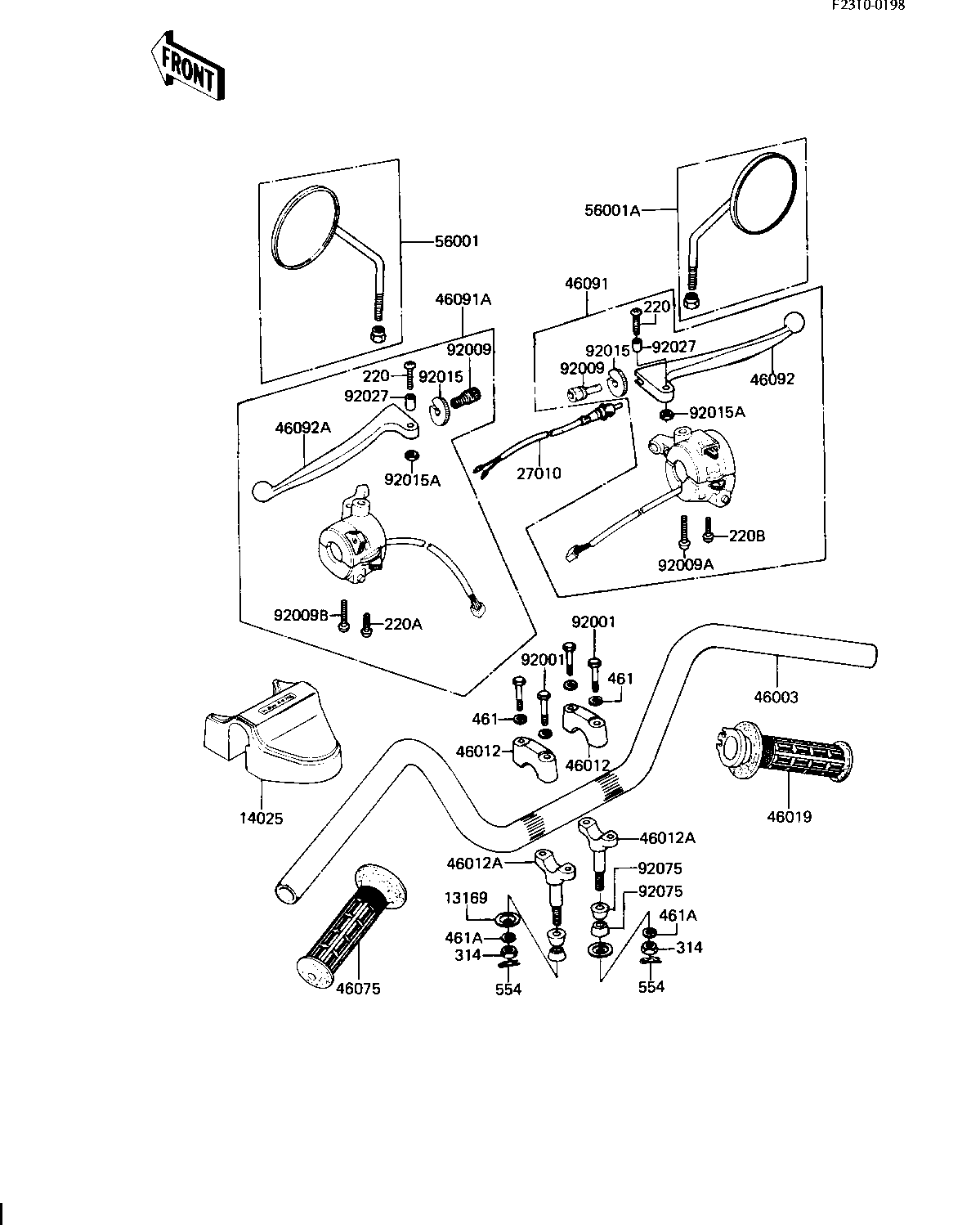

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP HANDLEBAR HOLDER | 13169 | 46016-003 | 2 | ||
| COVER,HANDLE | 14025 | 14025-1421 | 1 | ||
| SWITCH-FR. BRAKE LAMP | 27010 | 27021-004 | 1 | ||
| HANDLEBAR | 46003 | 46003-1088 | 1 | ||
| HOLDER-HANDLEBAR | 46012 | 46012-008 | 2 | ||
| HOLDER-HANDLEBAR LOW | 46012A | 46012-010 | 2 | ||
| GRIP-ASSY,THROTTLE | 46019 | 46019-1018 | 1 | ||
| GRIP,LH | 46075 | 46075-1022 | 1 | ||
| HOUSING-ASSY-CONTROL, | 46091 | 46091-1249 | 1 | ||
| HOUSING-ASSY-CONTROL, | 46091A | 46091-1250 | 1 | ||
| LEVER,FRONT BRAKE | 46092 | 46058-019 | 1 | ||
| LEVER,CLUTCH | 46092A | 46092-024 | 1 | ||
| REAR VIEW MIRROR,L.H. | 56001 | 56001-1055 | 1 | ||
| MIRROR-ASSY,RH | 56001A | 56001-1077 | 1 | ||
| BOLT 8X38 | 92001 | 92001-1405 | 4 | ||
| SCREW CABLE ADJUST | 92009 | 46055-003 | 2 | ||
| SCREW,PAN HEAD,5X48 | 92009A | 92009-1017 | 1 | ||
| SCREW,PAN HEAD,5X38 | 92009B | 92009-1018 | 1 | ||
| NUT-LOCK | 92015 | 46056-005 | 2 | ||
| NUT-LOCK,5MM | 92015A | 92019-014 | 2 | ||
| COLLAR,LEVER | 92027 | 92027-1042 | 2 | ||
| DAMPER,HANDLE HOLDER | 92075 | 92075-1448 | 4 | ||
| SCREW PAN HEAD 5X22 | 220 | 220B0522 | 2 | ||
| SCREW-PAN-CROS,5X25 | 220A | 220B0525 | 1 | ||
| SCREW PAN HEAD 5X30 | 220B | 220B0530 | 1 | ||
| NUT,10MM | 314 | 314B1000 | 2 | ||
| WASHER SPRING 8MM | 461 | 461F0800 | 4 | ||
| WASHER SPRING 10MM | 461F | 461F1000 | 2 | ||
| PIN,SNAP | 554 | 554A0800 | 2 |
