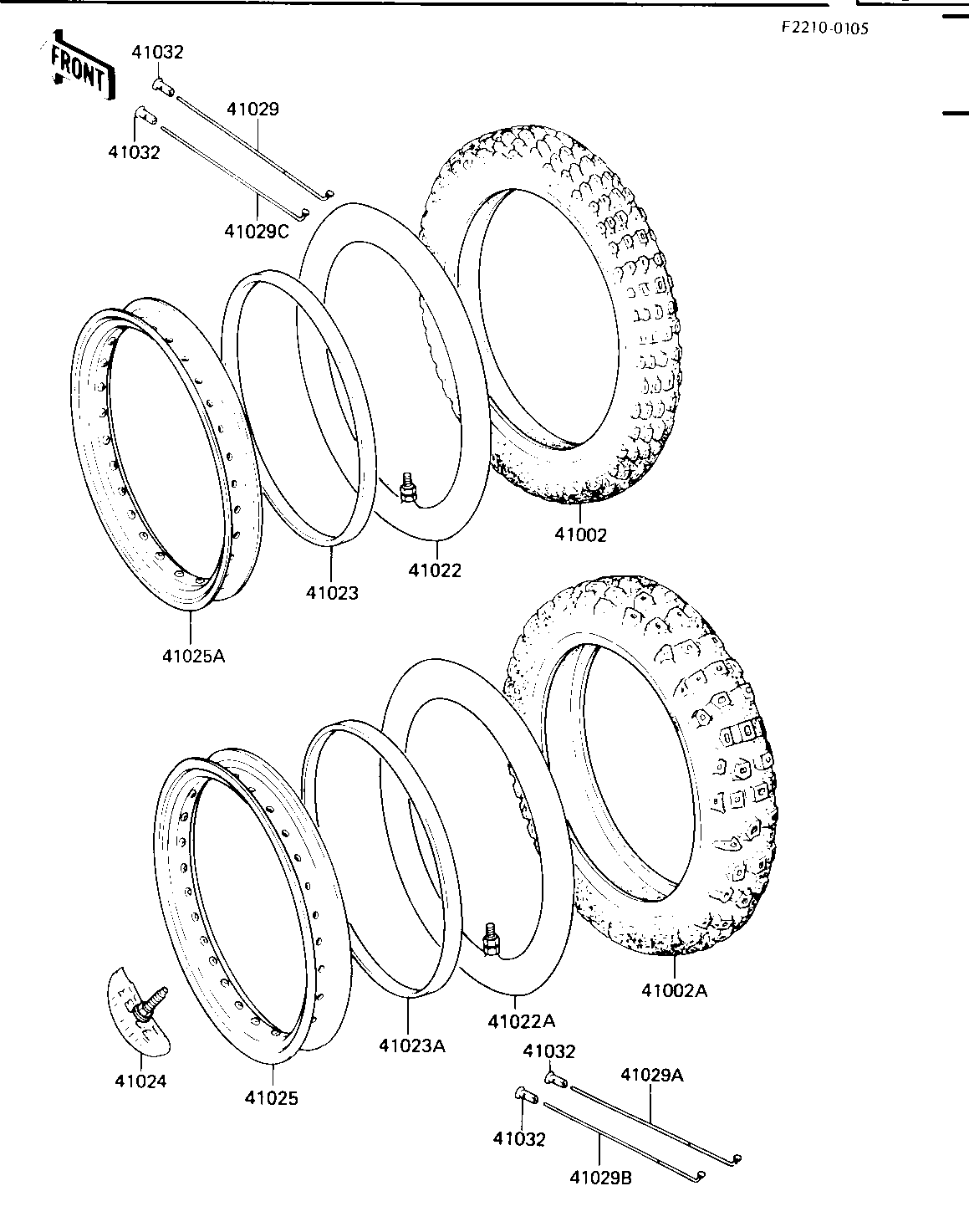

1984 KX250 - WHEELS/TIRES ('84 KX250-C2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE 300-21 K790 F | 41002 | 41002-1454 | 1 | ||
| TIRE 510-18 K790 R | 41002A | 41002-1455 | 1 | ||
| TUBE,2.75/3.70-21 | 41022 | 41022-1021 | 1 | ||
| TUBE 450/475/550-18 | 41022A | 41022-1015 | 1 | ||
| BAND,RIM,3.00-21 | 41023 | 41023-1001 | 1 | ||
| BAND,RIM,4.00/5.10-18 | 41023A | 41023-1006 | 1 | ||
| PROTECTORBEAD | 41024 | 41024-009 | 1 | ||
| RIM,RR,2.15X18E7J | 41025 | 41025-1116 | 1 | ||
| RIM,FR,1.60X21 | 41025A | 41025-1117 | 1 | ||
| SPOKE-INNER,FR,RH,225 | 41029 | 41029-1101 | 27 | ||
| SPOKE-INNER,RR,RH,171 | 41029A | 41029-1102 | 18 | ||
| SPOKE-INNER,RR,LH,190 | 41029B | 41029-1103 | 18 | ||
| SPOKE-INNER,FR,LH,232 | 41029C | 41029-1108 | 9 | ||
| NIPPLE-SPOKE | 41032 | 41032-1051 | 72 |
