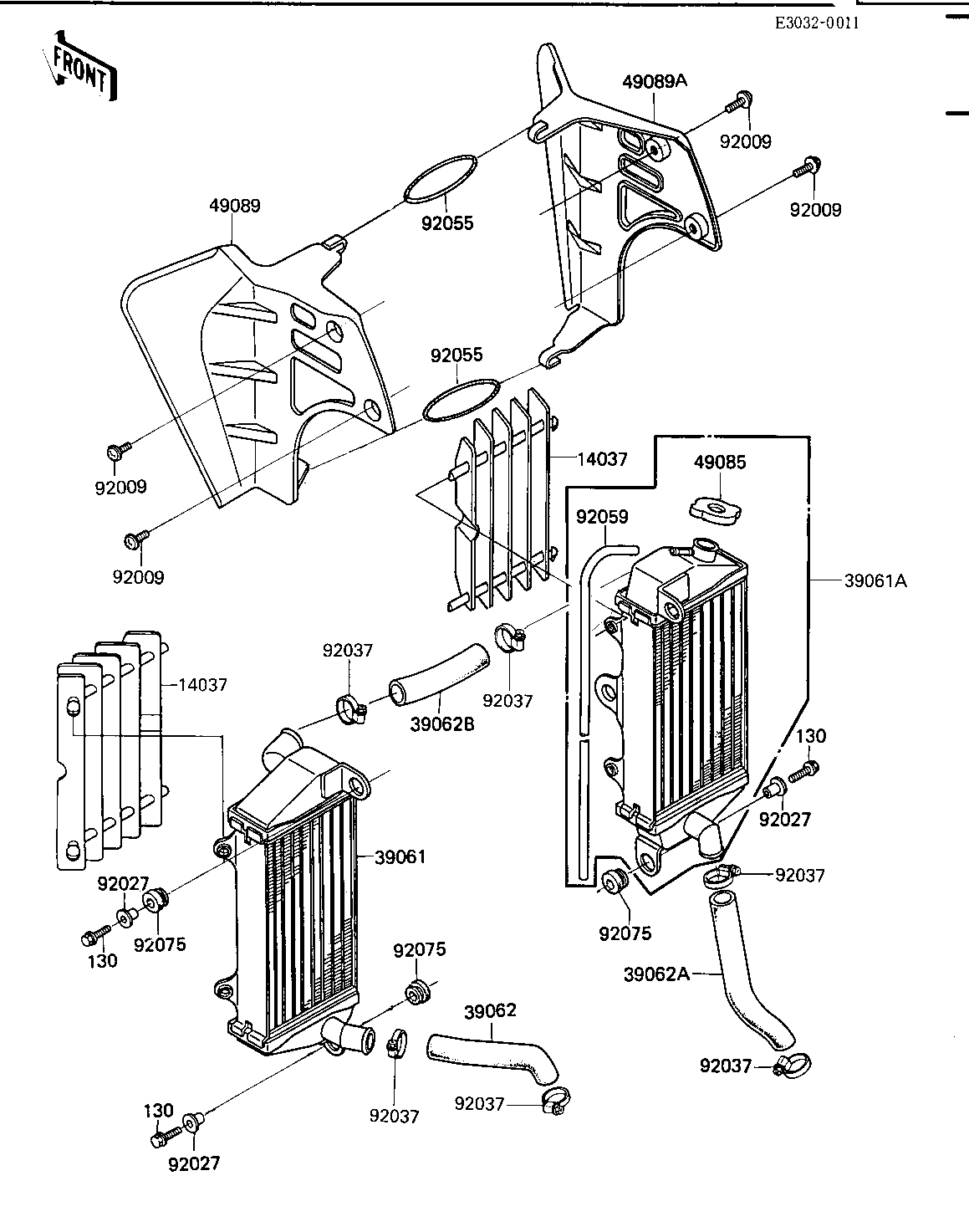

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREEN,RADIATOR,EBONY | 14037 | 14037-1077-6C | 2 | ||
| EXCHANGER-ASSY-HEAT,L | 39061 | 39061-1051 | 1 | ||
| EXCHANGER-ASSY-HEAT,R | 39061A | 39061-1052 | 1 | ||
| HOSE-COOLING,CYLINDER | 39062 | 39062-1053 | 1 | ||
| HOSE-COOLING,RADIATOR | 39062A | 39062-1054 | 1 | ||
| HOSE-COOLING,RADIATOR | 39062B | 39062-1074 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-1003 | 1 | ||
| SHROUD-ENGINE,LH,L.GR | 49089 | 49089-1051-6W | 1 | ||
| SHROUD-ENGINE,RH,L.GR | 49089A | 49089-1052-6W | 1 | ||
| SCREW,6X10 | 92009 | 92009-1286 | 4 | ||
| COLLAR,RADIATOR GUARD | 92027 | 92027-1183 | 6 | ||
| CLAMP,COOLING HOSE | 92037 | 92037-1589 | 6 | ||
| O RING | 92055 | 92055-1001 | 2 | ||
| TUBE,5X9X800 | 92059 | 92059-1383 | 1 | ||
| DAMPER,RADIATOR | 92075 | 92075-1352 | 6 | ||
| BOLT,FLANGED,6X20 | 130 | 130G0620 | 6 |
