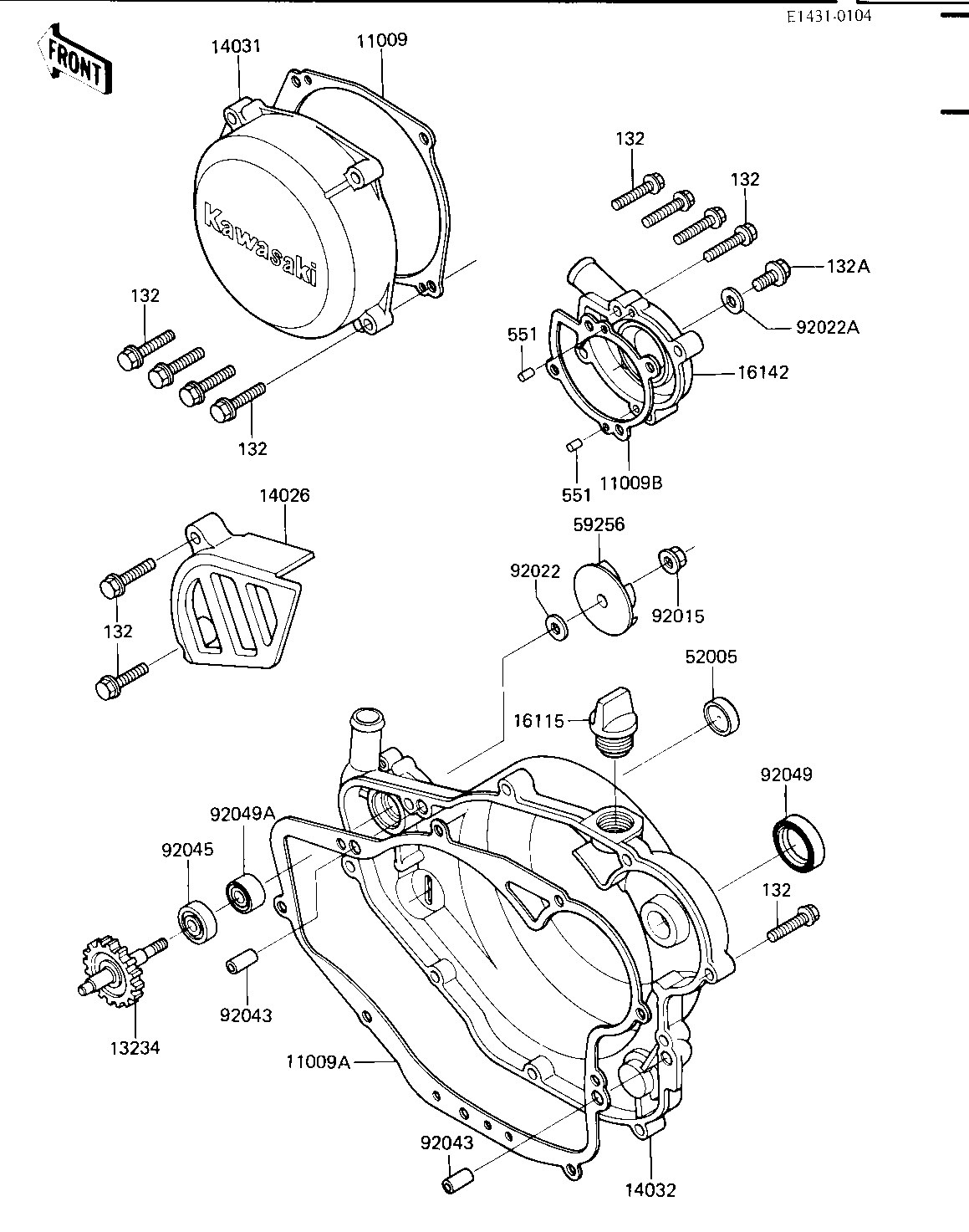

1984 KX250 - ENGINE COVERS/WATER PUMP ('84 KX250-C2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,GENERATOR COVE | 11009 | 11009-1319 | 1 | ||
| GASKET,CLUTCH COVER | 11009A | 11009-1320 | 1 | ||
| GASKET,PUMP COVER | 11009B | 11009-1321 | 1 | ||
| SHAFT-COMP,WATER PUMP | 13234 | 13234-1009 | 1 | ||
| COVER-CHAIN | 14026 | 14026-1119 | 1 | ||
| COVER-GENERATOR | 14031 | 14031-1104 | 1 | ||
| COVER-CLUTCH | 14032 | 14032-1094 | 1 | ||
| FILLER,OIL | 16115 | 16115-018 | 1 | ||
| COVER-PUMP,WATER | 16142 | 16142-1008 | 1 | ||
| GAUGE,OIL LEVEL | 52005 | 52005-1005 | 1 | ||
| IMPELLER,WATER PUMP | 59256 | 59256-1002 | 1 | ||
| NUT-6MM | 92015 | 92015-1078 | 1 | ||
| WASHER,6X14X2 | 92022 | 92022-1393 | 1 | ||
| WASHER,8.2X14X1 | 92022A | 92022-1488 | 1 | ||
| PIN-DOWEL | 92043 | 92042-007 | 2 | ||
| BEARING-BALL | 92045 | 92045-1212 | 1 | ||
| OIL SEAL,SB18307 | 92049 | 92049-013 | 1 | ||
| SEAL-OIL,MHSD8X18X10J | 92049A | 92049-1366 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0625 | 19 | ||
| BOLT-FLANGED-SMALL | 132A | 132G0810 | 1 | ||
| PIN,DOWEL,4X8 | 551 | 551A0408 | 2 |
